44
6.10 Damper
6.10.1 Basic parameters
Rated voltage: DC12V
Rated current: <60mA
6.10.2 Checking method

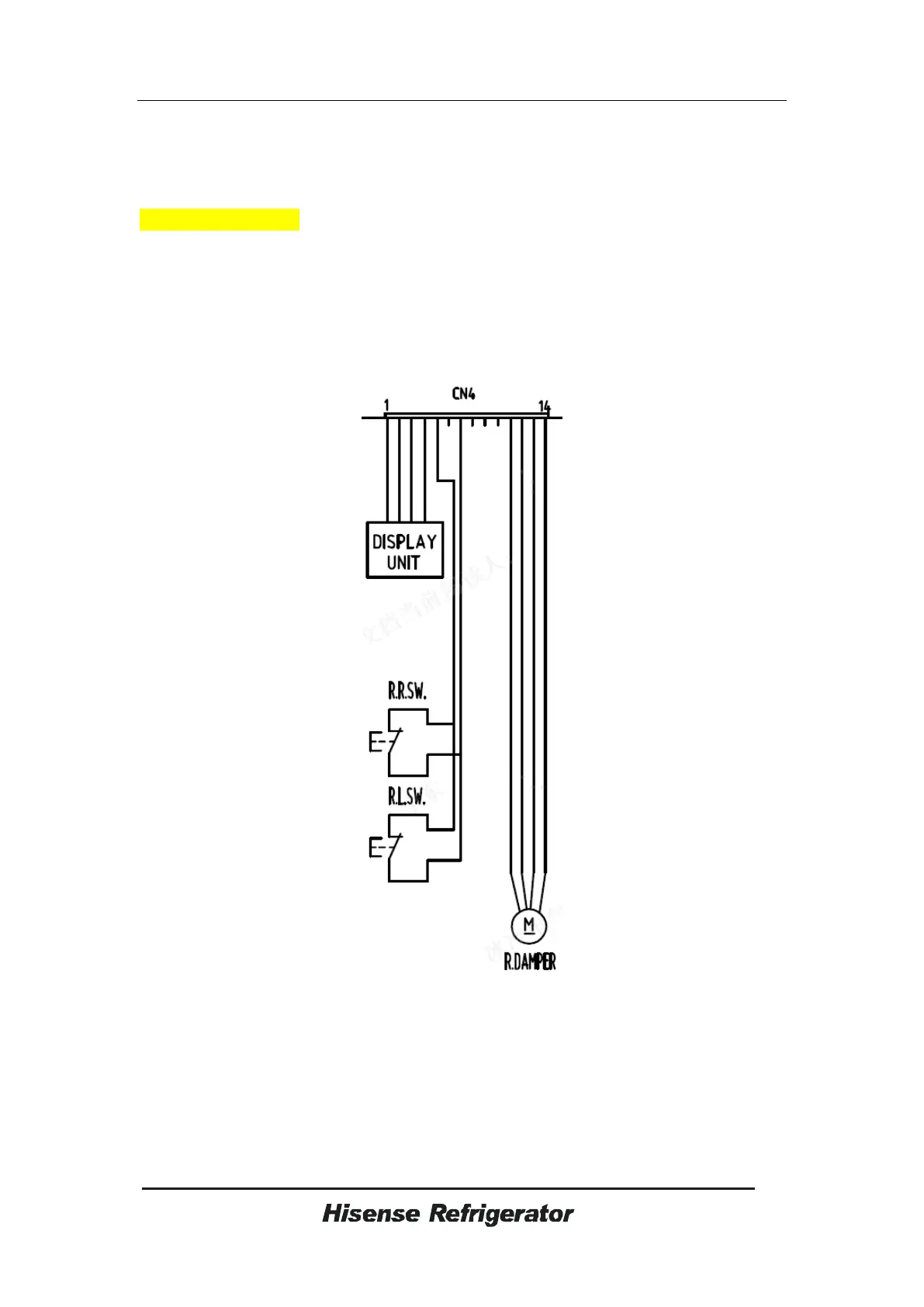

1. Check the connecting wiring of the damper is well or not, repair if it is broken. The
damper corresponding pin No.11~14 on CN4 connector of mainboard, as the drawing
below.
2. The damper will turn on and off for one time after power-on, if not, change the
mainboard first and change the damper if problem remains
6.10.3 Removing the damper
After you have removed the freezer fan motors, you can remove the damper in the
following steps:
1. Remove the drawer and wine rack from the refrigerator as picture 1.
2. Remove the two screws by screwdriver as picture 2 and take out the cover as picture 3.
3. Unplug the terminal as picture 4 and take out the wind channel component as picture 5 .
4. Remove the sponge and crepe paper as picture 6~8.
