37
6.4 Fan motor
6.4.1 Basic parameters
6.4.1.1 Freezer Fan motor(F. Fan motor)
Rated voltage: DC 12V
Rated input power: ＜2.5W
6.4.1.2 Condenser Fan motor(cond. Fan motor)
Rated voltage: DC12V
Rated input power: ＜1W
6.4.2 Checking method [Fan motor(F. Fan motor)]
6.4.2.1 Fan motor(F. Fan motor)
1. Check the connecting wiring of fan motor is well or not, repair if it is broken. The freezer fan
motor corresponding pin No.1~3 on CN9 connector of main control board.
2. Pin No.1 connect 12V power and pin No.2 connect GND. If the freezer fan motor works
normally, change the main control board; If not, change the fan motor.
6.4.2.2 Fan motor (cond. Fan motor)
1.Check the connecting wiring of cond.fan motor is well or not, repair if it is broken. The cond.
fan motor corresponding pin No.1~3 on CN5 connector of main control board.
2. Pin No.3 connect 12V power and pin No.2 connect GND. If the cond. fan motor works
normally, change the main control board; If not, change the cond. fan motor.
6.4.3 Removing the fan motor
6.4.3.1 Removing the freezer fan motor
1. Unplug the appliance.
2. Open the freezer door and remove the drawers.

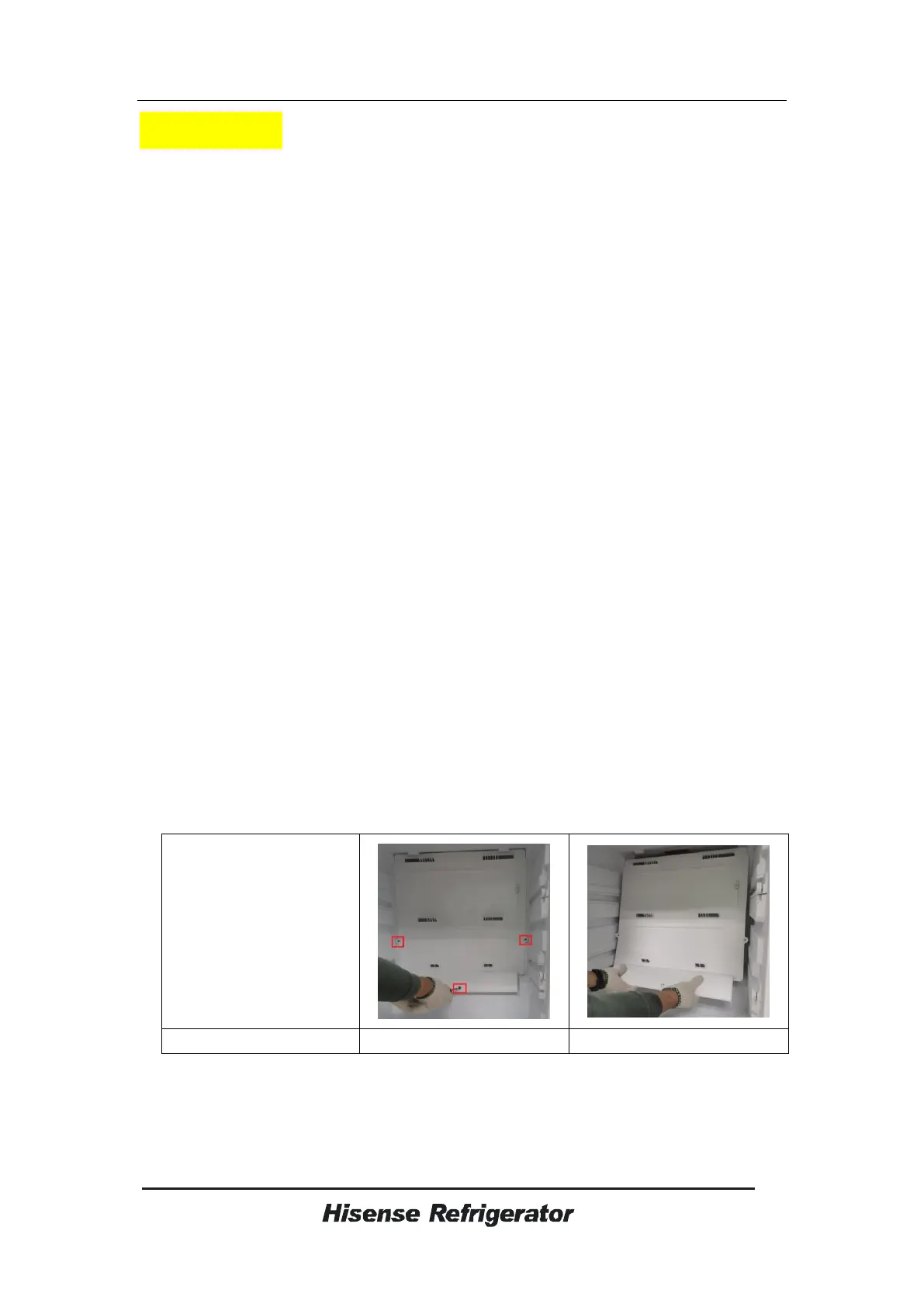

3. Remove the three screws by screwdriver as picture 1.
4. Catch the below of the wind channel component and pull down it as picture 2
5. Unplug the terminal as picture 3 and remove the wind channel component as picture 4.
6. Loosen the cable as picture 5.
7. Open buckles then separate two part of the wind channel component as picture 6 and 7
8. Pull out the fan motor as picture 8.
To Next Page
