6.5 Light
6.5.1 Basic parameters
Rated voltage:DC12V
Rated power:3W
6.5.2 Checking method
1. Check the connecting wiring between light and main control board is well or not, repair
if it is broken. Refrigerator light corresponding pin No.4 and No.5 on CN9 connector of
mainboard.
2. Check output voltage corresponding light of the main control board, if it is 12V,it means
the mainboard is OK, change the light; If not, it means the main control board is broken,
change it.
6.5.3 Removing the light
1. Unplug the appliance

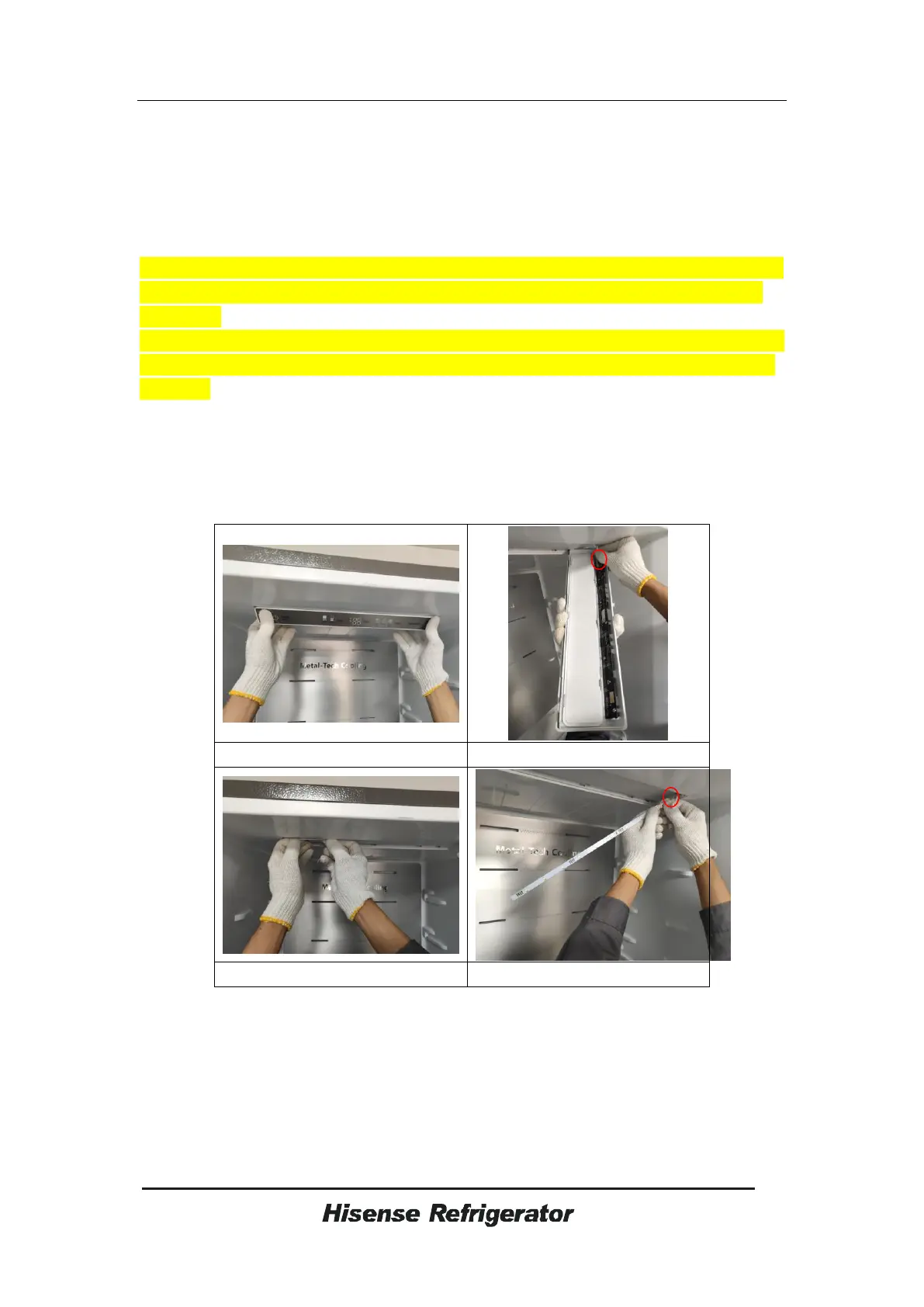

2. Catch the light cover with two hands and pull down it as picture 1.
3. Unplug the terminal of the display panel as picture 2.
4. Take the LED light out and unplug the terminal as picture 3 and 4
