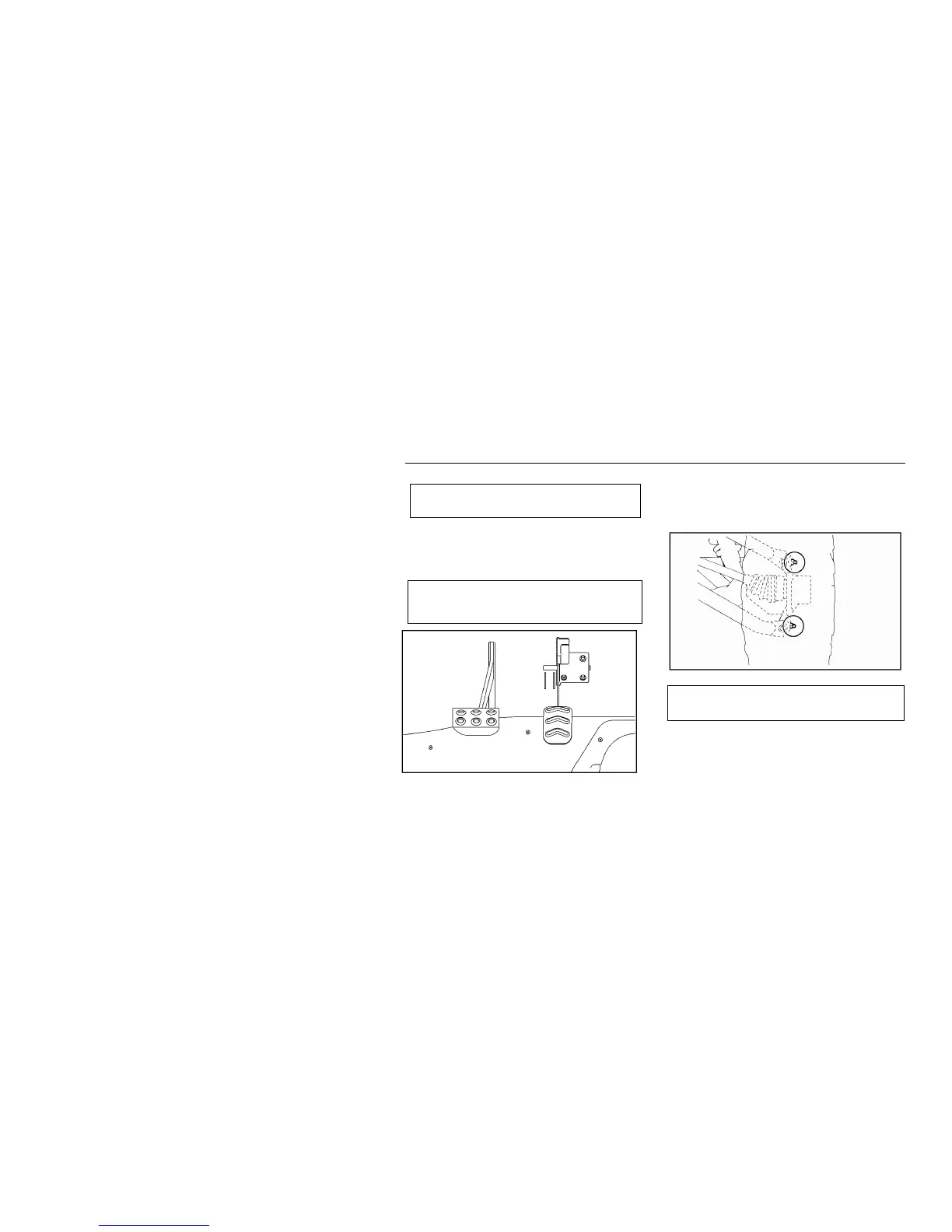

8-37 Periodic
Maintenance
and
Adjustment
Recommended lubricant:
Engine
oil
：
see page 10-2
Brake Pedal and Accelerator Pedal
Lubrication
Lubricate the pivoting parts.
Recommended lubricant:
Lithium-based
grease
(all-purpose
grease)
Rear Knuckle Upper and Lower Pivot
Lubrication
Lubricate the knuckle upper and lower pivots
with a grease gun.
Recommended lubricant:
Lithium-based grease
136
138
Table of Contents
Default Chapter
6
Table of Contents
6
1 Location of the Warning and Safety Labels
10
2 Safety Information
16
3 Description and Vehicle Identification
20
Identification Number Records
22
Vehicle Identification Number
22
4 Control Functions
23
Ignition Switch
23
Indicator and Warning Lights
24
Speedometer Unit
26
Odometer and Trip Meter Modes
27
Clock Time Adjustment
28
Four-Wheel Drive Indicator
28
Differential Gear Lock Indicator
28
Fault Code Indicator
29
Switches
31
On-Command Four-Wheel-Drive and Differential Gear Lock Switches
32
Throttle Pedal
36
Brake Pedal
37
Parking Brake Pedal
37
Drive Select Lever
38
Fuel Tank Cap
39
Seats
40
Seat Belts
41
Glove Compartment
43
Cargo Bed
44
Opening and Closing the Tailgate
45
Lifting and Lowering the Cargo Bed
45
Front and Rear Shock Adjustment
47
Trailer Hitch Bracket
53
Auxiliary DC Jack
54
Pre-Operation Checks
57
Brakes
57
Front and Rear Brakes Brake Pedal
57
Brake Fluid Level
58
Brake Fluid Leakage
58
Brake Operation
58
Fuel
59
Gasohol
60
Engine Oil
61
Coolant
61
Final Gear Oil
62
Differential Gear Oil
62
Throttle Pedal
63
Throttle Freeplay
64
Throttle Freeplay Inspection
64
Throttle Freeplay Adjustment
64
Steering Wheel Inspection
65
Seat Belts
65
Fittings and Fasteners
65
Lights
65
Switches
65
How to Measure Tire Pressure
68
Tire Wear Limit
69
6 Operation
70
Starting a Cold Engine
70
Starting a Warm Engine
71
Jump Starting
71
Warming up
73
Drive Select Lever Operation and Reverse
73
Vehicle Break-In Period
75
Engine Break-In
76
Parking
77
Parking on a Slope
78
Accessories
79
Loading
80
Your Vehicle
83
Getting to Know Your Vehicle
83
Learning to Operate Your Vehicle
87
Turning Your Vehicle
88
Operating Improperly in Reverse
89
Braking
90
Going Uphill
90
Going Downhill
93
Crossing through Shallow Water
94
Vehicle Immersion
96
Front Axle Differential Lock
97
Riding over Rough Terrain
98
Riding in Brush or Wooded Areas
99
Encountering Obstacles on the Trail
100
Periodic Maintenance Chart for the Emission Control System
103
8 Periodic Maintenance and Adjustment
104
General Maintenance and Lubrication Chart
104
Hood
106
To Open
106
To Close
107
EFI System
108
EFI System Inspection
111
Engine Oil and Oil Filter Cartridge
111
To Check Engine Oil Level
111
To Change the Engine Oil (with or Without Oil Fliter Cartridge Replacement )
113
Final Gear Oil
115
Checking the Final Gear Oil Level
115
Changing the Final Gear Oil
116
Differential Gear Oil
118
Checking the Differential Gear Oil
118
Changing the Differential Gear Oil
118
Oil Cooler
120
Coolant
120
Checking the Coolant Level
120
Changing the Coolant
121
Axle Boots
122
Spark Plug Inspection
123
Removal
123
Inspection
124
Installation
124
Cleaning the Spark Arrester
129
Valve Clearance
131
Front Brake Pad Check
131
Rear Brake Pad Check
132
Checking the Brake Fluid Level
132
Brake Fluid Replacement
133
Checking the Brake Pedal
134
Brake Light Switch Adjustment
135
Cable Inspection and Lubrication
136
Brake Pedal and Accelerator Pedal Lubrication
137
Rear Knuckle Upper and Lower
137
Pivot Lubrication
137
Steering Shaft Lubrication
138
Wheel Installation
139
Battery
140
Battery Maintenance
142
Fuse Replacement
142
Replacing Headlight Bulb
145
Tail/Brake Light Bulb Replacement
147
Troubleshooting
148
Solution to Common Problems in Vehicle
150
Cleaning and Storage
163
Cleaning
163
Storage
165
Specifications
167
