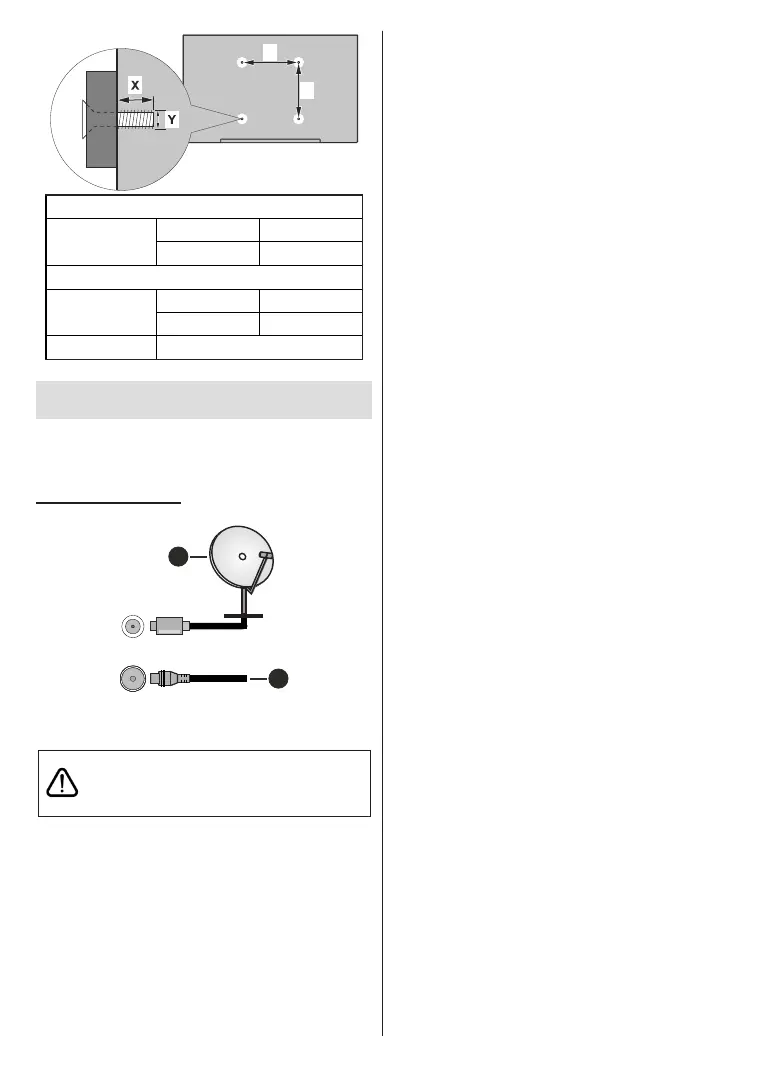

VESA WALL MOUNT MEASUREMENTS
Hole Paern
Sizes (mm)
W H
75 75
Screw Sizes
Length (X)
min. (mm) 7
max. (mm) 8
Thread (Y) M4
Antenna Connection
Connect the aerial or cable TV plug to the AERIAL
INPUT (ANT) socket or satellite plug to the SATELLITE
INPUT (LNB) socket located on the rear side of the TV.
Rear side of the TV
1
2
LNB
ANT
1. Satellite
2. Aerial or cable
If you want to connect a device to the TV, make
󰀨
before making any connection. After the connection
is done, you can turn on the units and use them.
