Hitachi 32PD5000 - Disassembly Diagram

81
32PD5000/42PD5000
Y-SUS PWB ASS’Y
Manufactured at FHP factory.
L-ADR PWB ASS’Y
Manufactured at FHP factory.
LOGIC PWB ASS’Y
Manufactured at FHP factory.
X-SUS PWB ASS’Y
Manufactured at FHP factory.
R-ADR PWB ASS’Y
Manufactured at FHP factory.

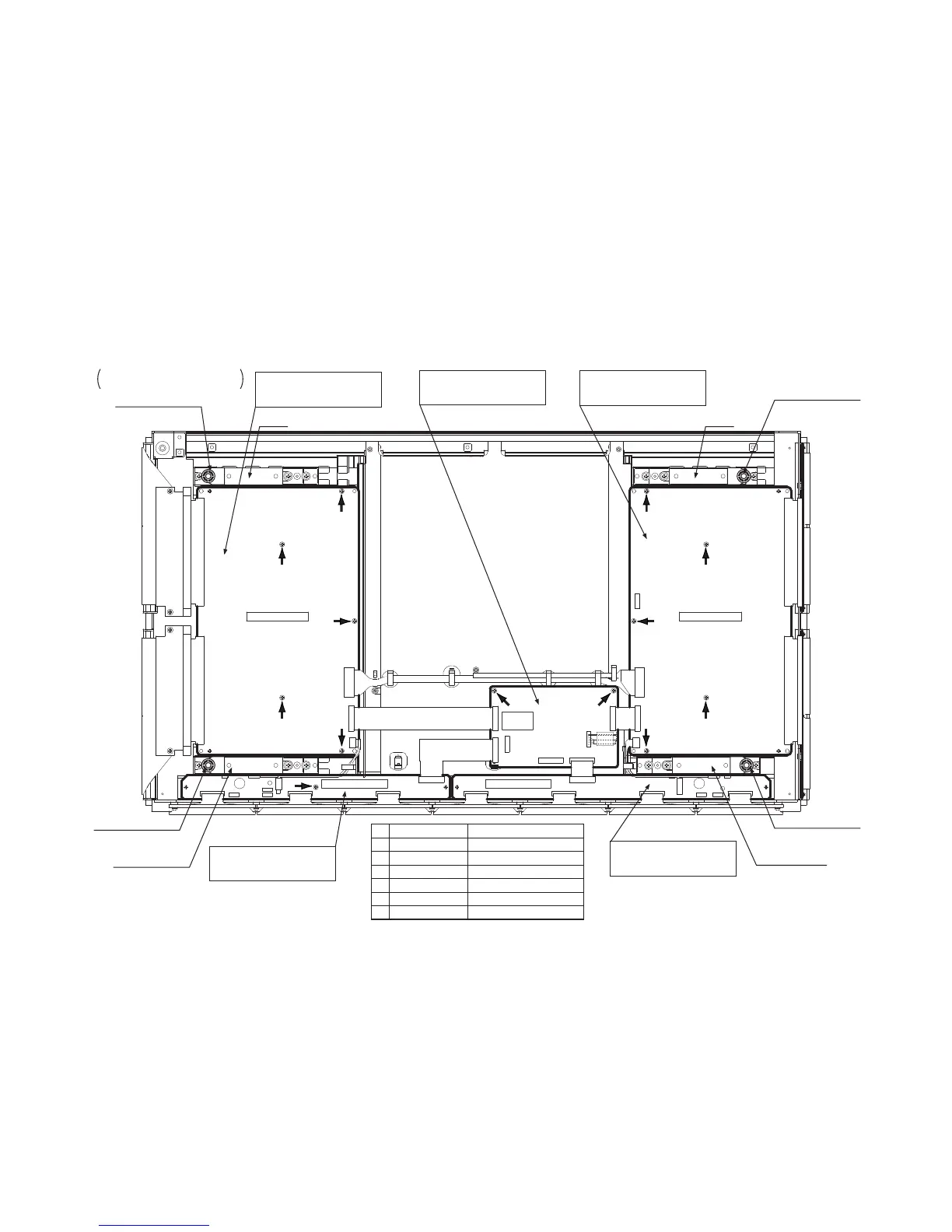

The figure of FHP Panel Module (32V)
Rear view
The state of a panel simple substance.
No. Spare Part Name FHP Spare Part#
(1) Panel Module FPF32C106128UB-55
(2) LOGIC PWB Ass’y FPF20R-LGC0001(A1 ASIC)
(3) X-SUS PWB Ass’y FPF20R-XSS0001
(4) Y-SUS PWB Ass’y FPF20R-YSS0002
(5) A-BUS L PWB Ass’y FPF20R-ABL0003
(6) A-BUS R PWB Ass’y FPF20R-ABR0004
PANEL Y-SUS PANEL X-SUS
PANEL ABUS-L PANEL ABUS-R
PANEL
LOGIC
(4)
(5)
(2)
(6)
(3)
Attachment for packing
*
Apply it before packing
this panel module.
Handle for packing
*
Apply it before packing
this panel module.
Attachment for packing
*
Apply it before packing
this panel module.
Handle for packing
*
Apply it before packing
this panel module.
Attachment for packing
*
Apply it before packing
this panel module.
Attachment for packing
*
Apply it before packing
this panel module.
Handle
Handle
14. Disassembly diagram
[32PD5000]
