ABOUT THE SYSTEM LED STATUS DESCRIPTIONS
13

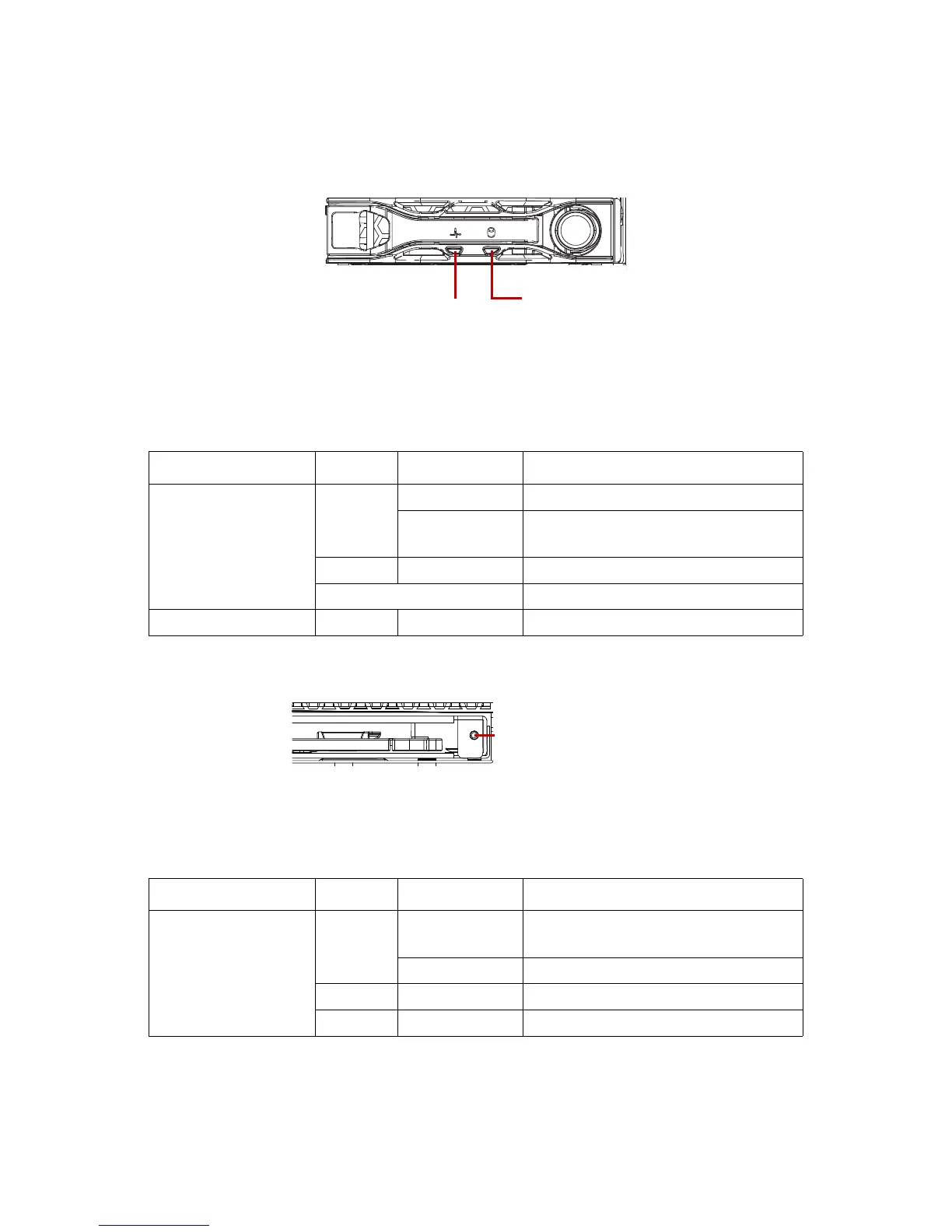

Storage Drive LED
Front 2.5” Storage Drive LED Status Behavior
Front 2.5” Storeage Drive LED Status Behavior
Figure 12.
2.5” Storage Drive LED Identification
The following LED behavior table represents LED conditions.
Figure 11. 2.5” Storage Drive LED Identification
The following
LED behavior table represents LED conditions.
Table 15: 2.5” Storage Drive LED Status Behavior
NAME COLOR CONDITION DESCRIPTIONS
Drive Status / Fault
Blue
On Drive is online
Blinking
Twice per second: Identification
Once per second: Rebuilding
Amber On HDD failure
Off Slot is empty
Drive Active Blue Blinking HDD access is active
Table 16: Storage Drive LED Status Behavior
NAME COLOR CONDITION DESCRIPTIONS
Drive Status / Fault
Blue
Blinking
Twice per second: Identification
Once per second: Rebuilding
On Drive is online
Amber HDD failure
Off Slot is empty
Status / Fault LED
Active LED
Status / Fault LED
