8-3. Confirmation for Use of Sub Fence (Standard accessory)
In the case of press cutting and miter cutting, use the sub
fence. The sub fence can be installed on the left side of the
guide fence. Insert the rods of the sub fence into the holes
in the guide fence. Tighten the 6 mm knob bolt, the 6 mm
wing bolt which come with the sub fence to secure the sub
fence. Then you can realize stable cutting of the material
with a wide back face.

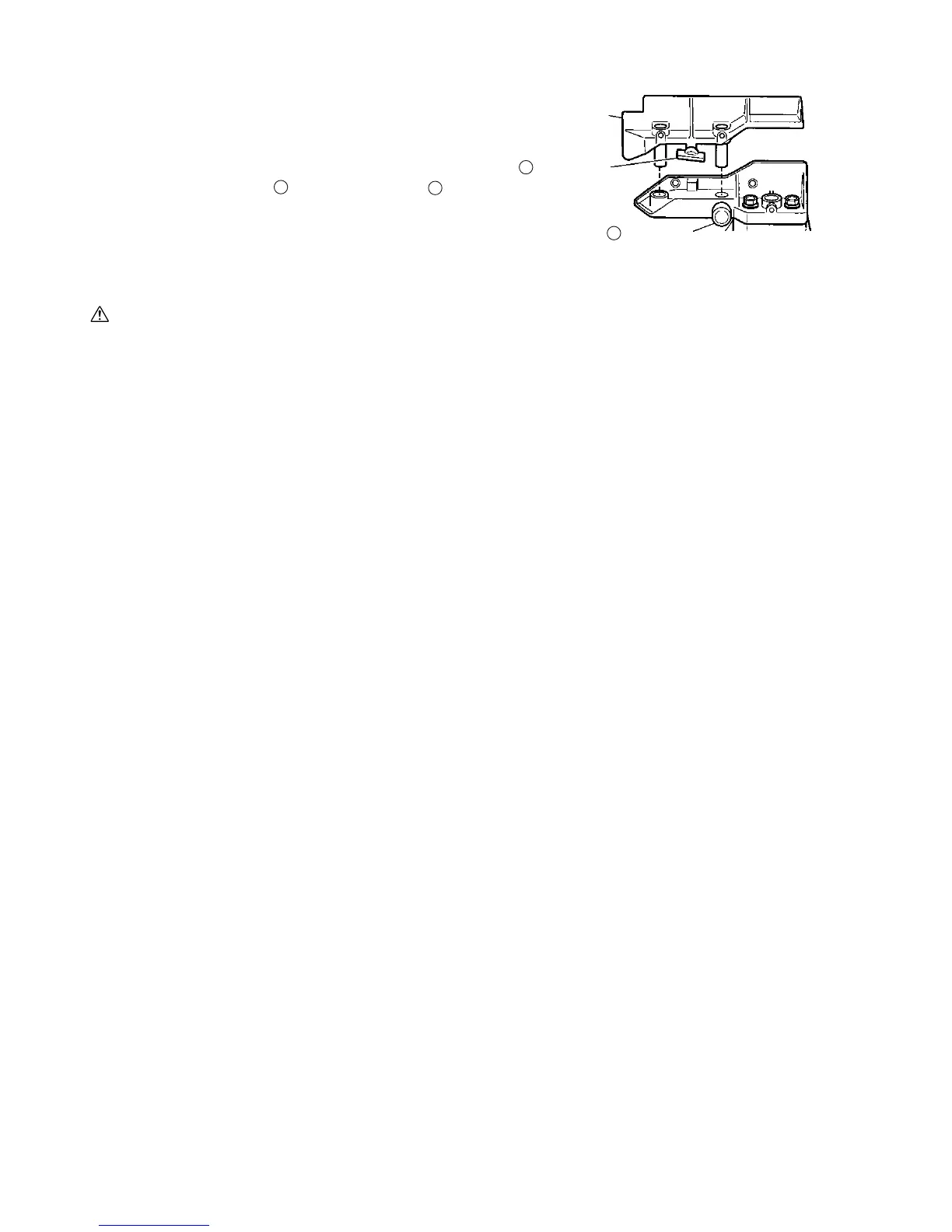

Sub fence
(standard
accessory)
6 mm wing
bolt
Fig. 14
6 mm
knob bolt
WARNING: In the case of left bevel cutting, remove sub
fence. Supposing it is not able to remove it,
it will contact the blade or some part of the tool,
causing in serious injury to operator.
Be sure to instruct the customers to remove sub
fence in the case of left bevel cutting.
