--- 19 ---
11. PRECAUTIONS IN DISASSEMBLY AND REASSEMBLY
11-1. Precautions in Disassembly and Reassembly of the Laser Marker (Only Model C 10FCH)
Do not stare into the laser emitting aperture during disassembly and reassembly of the laser marker. Do not
observe beam directly with an optical instrument. Use of controls or adjustments or performance of procedures
other than those specified in this TECHNICAL DATA AND SERVICE MANUAL and the Instruction Manual may
result in hazardous radiation exposure.
11-2. Disassembly
Special attention in disassembly should be given to the following items. The circled numbers in the figures and
the [Bold] numbers in the descriptions below correspond to the item numbers in the pars list and exploded
assembly diagram of the Model C 10FCH. For the Model C 10FCE, refer to the parts list separately.
Be sure to first disconnect the power plug when performing disassembly or replacement of the saw blade.
A. Turn table and base
Tools required:
Phillips screwdriver
Flat-blade screwdriver
Box wrench 13 mm
Box wrench 19 mm

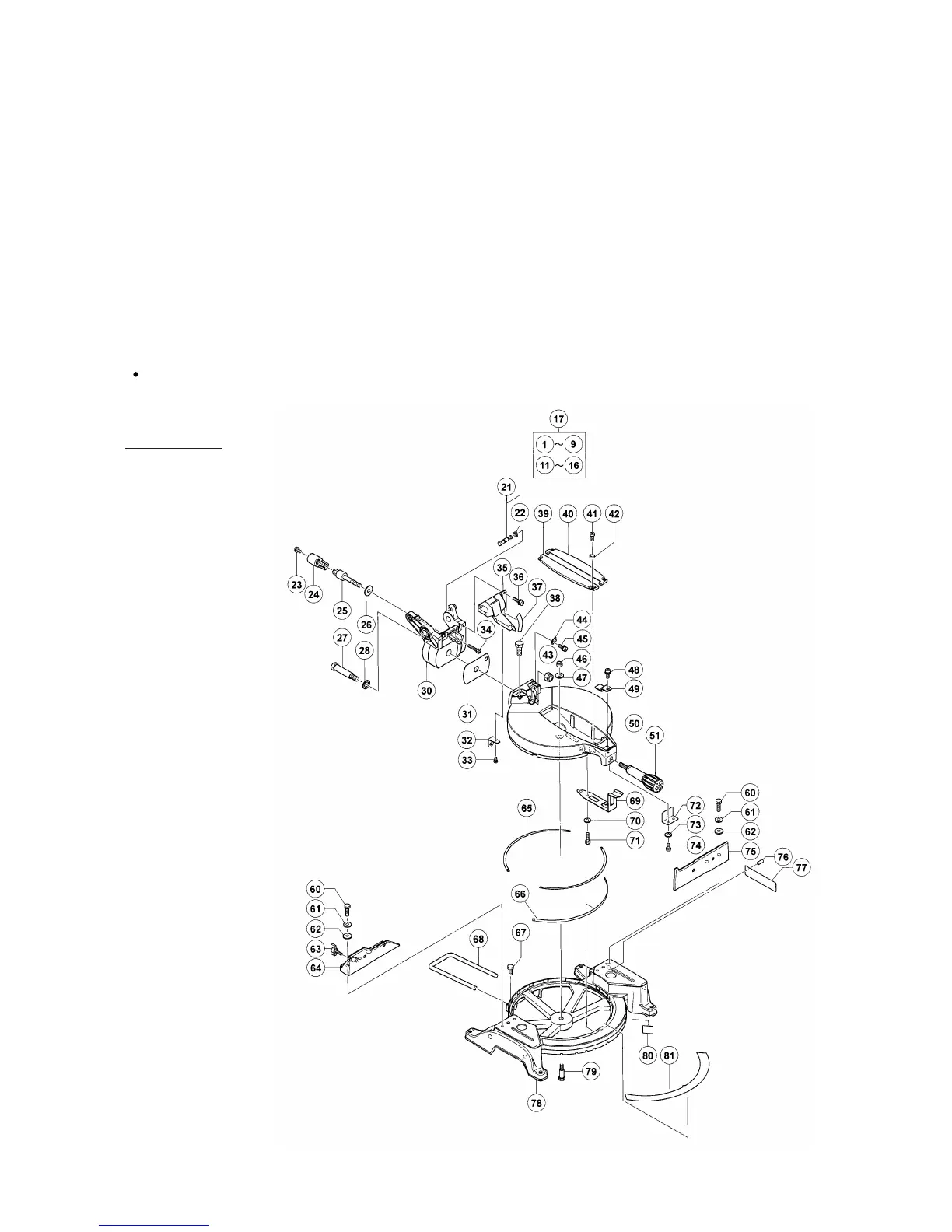

Fig. 29
