--- 27 ---
11-4. Wiring Diagram
Carefully ensure that wiring is accomplished as illustrated below. As incorrect wiring will result in lack of rotation,
reverse rotation or other malfunctions, close attention is absolutely necessary.
[WARNING] Be sure to turn off Switch (A) [145] on the side of the Switch Handle and unplug the power
cord plug from the receptacle before replacing the Laser Module [11] and the Switching
Power Supply [142]. Do not stare into beam while the laser marker is lighting.

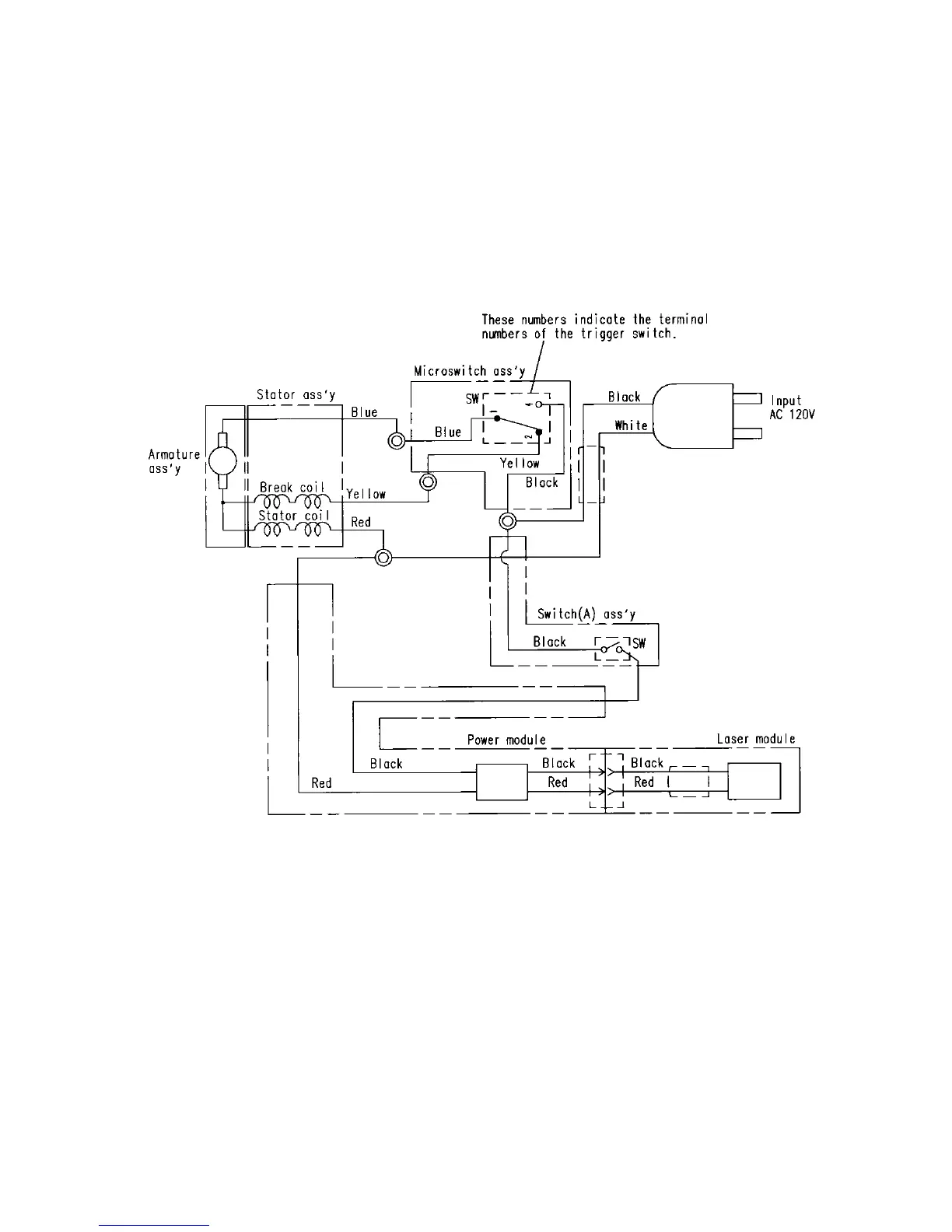

Wiring diagram (C 10FCH)
Fig. 34
To Next Page
