– 23 –
English

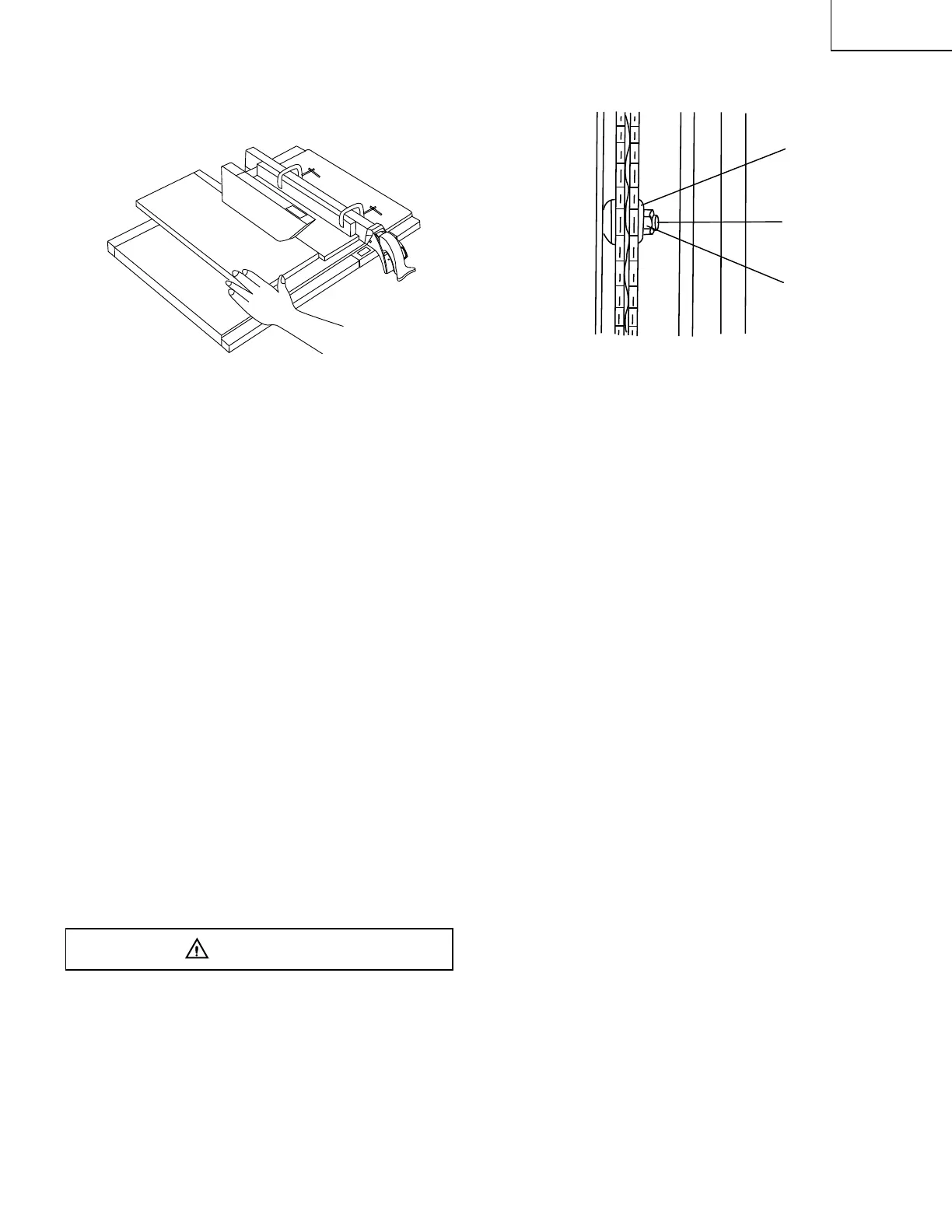

Attach auxiliary fence to rip fence with two “C”
clamps. (Fig. FF)
Fig. FF
DADO CUTS (FIG. GG)
1. The dado blade insert is included with this saw.
Remove the saw blade, original table inser and blade
guard. Install the dado and dado blade insert.
2. Instruction for operating the dado is packed with the
separately purchased dado set.
3. The arbor (1) on this saw restricts the maximum
width of the cut to 13/16” (20.6mm).
4. When making full 13/16” (20.6mm) dado cuts, it is
not necessary to install the outside flange (2) before
screwing on the arbor nut (3). Make sure that the
arbor nut (3) is tight, and that at least one thread of
the arbor sticks out past the nut.
5. Do not exceed 8” (203.2mm) diameter dadoes and
keep the width 13/16” (20.6mm) or less. It will be
necessary to remove the blade guard and splitter
when using a dado blade. Always use caution when
operating a dado blade.
6. Use only the correct number of round outside blades
and inside chippers as shown in the dado set’s
instruction manual. Blade or chipper must not exceed
13/16” (20.6mm).
7. Check saw to ensure that the dado will not strike the
housing, insert, or motor when in operation.
For your own safety, always replace the blade, blade
guard assembly, and blade insert when you are
finished with the dado operation.
Fig. GG
WARNING
2
1
3
