Hitachi C 10FSB

--- 64 ---

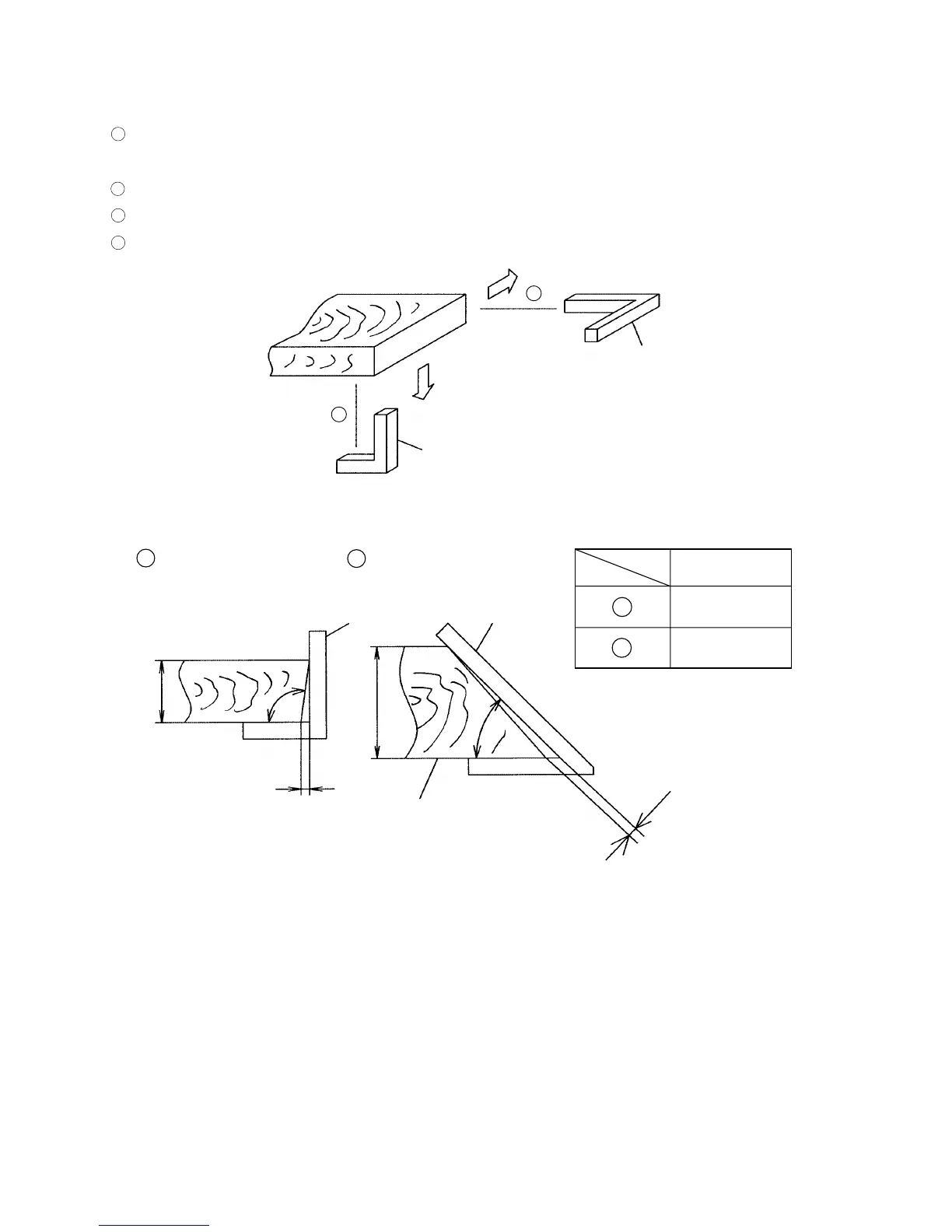

Cutting accuracy
[ A direction] [ B direction]
(3) Miter cutting
Cutting conditions:
Test piece:
Yellow pine 30 mm (1-3/16") in height, 210 mm (8-1/4") in width
•••••••••
All surfaces squarely planed.
Saw blade: 255 mm (10") TCT saw blade, number of teeth 40 (Code No. 310878A)
Cutting time: 10 sec.
Measuring points:
Square
Fig. 85
Angle gauge
30 mm
(1-3/16")
Square
Turn table mounting surface
Fence mounting surface
Square
Fence mounting surface
210 mm (8-1/4")
Fig. 86
δ
δ
45˚
1
3
2
4
A
B
Direction
Accuracy
0.06
0.6
δ (mm)
A
B
