Hitachi C 10FSH Handling Instructions

13
(2) Lower the motor head, and thrun the 8mm depth adjustment bolt by hand and
make adjustments so that there can be a clearance of 2mm to 3mm (3/32" to 1/8")
between the lower limit position of the motor head and the top of the workpiece at
the saw blade's lower limit position (where the head of the 8mm depth adjustment
bolt contacts the gear case.
(3) After adjustment, turn the 8mm wing nut until it contacts the Hinge (see Fig. 10-b),
and fully tighten it.

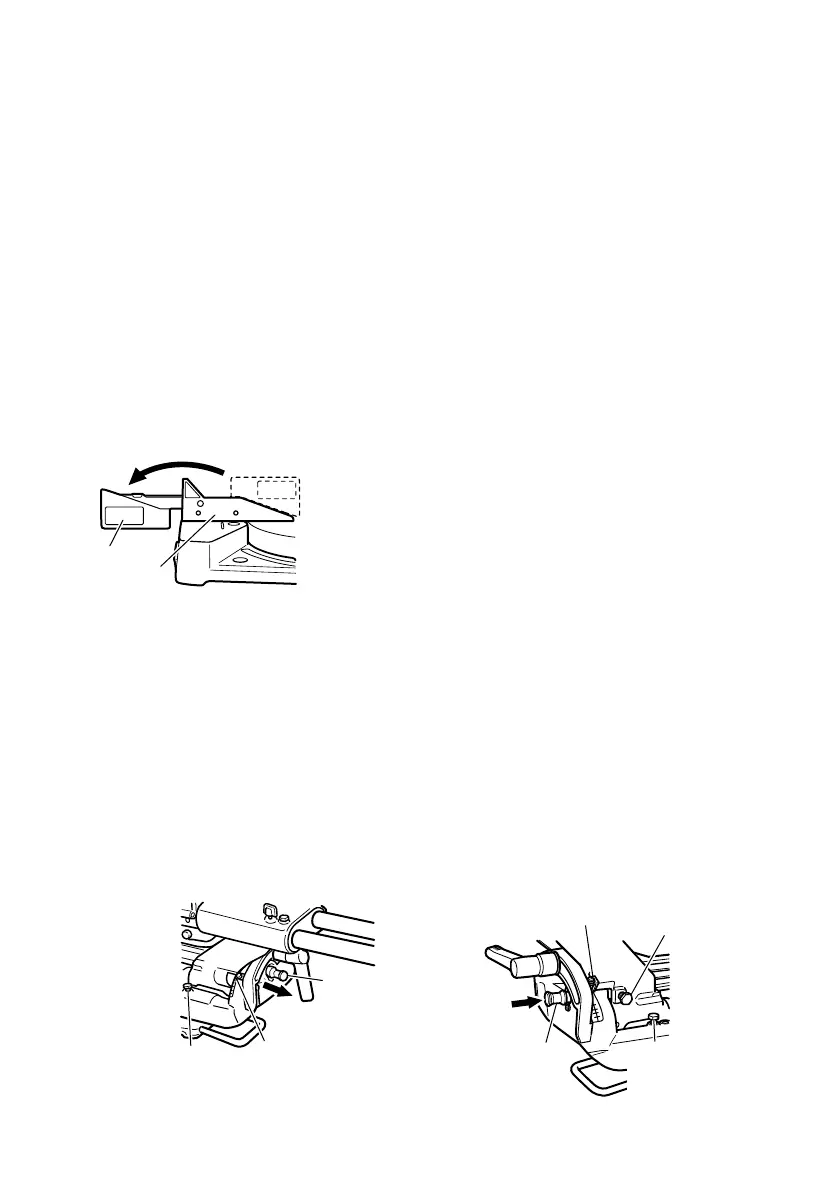

5. Confirmation for use of sub fence
WARNING: In the case of left bevel cutting, turn the sub fence counterclockwise.
Unless it is turned counterclockwise, the main body or saw blade may
contact the sub fence, resulting in an injury.
This power tool is Equipped with a sub fence.
In the case of direct angle cutting and right bevel
angle cutting, use the sub fence. Then, you can
realize stable cutting of the material with a wide
back face.
In the case of left bevel cutting, raise the sub fence
up as illustrated in Fig. 11 and then turn it
counterclockwise.
Fig. 11
6. Oblique angle
Before the power tool is shipped from the factory, it is adjusted for 0°, right angle, left
45° bevel cutting angle and right 45° bevel cutting angle with the 8mm bolt (A), 8mm
bolt (B) and the 8mm bolt (C).
When changing the adjustment, change the height of the 8mm bolt (A), 8mm bolt (B)
or the 8mm bolt (C) by turning them.
When changing the bevel angle to the right 45°, pull the fixing pin on the direction
shown in Fig. 12-a and incline the motor head to the right.
When adjusting the motor head to 0°, always return the fixing pin to its initial position
as shown in Fig. 12-b.
Fig. 12-a Fig. 12-b
Sub Fence
Left bevel
angle cutting
Turn
Right bevel angle
cutting
Direct angle cutting
Fence (B)
8mm Bolt (C)
(Stopper for left
45° bevel angle)
Indicator
(For left bevel
scale)
Fixing Pin
Pull
Fixing Pin
8mm Bolt (B)
(Stopper for right
45° bevel angle)
8mm Bolt (A)
(Stopper for 0°)
Return
Indicator
(For right bevel scale)
01Eng_C10FSH_Eng 3/29/07, 12:30 PM13
