PREPARATION BEFORE OPERATION
Make the following preparations before operating the power tool:
1. Installation

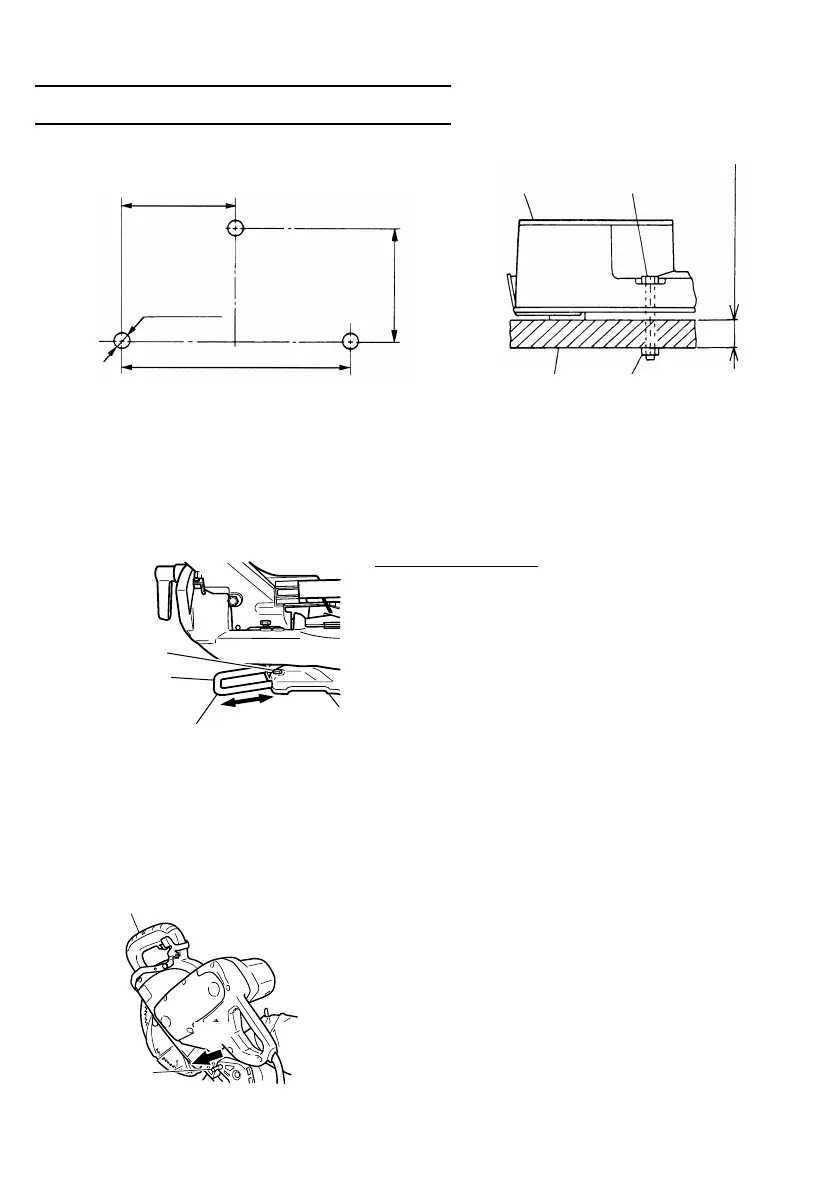

Fig. 4
Attach the power tool to a level, horizontal work bench in accordance with Fig. 4.
Select 8mm (5/16") diameter bolts suitable in length for the thickness of the work bench.
Bolt length should be at least 40mm (1-9/16") plus the thickness of the work bench.
For example, use 65mm (2-9/16" ) or larger bolts for a 25mm (1") thick work bench.
The holder attached to the rear of the base helps stabilize the power tool.
Holder adjustment:
Loosen the 6mm bolt with the supplied 10mm box
wrench.
Adjust the holder until its bottom surface contacts
the work bench surface.
After adjustment, firmly tighten the 6mm bolt.
Fig. 5
2. Releasing the locking pin
When the power tool is prepared for shipping, its
main parts are secured by a locking pin.
Move the handle slightly so that the locking pin
can be disengaged.
NOTE: Lowering the handle slightly will enable
you to disengage the locking pin more
easily and safely.
The lock position of the locking pin is for
carrying and storage only.
Fig. 6
Handle
Pull
Locking Pin
150mm
(5-29/32")
300mm (11-13/16")
9mm
(11/32")
3 Holes
264mm
(10-13/32")
6mm Bolt
Move
Adjust the holder until
its bottom surface
contacts the work bench
surface.
Holder
25mm (1")
thick bench
Work Bench
8mm (5/16") Nut
8mm (5/16") BoltBase
