Hitachi C 10FSH - GROOVE CUTTING PROCEDURES; CUTTING DEFORMABLE MATERIALS; DUST BAG USAGE

25

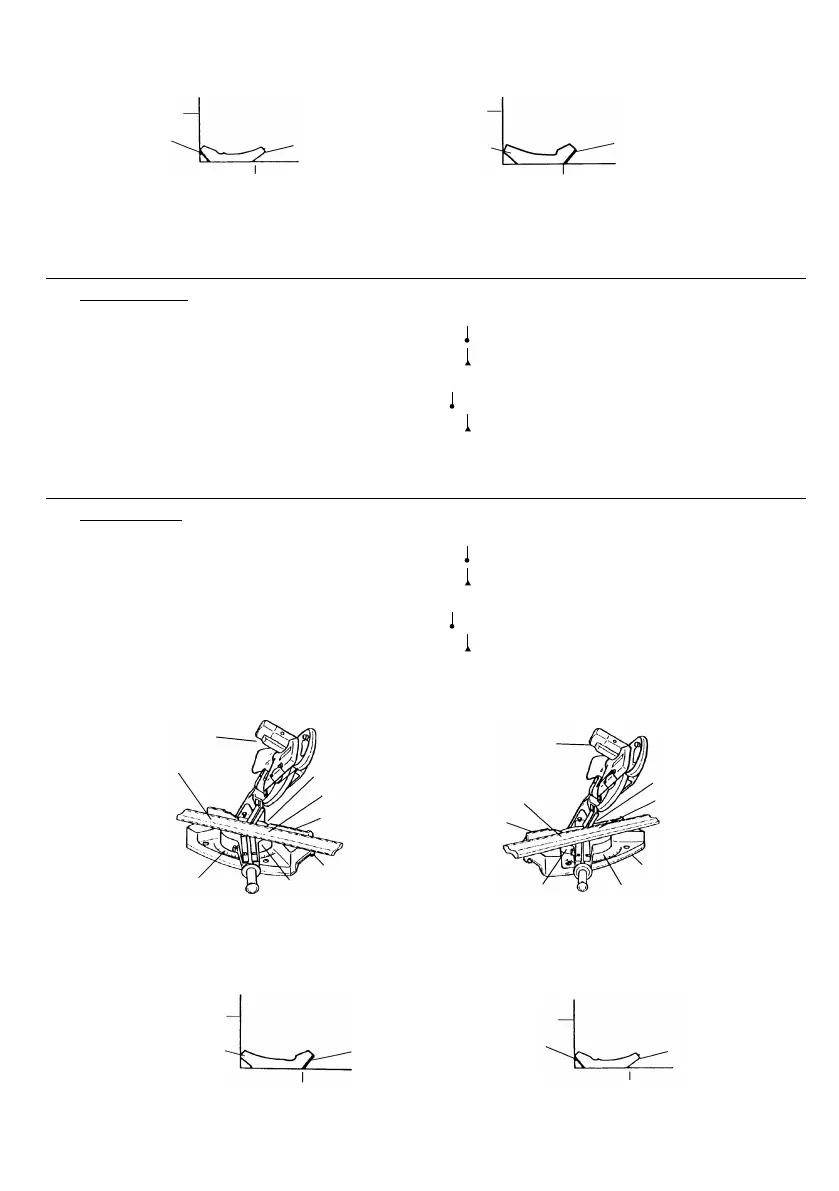

Fig. 39 Fig. 40
(3) Setting to cut crown moldings at positions 1 and 4 in Fig. 35 (see Fig. 41; tilt the head
to the right):
1 Turn the turntable to the right and set the Miter Angle as follows:
* For 45° type crown moldings: 35.3° (
mark)
* For 38° type crown moldings: 31.6° ( mark)
2 Tilt the head to the right and set the Bevel Angle as follows:
* For 45° type crown moldings: 30° (
mark)
* For 38° type crown moldings: 33.9° ( mark)
3 Position the crown molding so that the upper surface (B in Fig. 34) contacts the
fence as indicated Fig. 43.
(4) Setting to cut crown moldings at positions 2 and 3 in Fig. 35 (see Fig. 42; tilt the head
to the right):
1 Turn the turntable to the left and set the Miter Angle as follows:
* For 45° type crown moldings: 35.3° ( mark)
* For 38° type crown moldings: 31.6° (
mark)
2 Tilt the head to the right and set the Bevel Angle as follows:
* For 45° type crown moldings: 30° ( mark)
* For 38° type crown moldings: 33.9° (
mark)
3 Position the crown molding so that the lower surface (A in Fig. 34) contacts the
fence as in Fig. 44.
Fig.41 Fig. 42
Fig. 43 Fig. 44
Fence
Table on Base
B
A
Table on Base
Fence
AB
Bevel Angle
Scale
Fence
Turntable
1
4
Base
Miter Angle
Scale
Head
Fence
Turntable
Bevel Angle
Scale
Base
Miter Angle
Scale
2
3
Head
Fence
A
B
Fence
A
B
Table on BaseTable on Base
