Hitachi C 10FSH User Manual

11
English

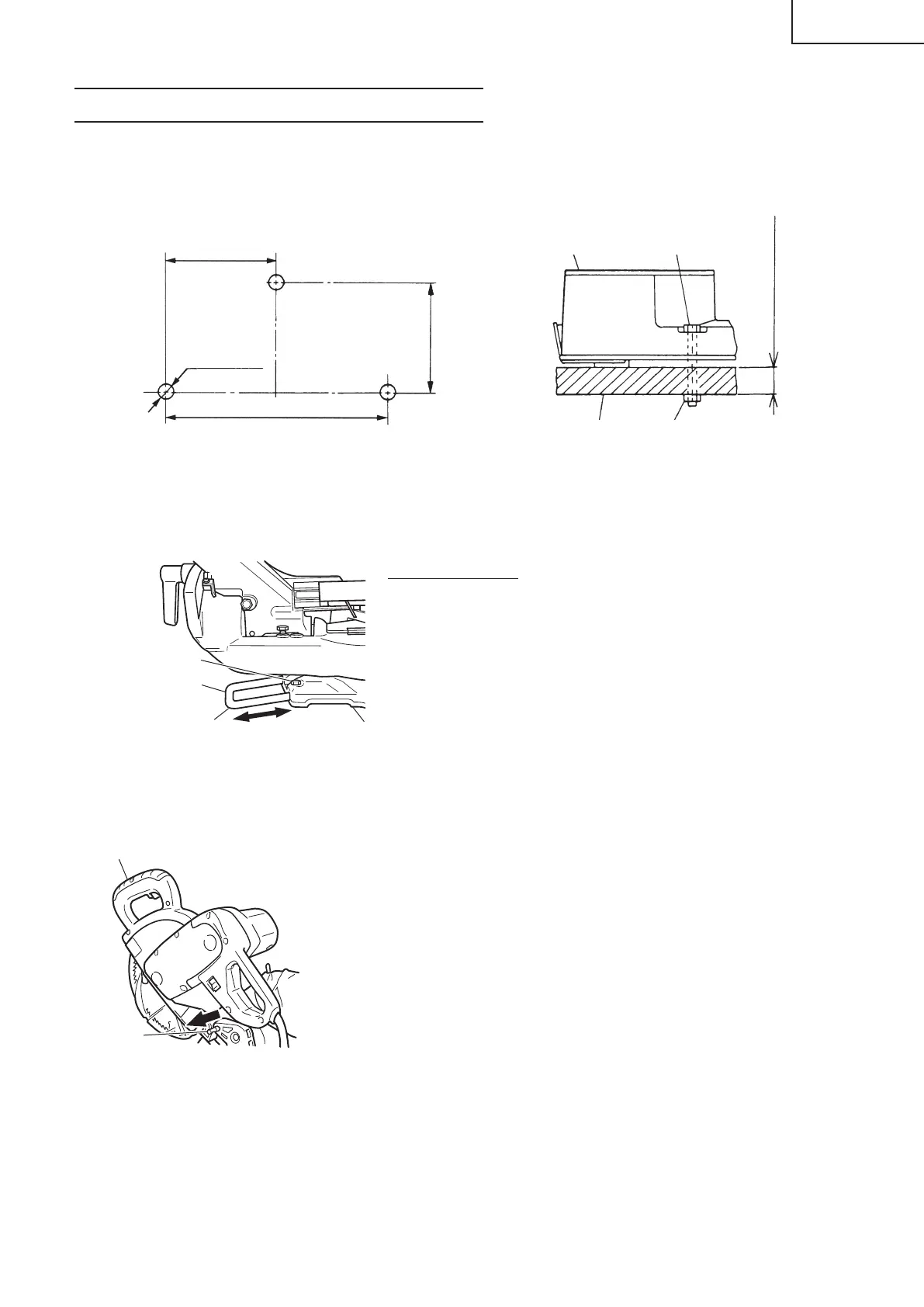

PREPARATION BEFORE OPERATION
Make the following preparations before operating the power tool:
1. Remove all packing materials attached or connected to the tool before attempting to operate it.
2. Installation
1" (25mm) thick bench
Work Bench
5/16" (8mm) Nut
5/16" (8mm) BoltBase
5-29/32"(150mm)
11-13/16" (300mm)
11/32" (9mm)
3 Holes
10-13/32" (264mm)
Fig. 4
Attach the power tool to a level, horizontal work bench in accordance with Fig. 4.
Select 5/16" (8mm) diameter bolts suitable in length for the thickness of the work bench.
Bolt length should be at least 1-9/16" (40mm) plus the thickness of the work bench.
For example, use 2-9/16" (65mm) or larger bolts for a 1" (25mm) thick work bench.
The holder attached to the rear of the base helps stabilize the power tool.
Holder adjustment:
Loosen the 6mm bolt with the supplied 10mm box wrench.
Adjust the holder until its bottom surface contacts the work bench
surface.
After adjustment, fi rmly tighten the 6mm bolt.
Fig. 5
3. Releasing the locking pin
When the power tool is prepared for shipping, its main parts are secured
by a locking pin.
Move the handle slightly so that the locking pin can be disengaged.
NOTE: Lowering the handle slightly will enable you to disengage
the locking pin more easily and safely.
The lock position of the locking pin is for carrying and
storage only.
Fig. 6
4. Installing the dust bag, holder, stopper and vises
(The holder and stopper are optional accessories.)
Attach the dust bag and vise assembly as indicated in Fig. 1 and Fig. 2.
6mm Bolt
Move
Adjust the holder
until its bottom
surface contacts the
work bench surface.
Holder
Locking Pin
Pull
Handle
0000BookC10FSH.indb110000BookC10FSH.indb11 2015/08/1015:19:162015/08/1015:19:16
