Hitachi CP-A301N User Manual

5
Introduction

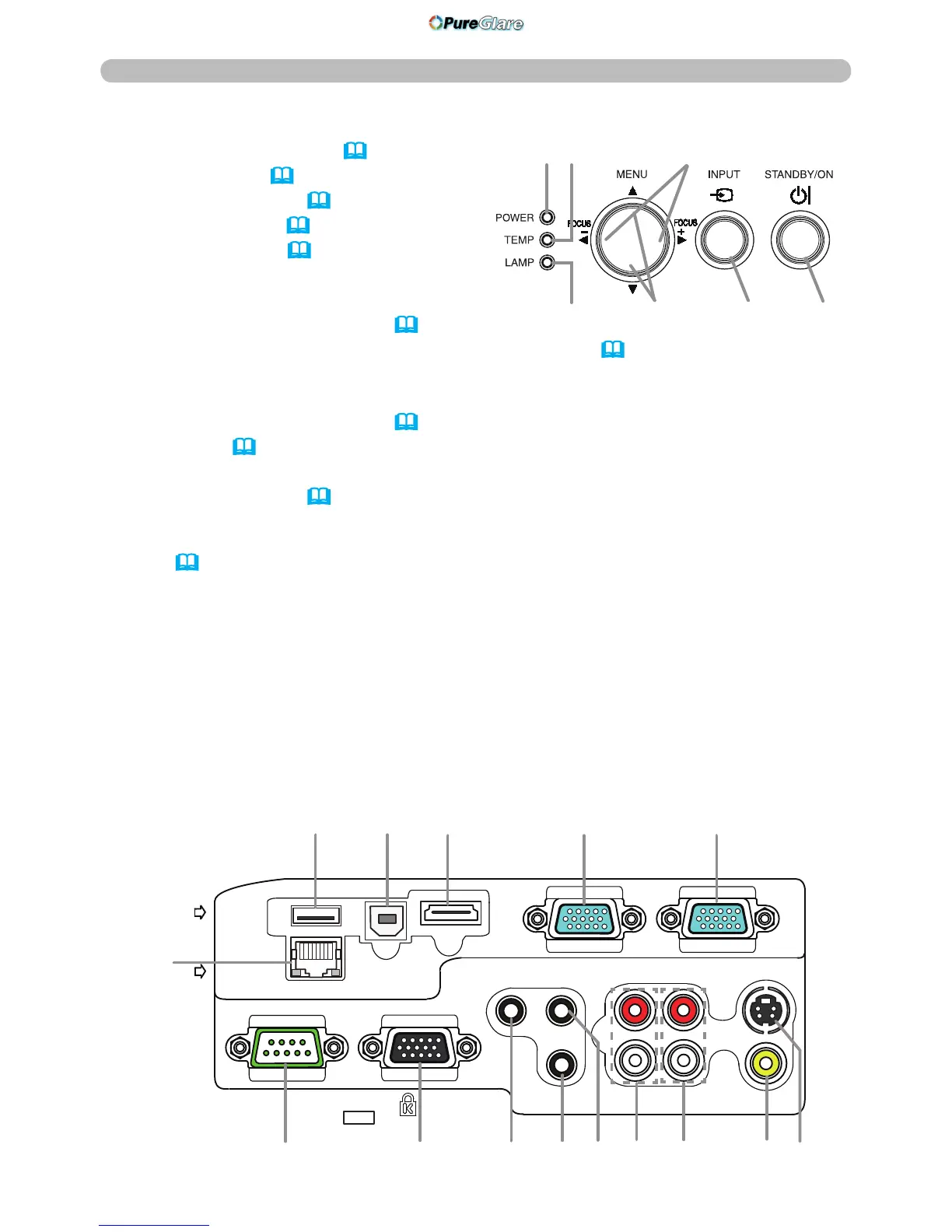

Control panel
(1) STANDBY/ON button (
18)
(2) INPUT button (
20)
(3) POWER indicator (18, 101, 102)
(4) TEMP indicator (101, 102)
(5) LAMP indicator (101, 102)
Buttons ◄/►/▲/▼
(6) FOCUS +/- buttons
when no menu is displayed (24),
or Cursor ◄/► buttons when a menu is displayed (28). FOCUS +/- function
is invalid when the USB TYPE A port is selected as the input source.
(7) MENU buttons
when no menu is displayed (28), or Cursor ▲/▼ buttons when a menu is
displayed (28).
The ◄/►/▲/▼ buttons on the projector work only as the cursor buttons while the
template is displayed (52).
Ports
(
9 ~ 13)
(1) USB TYPE A port
(2) LAN port
(3) HDMI port
(4) USB TYPE B port
(5) MIC port
(6) AUDIO IN1 port
(7) AUDIO IN2 port
(8) AUDIO IN3(L,R) ports
(9) AUDIO OUT (L,R) ports
(10) COMPUTER IN1 port
(11) COMPUTER IN2 port
(12) MONITOR OUT port
(13) CONTROL port
(14) VIDEO port
(15) S-VIDEO port
COMPUTER IN1COMPUTER IN2
HDMI
USB TYPE B
S-VIDEO
VIDEO
AUDIO OUT
AUDIO IN3AUDIO IN1
AUDIO IN2
MIC
MONITOR OUT
CONTROL
USB
TYPE A
DC5V
0.5A
L
R
R
L
LAN
(7)
(3) (11)
(6)(12)
(10)
(8)
(14)
(4)
(1)
(13)
(15)
(2)
(5)
(9)
(1)
(7)
(2)
(3)
(5)
(4)
(6)
