7

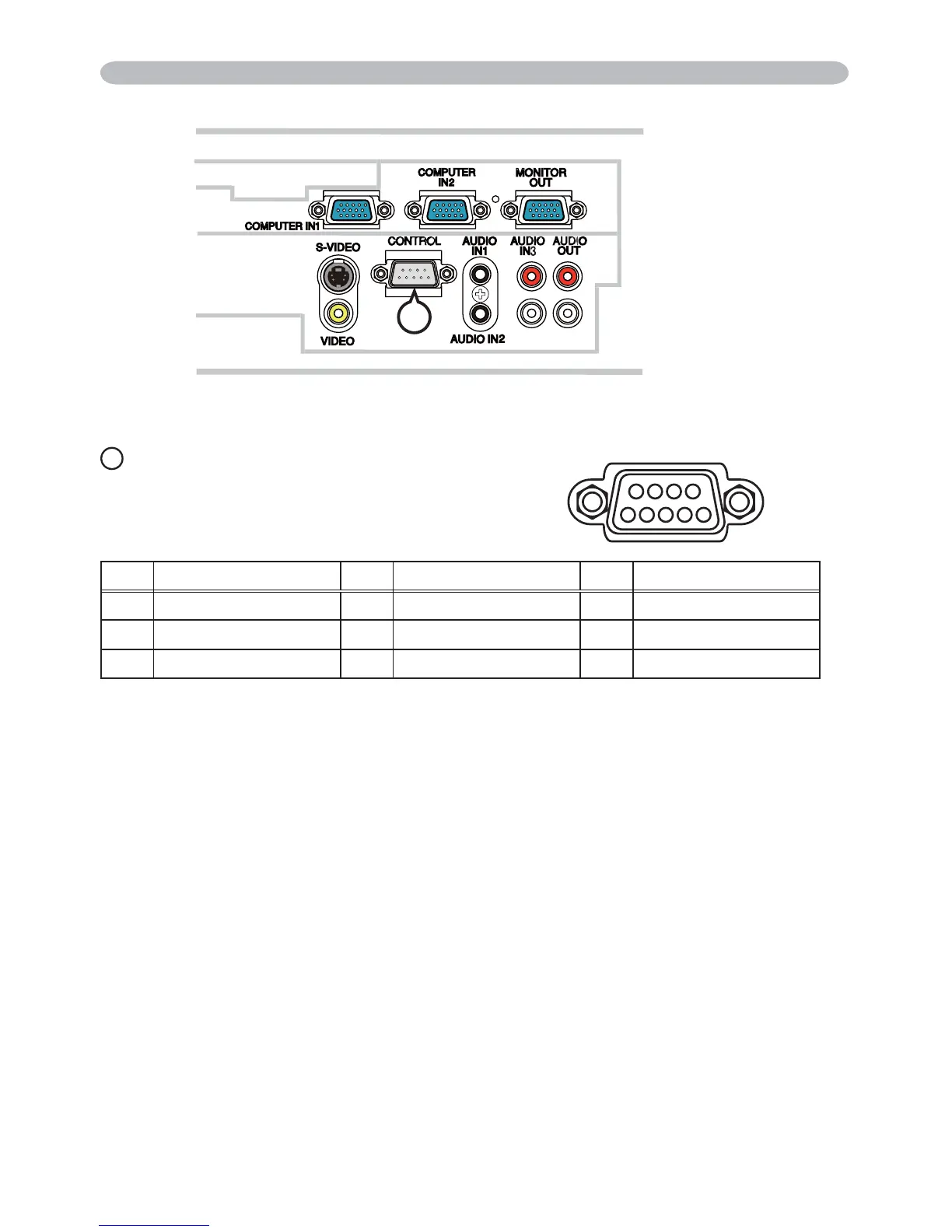

Connection to the por
ts
(continued)
L
CONTROL
D-sub 9pin plug
•
About the details of RS-232C communication,
please refer to the following page.
Pin
Signal
Pin
Signal
Pin
Signal
1
(No connection)
4
(No connection)
7
RTS
2
RD
5
Ground
8
CTS
3
TD
6
(No connection)
9
(No connection)
L
6
5432
1
9
8
7
99
101
Table of Contents
Table of Contents
11
Default Chapter
3
Safety Precautions
3
Contents
12
About this Manual
12
Projector Features
12
Preparations
12
Checking the Contents of Package
12
Fastening the Lens Cover
12
Part Names
13
Projector
13
Control Panel
14
Rear Panel
14
Remote Control
15
Setting up
16
Arrangement
16
Connecting Your Devices
18
Connecting Power Supply
20
Using the Security Bar and Slot
20
Remote Control
21
Installing the Batteries
21
About the Remote Control Signal
21
Changing the Frequency of Remote Control Signal
22
Power On/Off
23
Turning on the Power
23
Turning off the Power
23
Operating
24
Adjusting the Volume
24
Temporarily Muting the Sound
24
Selecting an Input Signal
24
Searching an Input Signal
26
Selecting an Aspect Ratio
26
Adjusting the Projector's Elevator
27
Adjusting the Focus
27
Using the Automatic Adjustment Feature
28
Adjusting the Position
28
Correcting the Keystone Distortions
29
Using the Magnify Feature
29
Temporarily Freezing the Screen
30
Temporarily Blanking the Screen
30
Using the Menu Function
31
Easy Menu
33
PICTURE Menu
35
Color Temp , C
36
My Memory
37
IMAGE Menu
38
INPUT Menu
40
Progressive
40
Video Format , C
41
Frame Lock , R
41
SETUP Menu
43
Eco Mode , M
43
Monitor out
44
AUDIO Menu
45
SCREEN Menu
46
OPTION Menu
51
Auto Search , D
51
Auto Power off
51
Filter Time , M
52
Service
54
SECURITY Menu
56
Enter the Security Menu
56
Myscreen
57
Transition Detector
59
M y Text Display
61
Maintenance
62
Replacing the Lamp
62
Lamp Warning
63
Cleaning and Replacing the Air Filter
64
Other Care
65
Troubleshooting
66
Related Messages
67
Regarding the Indicator Lamps
68
Shutting the Projector down
70
Resetting All Settings
70
Phenomena that May be Easy to be Mistaken for Machine Defects
70
Specifications
73
User's Manual (Concise)
75
Cp-D10
77
First of All
78
Entries and Graphical Symbols Explanation
78
Important Safety Instruction
78
Regulatory Notices
79
About Electro-Magnetic Interference
79
About Waste Electrical and Electronic Equipment
80
Contents of Package
81
Loading Batteries into the Remote Control
81
Loading Batteries
82
Arrangement
82
Connecting Your Devices
83
Connecting Power Supply
84
Turning on the Power
84
Adjusting the Projector's Elevator
85
Displaying the Picture
86
Turning off the Power
87
Replacing the Lamp
88
Cleaning and Replacing the Air Filter
90
Using the CD Manual
91
Specifications
92
Troubleshooting - Warranty and After-Service
