Hitachi CP-RX80 - Control Panel; Rear Panel

5

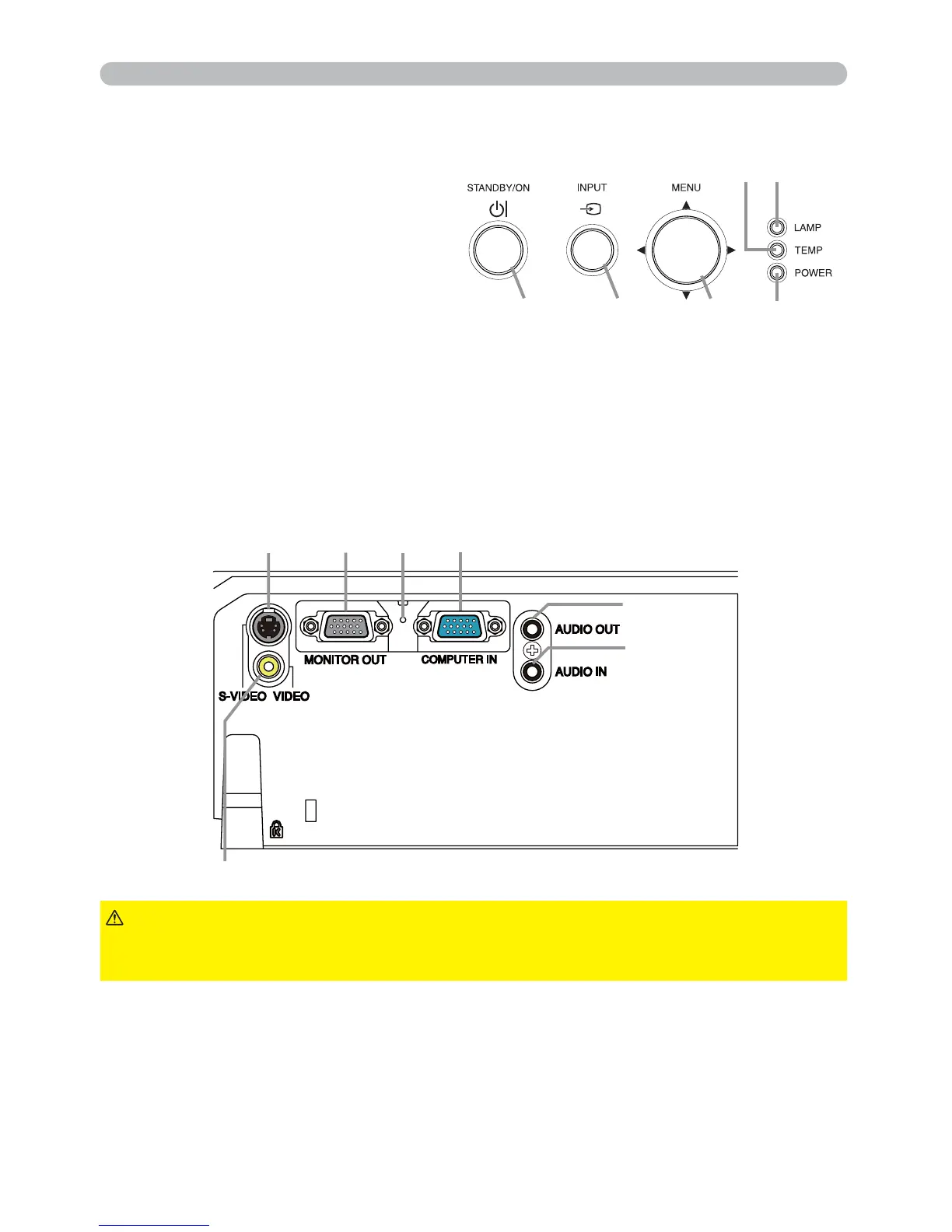

Part names
Control panel
(1) STANDBY/ON button (

14)
(2) INPUT button (

16, 22)
(3) MENU button (

22)
It consists of four cursor buttons.
(4) POWER indicator (

11, 14, 58)
(5) TEMP indicator (

58)
(6) LAMP indicator (

58)
Rear panel (

9)
(1) AUDIO OUT port
(2) AUDIO IN port
(3) COMPUTER IN port
(4) MONITOR OUT port
ŹUse the shutdown switch only when the projector is not
turned off by normal procedure, since pushing this switch stops operation of the
projector without cooling it down.
CAUTION
(5) Shutdown switch (

59)
(6) VIDEO port
(7) S-VIDEO port
(2)
(3)
(6)
(7) (4) (5)
(1)
(1) (3)(2)
(4)
(6)(5)
