Installation
NOTE
• The angle of gradient of Set A to the horizontal line should be within
12 degrees.
• Keep in mind the followings when you consider the installation position.
-
VERTICAL adjuster should be set to upper limit position.
- ZOOM ring should not be set to fully wide position.
- HORIZONTAL adjuster is recommended to be set around center position.

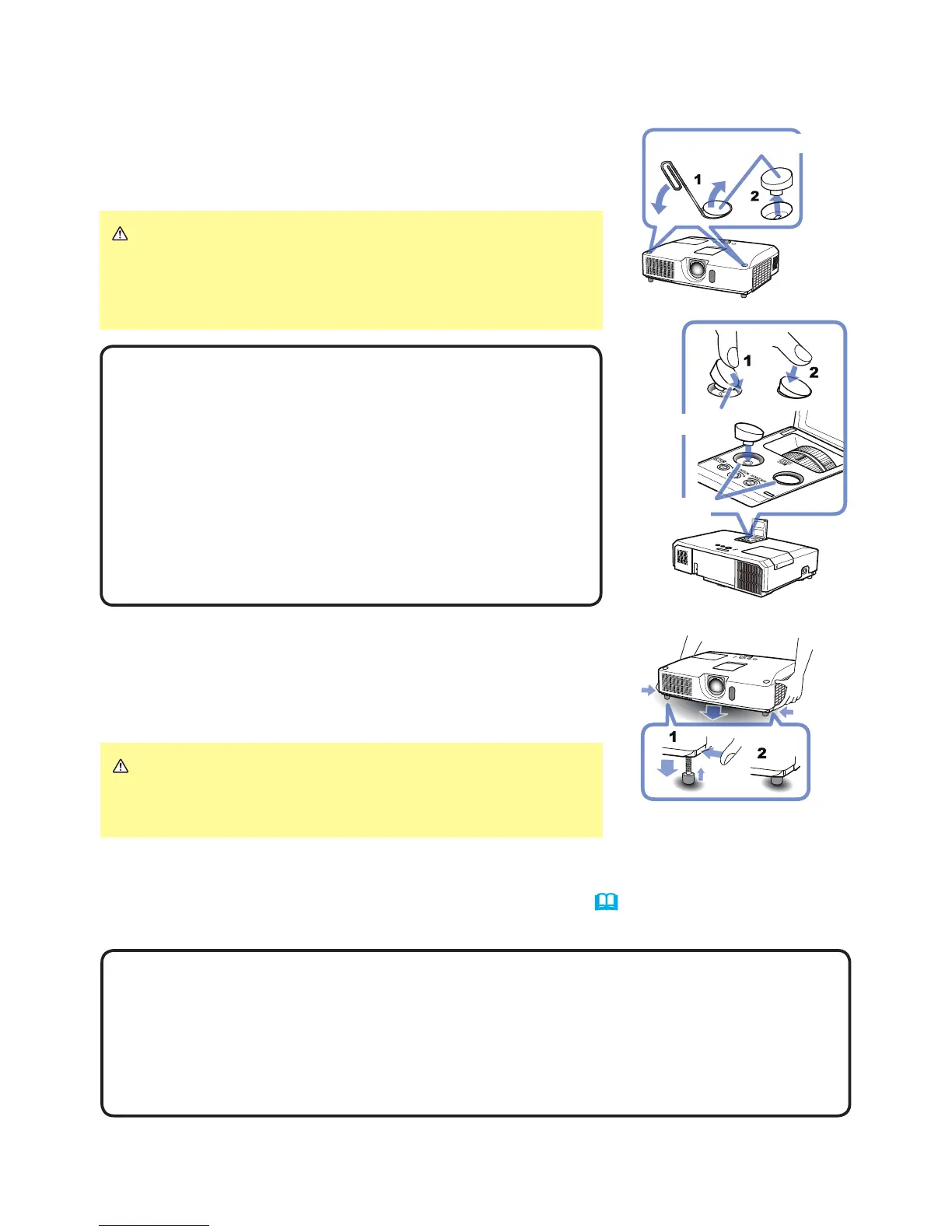

Preparing of elevator feet
When you pile up two projectors, set the elevator feet
length minimum with using the elevator buttons on Set
A and B.
CAUTION ►Be careful that when you pile up
two projectors, a projector set over the other may
slide down.
NOTE • Cap storage pockets for the pocket caps
are provided inside of the lens adjuster door. Be
sure to keep the caps in the storage pockets, when
taking the caps from the stack pockets.
To store the cap to the pocket, put thin side of the
cap to the pocket rst, and then rmly push down
the other side of the cap to the bottom end of the
pocket. Be aware that keeping the caps solidly is
extremely important to prevent children and pets
from swallowing the caps.
LOCK
Thin side
Cap storage
pocket
Pocket caps
CAUTION ►It is recommended to use a pin or
something similar to remove the caps. If you use
your nger, be careful not to injure your nail and n-
ger.
Removing pocket caps
When you pile up two projectors, remove pocket caps
on Set A.
Deciding installation position
Decide the position of Set A and its projection angle. (
User’s Manual (concise)
→ Arrangement and Adjusting the projector’s elevator.)
2.2 Installation of the rst projector (Set A)
