Introduction

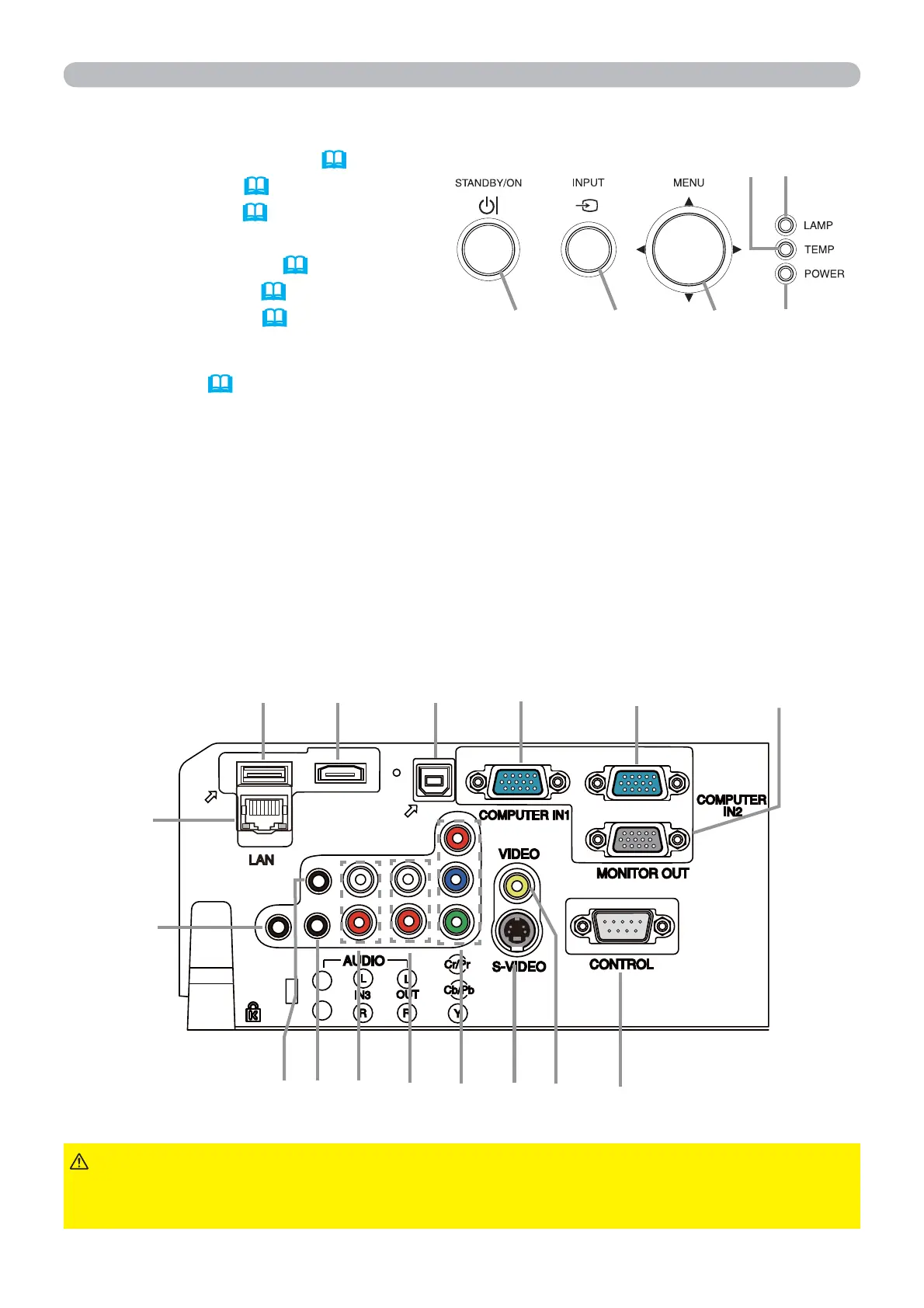

Control panel
(1) STANDBY/ON button (
17)
(2) INPUT button (
18)
(3) MENU button (
26)
It consists of four cursor buttons.
(4) POWER indicator (17, 93, 94)
(5) TEMP indicator (
93, 94)
(6) LAMP indicator (
93, 94)
Rear panel
(
9 ~ 13)
(1) USB TYPE A port
(2) LAN port
(3) HDMI port
(4) USB TYPE B port
(5) MIC port
(6) AUDIO IN1 port
(7) AUDIO IN2 port
(8) AUDIO IN3(L,R)
ports
(9) AUDIO OUT (L,R) ports
►Use the shutdown switch only when the projector is not
turned off by normal procedure, since pushing this switch stops operation of the
projector without cooling it down.
CAUTION
(10) COMPUTER IN1 port
(11) COMPUTER IN2 port
(12) MONITOR OUT port
(13) CONTROL port
(14) VIDEO port
(15) S-VIDEO
port
(16) Cr/Pr,Cb/Pb,Y
(Component) ports
(1) (3)(2) (4)
(6)(5)
LAN
MIC
HDMI
IN1
IN2
USB
TYPE A
DC5V 0.5A
USB
TYPE B
(13)
(7)
(11)
(16)
(14)
(9)
(15)
(10)
(12)
(6)
(4)
(8)
(2)
(1)
(3)
(5)
