4
Introduction

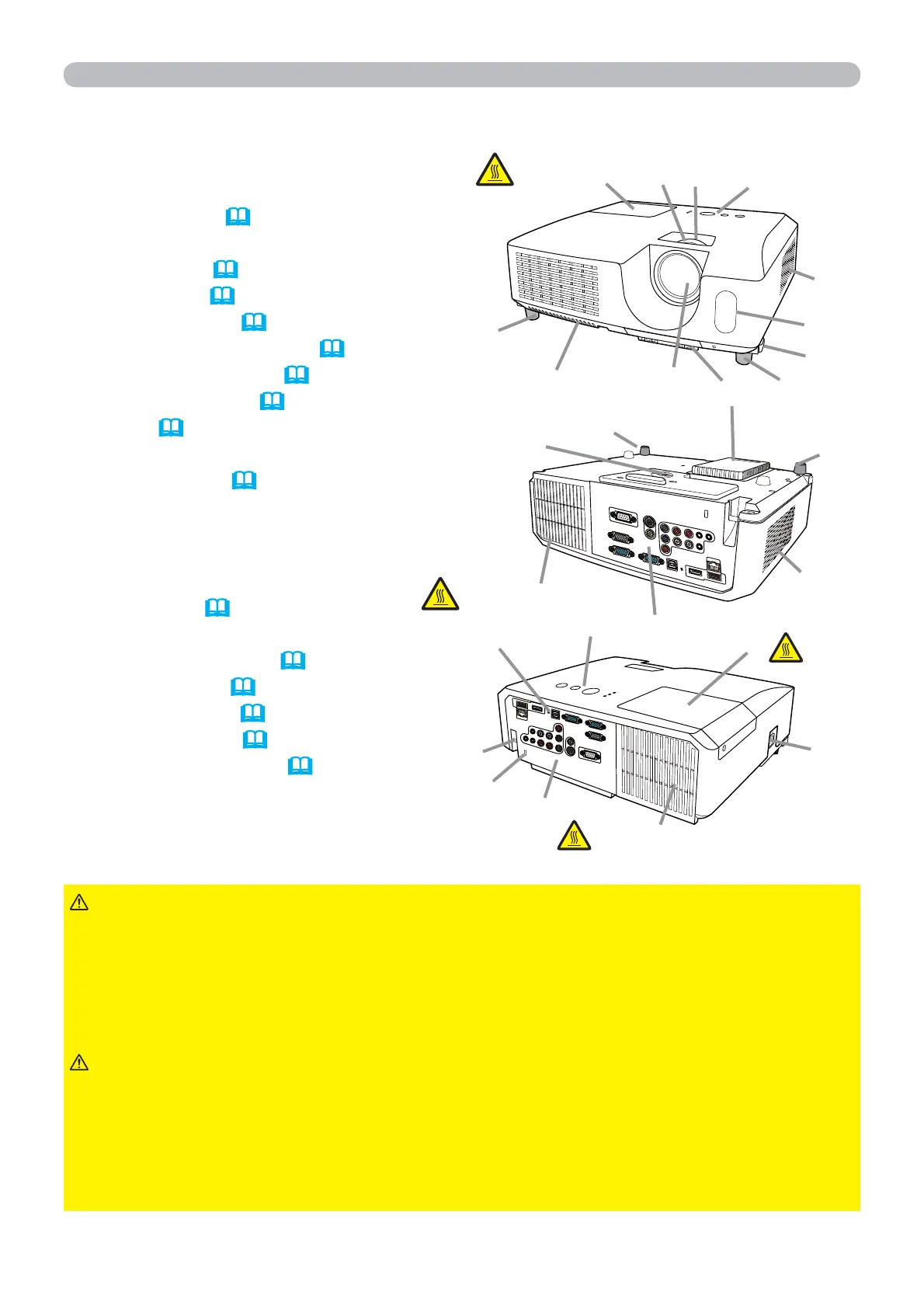

Projector
(1) Lamp cover (
85)
The lamp unit is inside.
(2) Focus ring (21)
(3) Zoom ring (
21)
(4) Control panel (
5)
(5) Elevator buttons (x 2) (
21)
(6) Elevator feet (x 2) (
21)
(7) Remote sensor (
15)
(8) Lens (
90)
(9) Intake vents
(10) Filter cover (
87)
The air filter and intake vent are
inside.
(11) Battery cover
The internal clock battery is inside.
(12) Speaker (12, 18, 42)
(
13) Exhaust vent
(
14) AC IN (AC inlet) (14)
(
15) Rear panel (5)
(
16) Security bar (14)
(
17) Security slot (14)
(
18)
Shutdown switch
(94)
►HOT! : Do not touch around the lamp cover and the exhaust
vents during use or just after use, since it is too hot.
►Do not look into the lens or vents while the lamp is on, since the strong light is
not good for your eyes.
►Do not handle the elevator buttons without holding the projector, since the
projector may drop down.
WARNING
►Maintain normal ventilation to prevent the projector from
heating up. Do not cover, block or plug up the vents. Do not place anything that
can stick or be sucked to the vents, around the intake vents. Clean the air filter
periodically.
►Do not use the security bar and slot to prevent the projector from falling down,
since it is not designed for it.
CAUTION
HOT!
HOT!
(13)
HOT!
(1)
(2) (3) (4)
(7)
(9)
(8)
(10)
(6)
(5)
(12)
(6)
(6)
(6)
(
15)
(16)
(
14)
(4)
(
13)
(17)
(15)
(12)
(11)
(1)
HOT!
(18)
Part names
