CP-X2520 ( M2-25ED ) / CP-X3020 ( M2-30ED )

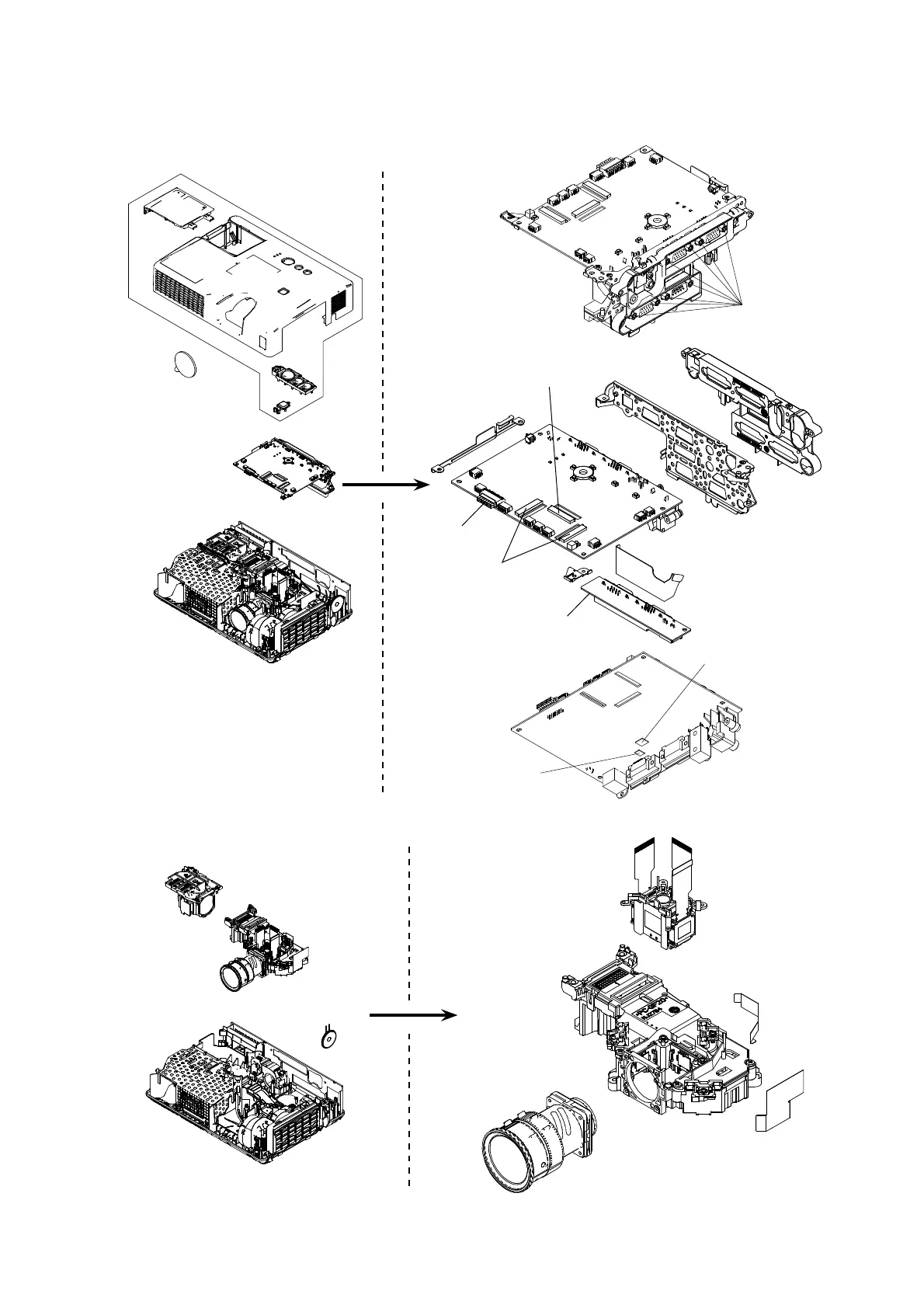

8. Disassembly diagram
PWB assembly MAIN
1. Remove UPPER CASE / PWB assembly MAIN
2. Remove LAMP / DICHROIC OPTICS UNIT / LENS / SPEAKER
Continued on next page
6
31
1
24
29
30
28
3
9
19
18
32
20
21
15
4
5
