CP-X2520 ( M2-25ED ) / CP-X3020 ( M2-30ED )
7. Wiring diagram
Wiring diagram 1

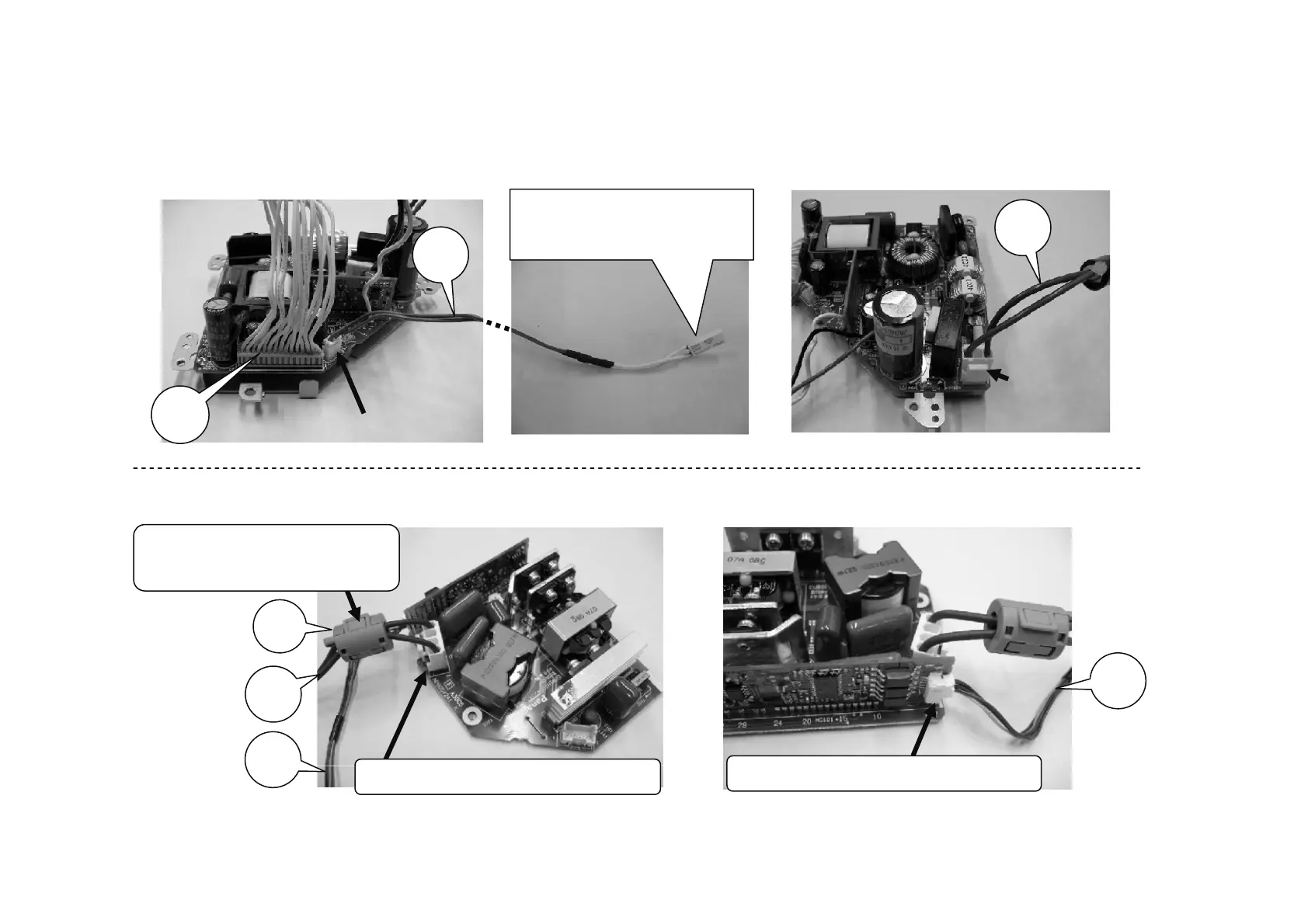

Wiring of POWER UNITS
POWER UNIT CIRCUIT
Attach TSW cable (CNTS) and AC-INLET cable (CNAC).
POWER UNIT BALLAST
Attach CNLAP, FE1, CNBAR.
CNPOW
TSW
cable
Connect the TSW cable.
Connect the
TSW cable
with a click.
AC-INLET
cable
FE1
CNBAR
CNBAR
CNLAP
Attach the ferrite core FE1 to the
CNLAP cable carefully in order
not .to pinch the wires.
Connect the CNLAP cable with a click.
Connect the CNBAR cable with a click.
TSW
Check the marking of TSW.
UP62 UCHIYA 95C
