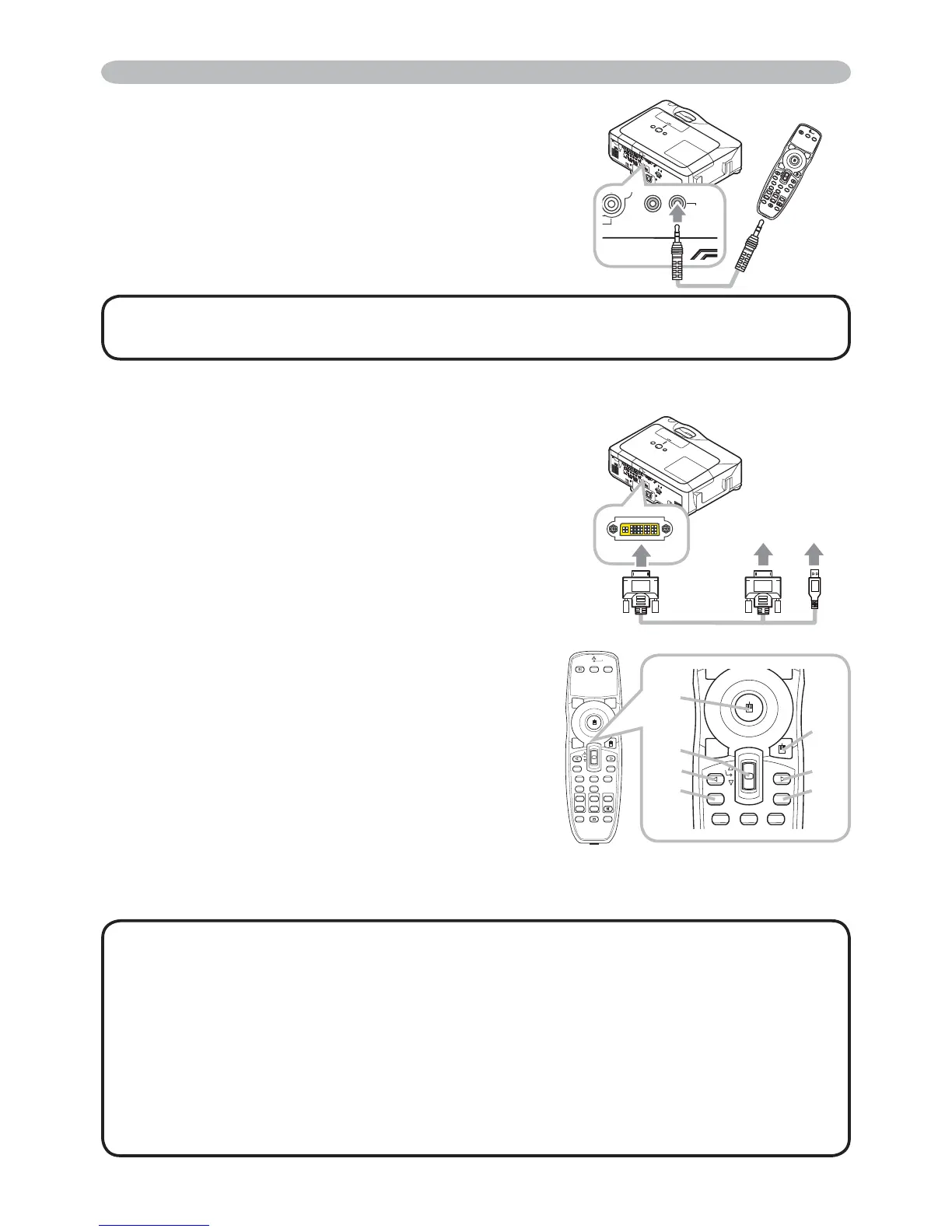

Using as a wired remote control
The accessory remote control works as a wired remote
control, when the wired control port at the bottom of the
remote control connects with the REMOTE CONTROL
port on the back of the projector via an audio cable with 3.5
diameter stereo mini plugs.
When the remote control signal is hard to reach surely to
the projector in the environment, this function is effective.
Remote control
NOTE • To connect the remote control with the projector, use an audio cable with
3.5 diameter stereo mini plugs.
Using as a simple PC mouse & keyboard
The accessory remote control works as a simple mouse
and keyboard of the PC, when an M1-D/USB cable
connects this projector’s M1-D port with the PC’s DVI-D
and USB (A type) ports.
(1) Mouse left button
Pushing the button into the center point works instead
of clicking the mouse's left button.
Tilting this button to one of eight directions moves the
PC's move pointer on the screen in the direction.
(2) Mouse right button
Pressing the button works instead of clicking the
mouse’s right button.
(3) Lever switch
6OLGLQJWRZDUGWKHVLGHPDUNHGŸZRUNVLQVWHDGRIWKH
>Ĺ@NH\RQWKHNH\ERDUG6OLGLQJWRZDUGWKHVLGHPDUNHG
źZRUNVLQVWHDGRIWKH>Ļ@NH\RQWKHNH\ERDUG
&XUVRUEXWWRQŻ
7KLVEXWWRQZRUNVLQVWHDGRIWKH>ĸ@NH\RQWKH
keyboard.
&XUVRUEXWWRQŹ
7KLVEXWWRQZRUNVLQVWHDGRIWKH>ĺ@NH\RQWKHNH\ERDUG
(6) PAGE UP button
This button works instead of the PAGE UP key on the key board.
(7) PAGE DOWN button
This button works instead of the PAGE DOWN key on the key board.
NOTE • When the simple mouse & keyboard function of this product does not work
correctly, please check the following.
- When an M1-D/USB cable connects this projector with a PC having a built-in pointing
device (e.g. track ball) like a notebook PC, open BIOS setup menu, then select the
external mouse and disable the built-in pointing device, because the built-in pointing
device may have priority to this function.
- Windows 95 OSR 2.1 or higher is required for this function. And also this function may
QRWZRUNGHSHQGLQJRQWKH3&¶VFRQ¿JXUDWLRQVDQGPRXVHGULYHUV
-
Operating simultaneously two or more keys is void except for mouse drag and drop operation.
- This function is activated only when the projector is working properly.







