Hitachi CP-X608 Service Manual

4
CP-X608(EDX40WL)
AUX I/O
DC 5V 0.5A
SD CARD
VIDEO
CONTROL
AUDIO IN 1
AUDIO IN 2
REMOTE
CONTROL
(3.5ĭ)
S-VIDEO
LAN
AUDIO
OUT
AC IN
I O
RLRL
AUDIO IN 3 AUDIO IN 4
RGB
OUT
RGB1 RGB2 M1-D
Y C
B
/P
B
C
R
/P
R

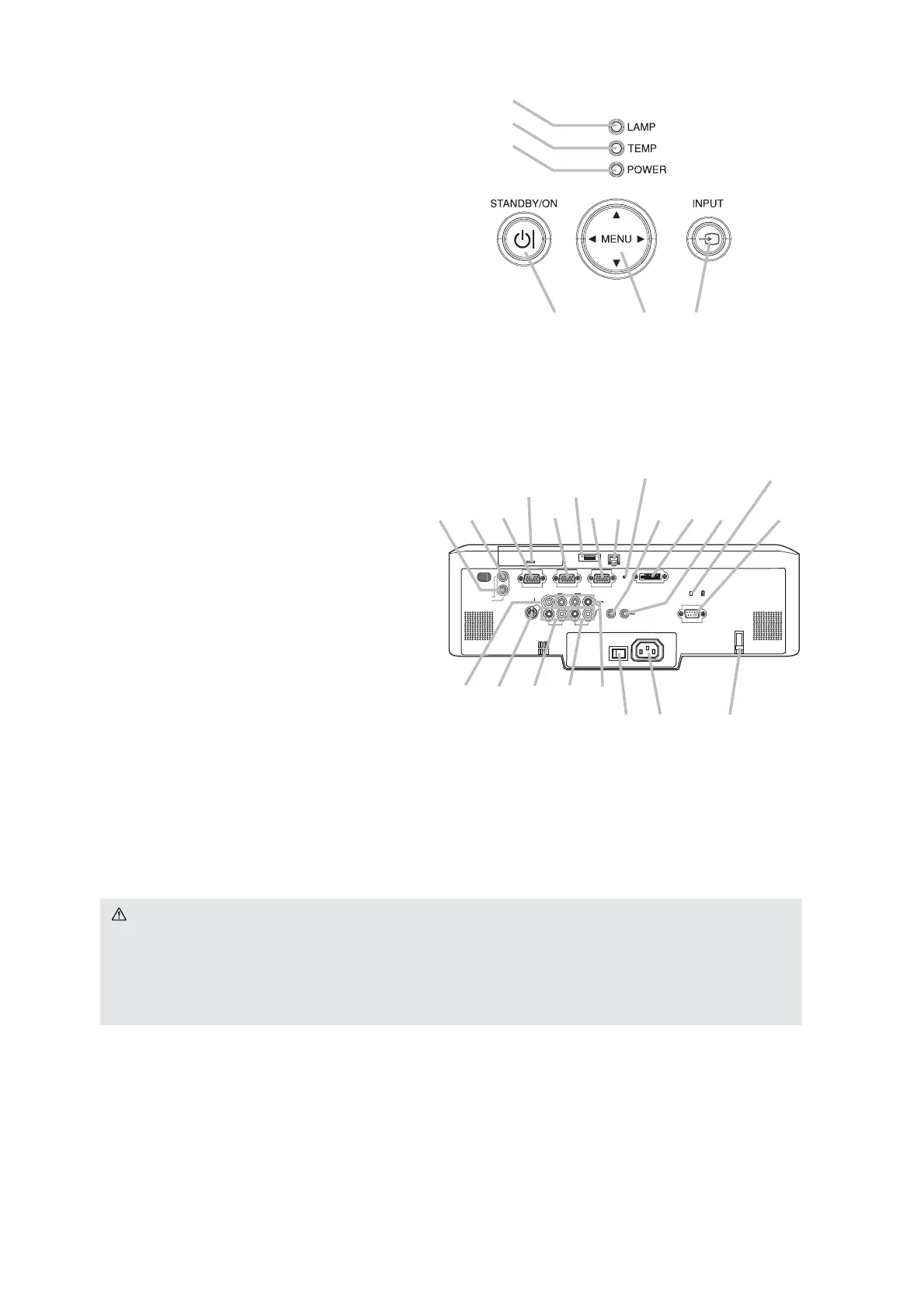

Control panel
(1) STANDBY/ON button
(2) MENU button
It consists of four cursor buttons.
(3) INPUT button
(4) POWER indicator
(5) TEMP indicator
(6) LAMP indicator
Rear panel
(1) Shutdown switch
(2) Security slot
(3) Security bar
(4) AC inlet
(5) Power switch
(6) RGB1 port
(7) RGB2 port
(8) CONTROL port
(9) M1-D port
(10) VIDEO port
(11) S-VIDEO port
(12) COMPONENT
(Y, C
B
/P
B
, C
R
/P
R
) ports
(13) AUDIO IN1 port
(14) AUDIO IN2 port
(15) AUDIO IN3 (R/L) ports
(16) AUDIO IN4 (R/L) ports
(17) RGB OUT port
(18) AUDIO OUT port
(19) REMOTE CONTROL port
(20) LAN port
(21) SD CARD slot
(22) AUX I/O port
CAUTION ŹDo not use the security bar and the security slot to prevent the
projector from falling down, since it is not designed for it.
ŹUse the shutdown switch only when the projector is not turned off by normal
procedure, since pushing this switch stops operation of the projector without
cooling it down.
(6)
(5)
(4)
(1) (2)
(3)
(14)(13) (17) (6)
(21)
(7)
(22)
(20)
(18) (9) (19) (8)
(2)(1)
(10) (11) (15) (16) (12)
(5) (4) (3)
