Hitachi CP-X608 Service Manual

3
CP-X608(EDX40WL)

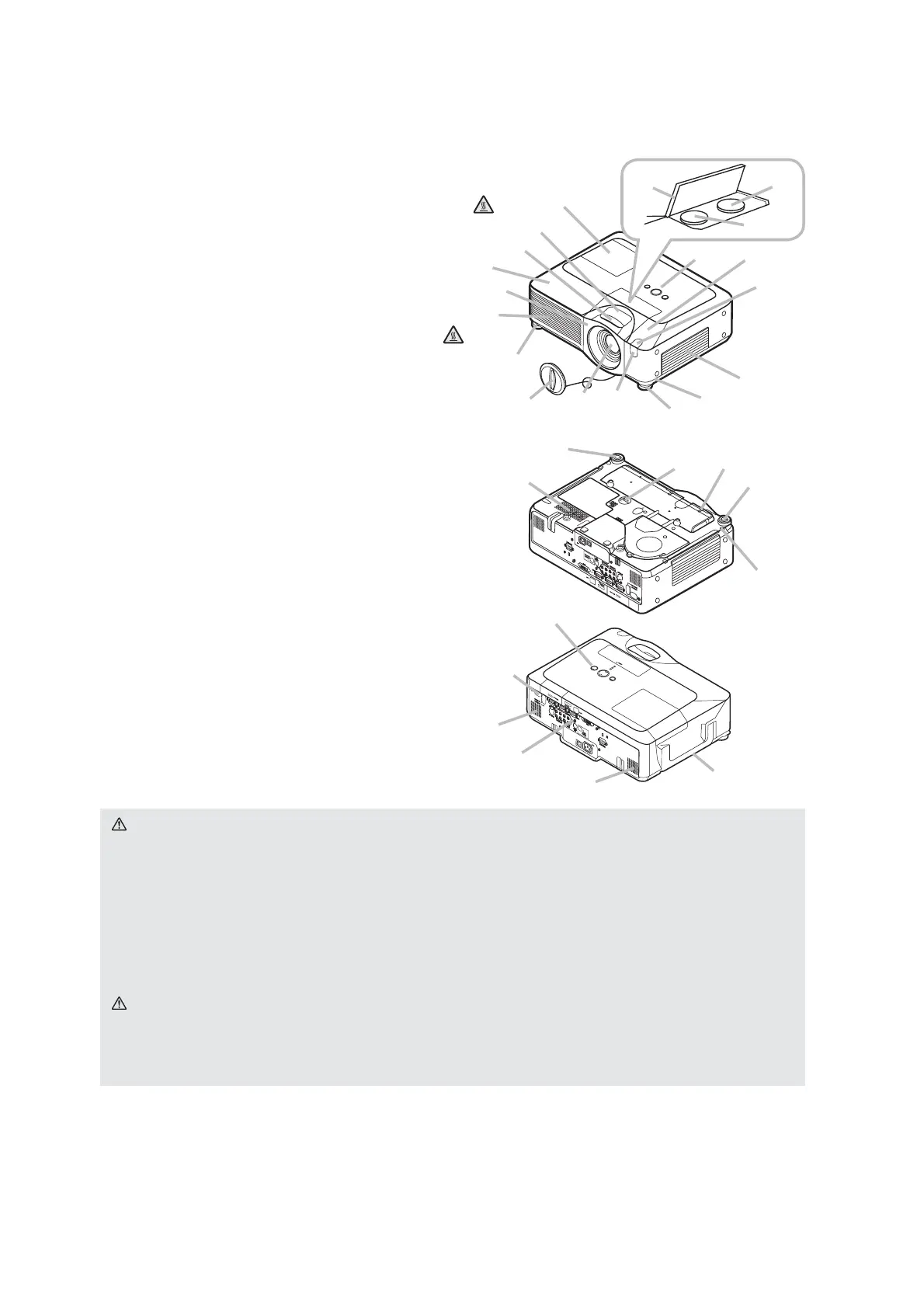

3. Names of each part
Projector
Ɣ
(1) Speakers (x 4)
(2) Focus ring
(3) Zoom ring
(4) Lamp cover
The lamp unit is inside.
(5) Lens shift cover
(6) Horizontal lens shift dial
(7) Vertical lens shift dial
(8) Front cover
(9) Lens
(10) Lens cover
(11) Remote sensors (x 3)
(12) Elevator feet (x 2)
(13) Elevator knobs (x 2)
(14) Filter cover
The air filter and intake vent are
inside.
(15) Exhaust vents
(16) Intake vents
(17) Rivet hole
(18) Handle
(19) Battery cover
(20) Control panel
(21) Rear panel
WARNING ŹHOT! : Do not touch around the lamp cover and the exhaust
vents during use or just after use, since it is too hot.
ŹDo not look into the lens or vents while the lamp is on, since the strong light
is not good for your eyes.
ŹDo not grab the front cover to hold the projector up, since the projector may
drop down.
ŹDo not handle the elevator knobs without holding the projector, since the
projector may drop down.
CAUTION ŹMaintain normal ventilation to prevent the projector from
heating up. Do not cover, block or plug up the vents. Do not place anything that
can stick or be sucked to the vents, around the intake vents. Clean the air filter
periodically.
(12)
(12)
(13)
(17)
(19)
(16)
(20)
(11)
(1)
(1)
(21)
(18)
(1)
(2)
(3)
(8)
(15)
(12)
(10)
(9)
(11)
(12)
(13)
(14)
(11)
(1)
(20)
(4)
HOT!
HOT!
(7)
(6)
(5)
