Hitachi CP-X809 User Manual

6

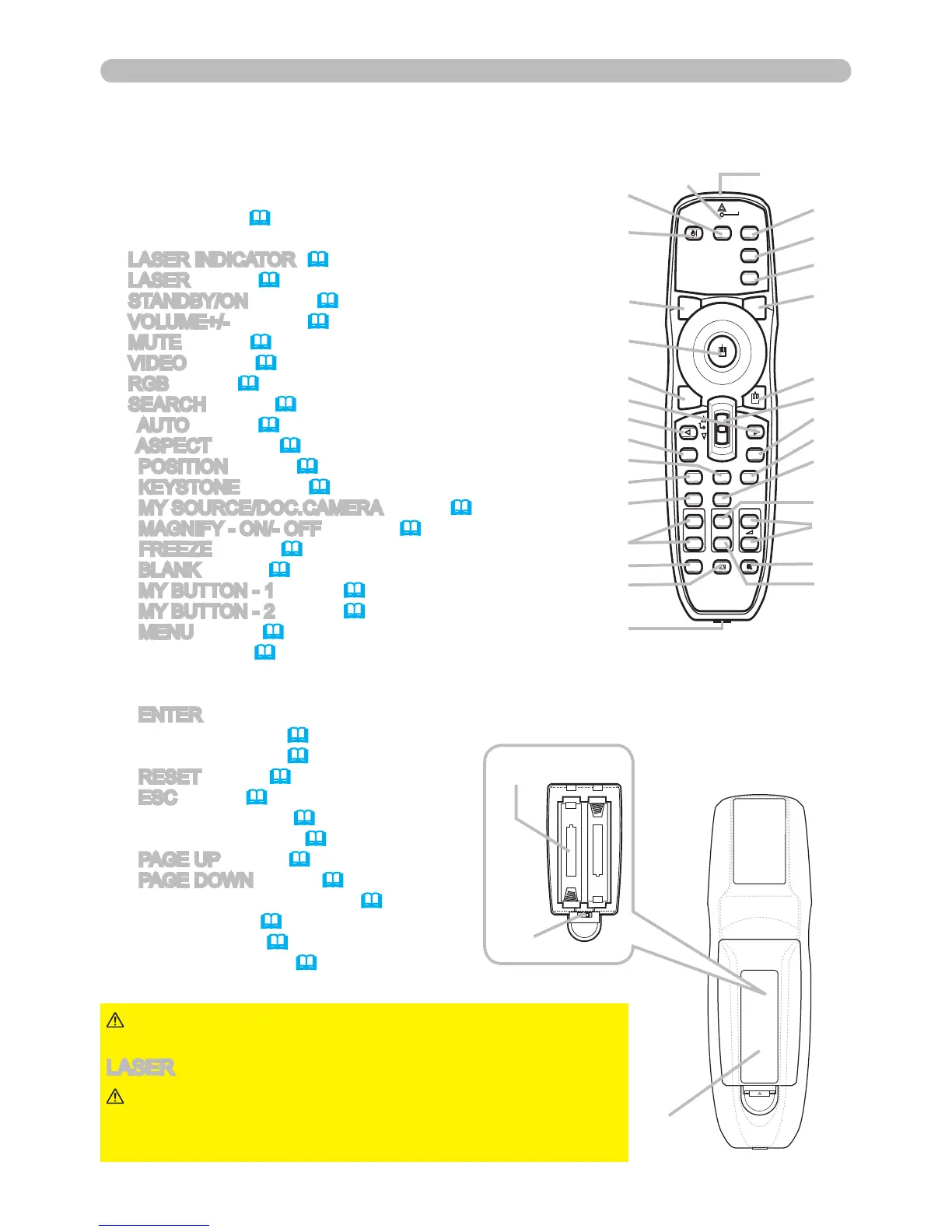

Part names
Remote control
(1) Laser pointer (14)
It is a beam outlet.
(2)
LASER INDICATOR (14)
(3)
LASER button (14)
(4)
STANDBY/ON button (17)
(5)
VOLUME+/- buttons (18)
(6)
MUTE button (18)
(7)
VIDEO button (19)
(8)
RGB button (18)
(9)
SEARCH button (19)
(10)
AUTO button (20)
(11)
ASPECT button (19)
(12)
POSITION button (21)
(13)
KEYSTONE button (21)
(14)
MY SOURCE/DOC.CAMERA button (19)
(15)
MAGNIFY - ON/- OFF buttons (22)
(16)
FREEZE button (22)
(17)
BLANK button (23)
(18)
MY BUTTON - 1 button (46)
(19)
MY BUTTON - 2 button (46)
(20)
MENU button (24)
(21) Lever switch (
24) : acting 3 functions as below.
Cursor button ▲ : to slide toward the side marked ▲.
Cursor button ▼ : to slide toward the side marked ▼.
ENTER button : to push down the center point.
(22) Cursor button ◄ (
24)
(23) Cursor button ► (
24)
(24)
RESET button (24)
(25)
ESC button (24)
(26) Mouse left button (
16)
(27) Mouse right button (
16)
(28)
PAGE UP button (16)
(29)
PAGE DOWN button (16)
(30) Wired remote control port (
16)
(31) Battery cover (
14)
(32) Battery holder (
14)
(33) Frequency switch (
15)
►Do not look into the beam outlet and
point the beam at people and pets while pressing the
LASER button, since the beam is not good for eyes.
WARNING
►Note that the laser beam may result
in hazardous radiation exposure. Use the laser pointer
only for pointing on the screen.
CAUTION
BLANK LASER
ASPECT
PUSH
ENTER
PAGE UP
LASER
INDICATOR
MY SOURCE/
DOC.CAMERA
SEARCH
STANDBY/ON VIDEO RGB
PAGE DOWN
ESC MENU RESET
POSITION AUTO
MAGNIFY
ON
OFF
MY BUTTON
1
2
VOLUME
+
-
FREEZE KEYSTONE MUTE
(11)
(23)
(22)
(28)
(20)
(25)
(12)
(15)
(16)
(13)
(30)
(27)
(21)
(29)
(24)
(10)
(18)
(5)
(6)
(19)
(26)
(17)
(4)
(7)
(2) (1)
(3)
(8)
Back of
the remote control
(32)
(33)
(31)
(14)
(9)
