Hitachi CPX3 - Control Panel; Remote Control

5

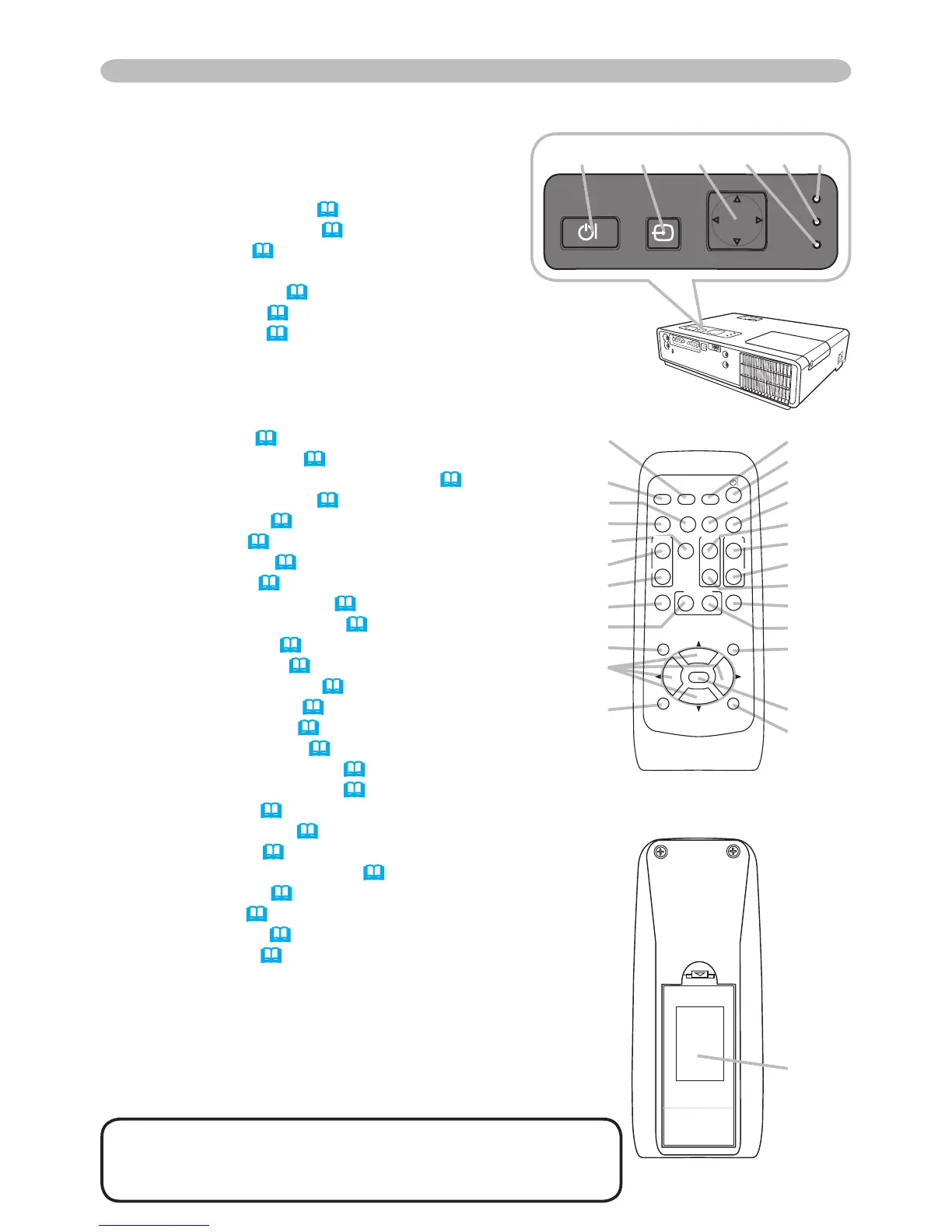

Part names
Control panel
(1) STANDBY/ON button (

13)
(2) INPUT/ENTER button (

14, 20)
(3) MENU button (

20)
It consists of four cursor buttons.
(4) POWER indicator (

13, 57)
(5) TEMP indicator (

57)
(6) LAMP indicator (

57)
Remote control
(1) VIDEO button (

15)
(2) COMPUTER button (

14)
(3) MY SOURCE/DOC.CAMERA button (

15)
(4) STANDBY/ON button (

13)
(5) ASPECT button (

15)
(6) AUTO button (

17)
(7) SEARCH button (

15)
(8) BLANK button (

19)
(9) MAGNUFY - ON button (

12, 18)
(10) MAGNIFY - OFF button (

12)
(11) FREEZE button (

19)
(12) PAGE UP button (

12)
(13) PAGE DOWN button (

12)
(14) VOLUME + button (

14)
(15) VOLUME - button (

12, 14)
(16) KEYSTONE button (

18)
(17) MY BUTTON - 1 button (

40)
(18) MY BUTTON - 2 button (

40)
(19) MUTE button (

14)
(20) POSITION button (

17)
(21) MENU button (

20)
(22) ▲/▼/◄/► cursor buttons (

12, 20)
(23) ENTER button (

12, 20)
(24) ESC button (

12, 20)
(25) RESET button (

12, 20)
(26) Battery cover (

11)
