Hitachi DH 30PC2 - OPTIONAL ACCESSORIES; Drilling Anchor Holes; Knock-in Anchor

19
English
Taper mode Code No. Applicable drill bit
7/16" (11 mm)
1/2" (12.3 mm)
303617
1/2" (12.7 mm)
9/16" (14.3 mm)
9/16" (14.5 mm)
11/16" (17.5 mm)
303618 7/8" (21.5 mm)
A-taper 303619
B-taper 303620
External dia. Code No.
7/16"
944460
(11 mm)
1/2"
944461
(12.3 mm)
1/2"
993038
(12.7 mm)
9/16"
944462
(14.3 mm)
9/16"
944500
(14.5 mm)
11 / 16 "
944463
(17.5 mm)
7/8"
944464
(21.5 mm)
Morse taper
(No. 1)
Drill bit
(Taper
shank)
Taper shank adaptor formed A-
taper or B-taper is provided as an
optional accessory, but drill bit for
it is not provided.
Morse taper
(No. 2)
Drill bit
(Taper
shank)
Cotter (Code No. 944477)
(1) Drill Bit (Taper Shank) (2) Taper Shank Adaptor
(SDS-plus shank)
OPTIONAL ACCESSORIES ...........sold separately

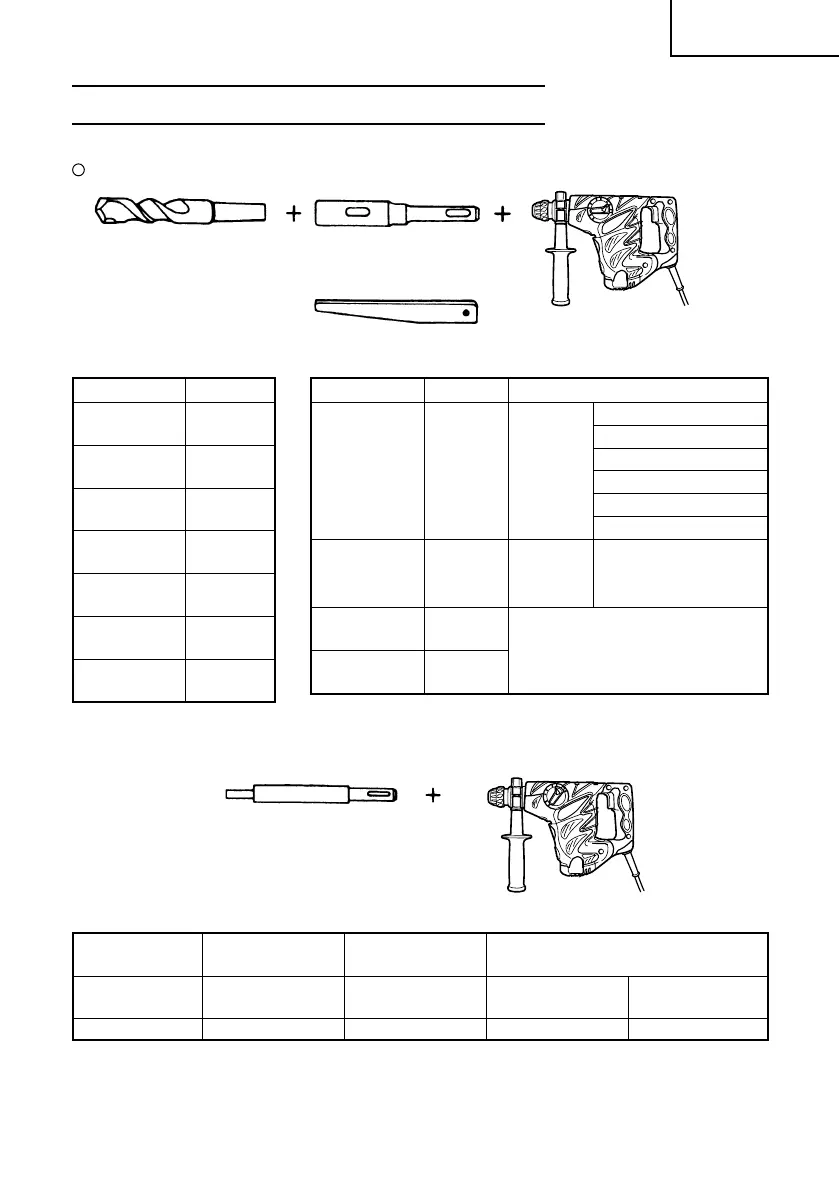

1. Drilling anchor holes (Rotation + Hammering)
Drill Bit (Taper shank) and taper shank adaptor
<Outer wedge type with the female screw>
Anchor size
W 1/4" W 5/16" W 3/8"
(6.3 mm) (8 mm) (9.5 mm)
Overall Length
10-1/4" 10-1/4" 6-1/4" 10-1/4"
(260 mm) (260 mm) (160 mm) (260 mm)
Code No. 302976 302975 303621 302974
Anchor Setter (for anchor setting)
(SDS-plus shank)
2. Knock-in anchor (Hammering only)
