7
English
SPECIFICATIONS
Motor Single-Phase, Series Commutator Motor
Power Source Single-Phase, 120V 60Hz
Current 7.4A
Capacity Concrete: 5/32" – 1-3/16" (4mm – 30mm)
Steel: 1/2" (13mm)
Wood: 1-1/4" (32mm)
No-Load Speed 0 – 850/min.
Full-load Impact Rate 0 – 3,700/min.
Weight 9.5 lbs (4.3 kg)
FUNCTIONAL DESCRIPTION
NOTE:
The information contained in this Instruction Manual is designed to assist you in
the safe operation and maintenance of the power tool.
NEVER operate, or attempt any maintenance on the tool unless you have first
read and understood all safety instructions contained in this manual.
Some illustrations in this Instruction Manual may show details or attachments
that differ from those on your own power tool.

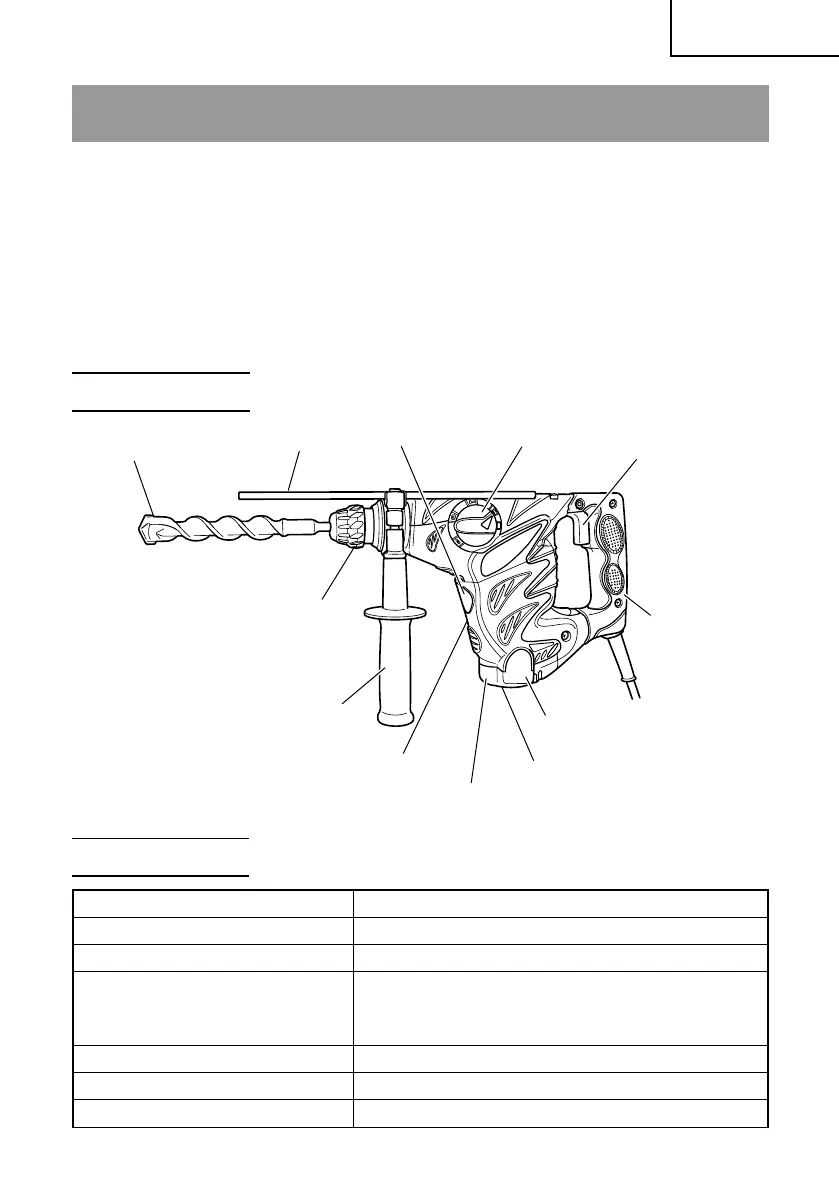

NAME OF PARTS
Housing
Nameplate
Drill bit
Tail cover
Grip
Side handle
Change lever
Stopper
Trigger
Set screw (under the tail cover)
Handle
Brush cap
(inside the tail cover)
Fig. 1
