Hitachi DS120 G2 User Manual

ABOUT THE SYSTEM A TOUR OF THE SYSTEM
1-7
1.3 A Tour of the System
System Overview
The server is available as a 2.5” storage drive configuration.

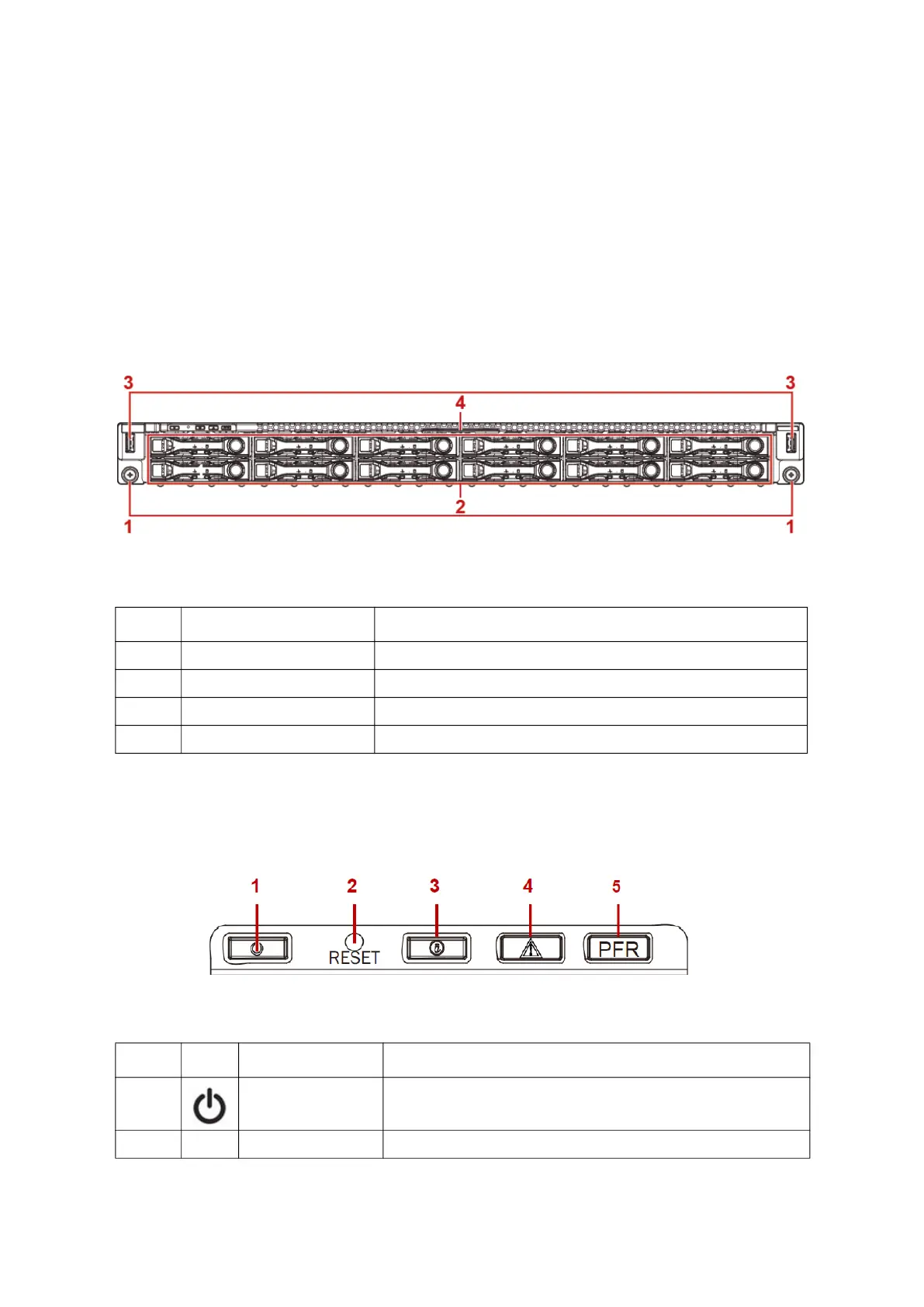

System Front View
The 2.5" storage drive system is displayed in the following image:
Figure 1-1. 2.5" Storage Drive System Front View
Front Control Panel (FCP)
For purposes of this procedure, the FCP is used for the numbering indicators.
Figure 1-2. Front Control Panel
Table 2: Front View
NO. NAME DESCRIPTION
1. Thumb screw Secure the system to rack frame.
2. 2.5" storage drive tray House up to twelve 2.5" storage drive (15mm).
3. USB port Connect to USB device.
4. Asset tag Record serial number or other important information.
Table 3: Front Control Panel Definition
NO. ICON NAME DESCRIPTION
1.
Power button with
LED
Power on / off
Blue on – S0 system power on; off – S5 system power off
2. Reset button Soft reset system function
