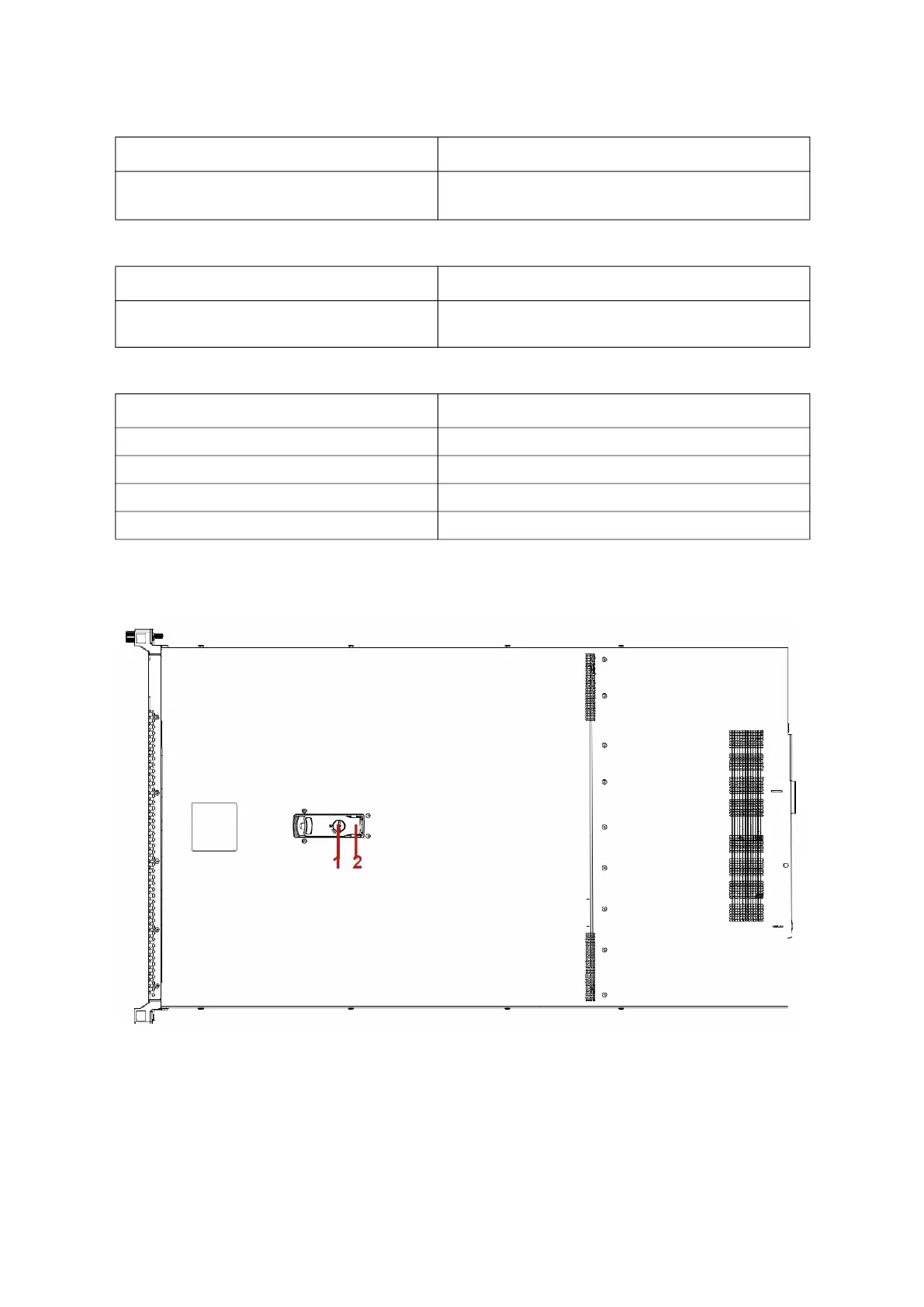

ABOUT THE SYSTEM SYSTEM TOP VIEW
1-10
Table 6: AC Power Supply Units by Model
Table 7: DC Power Supply Units by Model
Table 8: Power Supply Unit LED
System Top View
Figure 1-6. System Top View
PSU AC INPUT
(2) 800W/1200W/1600W 86mm
Titanium/Platinum redundant PSU
100-240VAC 50/60Hz, AC/HVDC support
PSU DC INPUT
(2) 1200/1600W 86mm
Titanium/Platinum redundant PSU
48V DC
PSU LED COLOR DESCRIPTION
Amber On PSU failure
Green On PSU good
Green Blinking at 0.5Hz PSU standby
Green Blinking at 2Hz PSU cold redundancy standby
