● AC protector
The AC protector shuts off the circuit to protect the generator if the operating
range is exceeded or there is a fault in the connected appliance.
ON : The power is supplied.
OFF : The circuit is shut off and the power is not supplied.
CAUTION: If the protector has functioned to shut off during operation
of the generator, check the following items and, after
removing the cause of the trouble, turn the knob ON again.
● Check the connected appliances for any fault.
● Check if too much power is output.
● DC protector
The DC protector shuts off the circuit to protect the generator if the operating
range is exceeded or there is a fault in the battery.
ON : The power is supplied.
OFF : The circuit is shut off and the power is not supplied.
CAUTION: If the protector has functioned to shut off during operation
of the generator, check the following items and, after
removing the cause of the trouble, turn the knob ON again.
● Check the battery for any fault.
● Check if too much power is output.
● Spark plug maintenance cover
Removed for inspection or cleaning of the spark plug.
● Oil maintenance cover
Removed if the engine oil level is inspected or engine oil is supplied or
replaced.

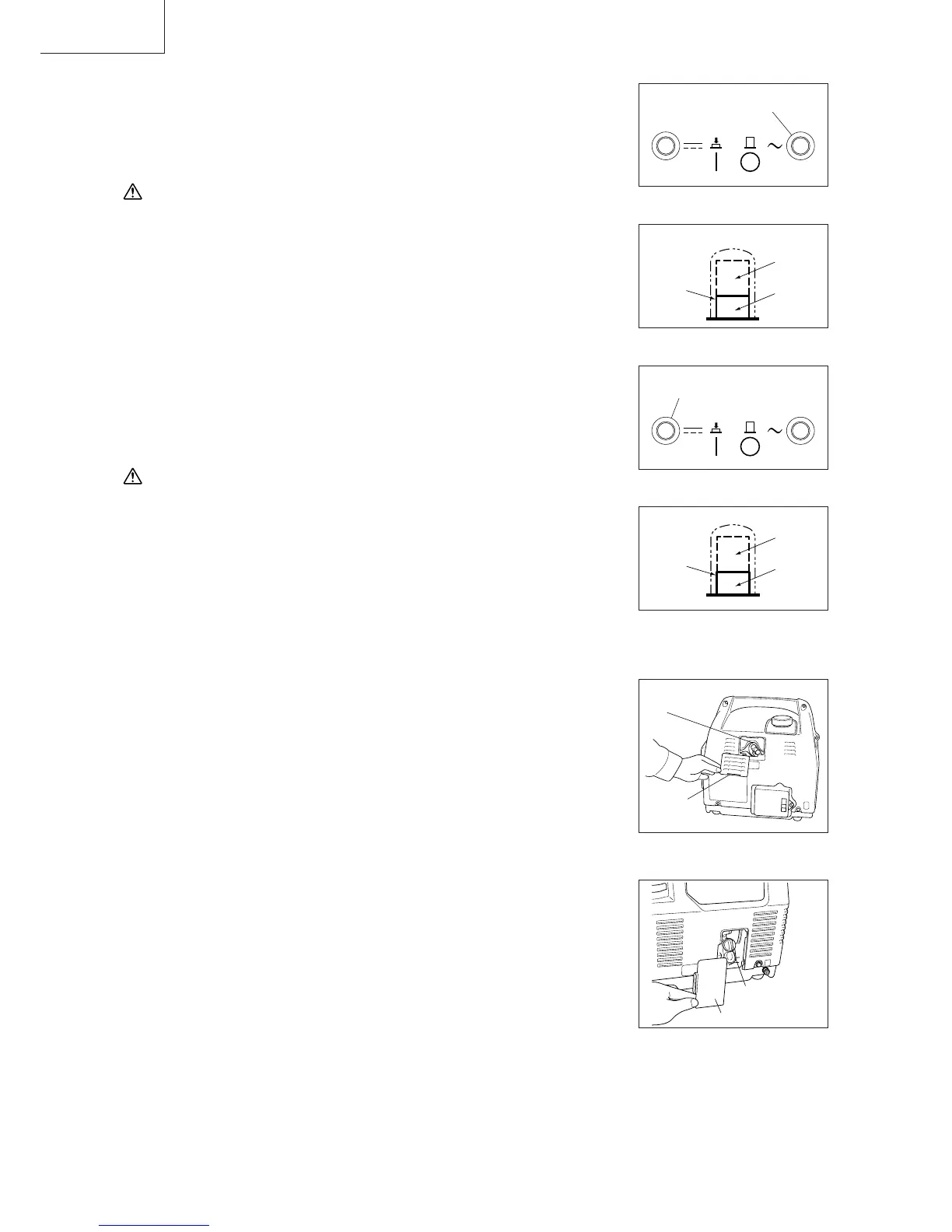

Fig. 17
PROTECTOR
AC protecto
Fig. 18
Knob
Fig. 19
PROTECTOR
DC protector
OFF position
ON position
Fig. 20
Knob
OFF position
ON position
Fig. 21
Spark plug
Maintenance
cover
Fig. 22
Oil filler cap
Maintenance cover
