Hitachi EH-D6EAN - Online Settings

Chapter 3 Programming
3 – 48

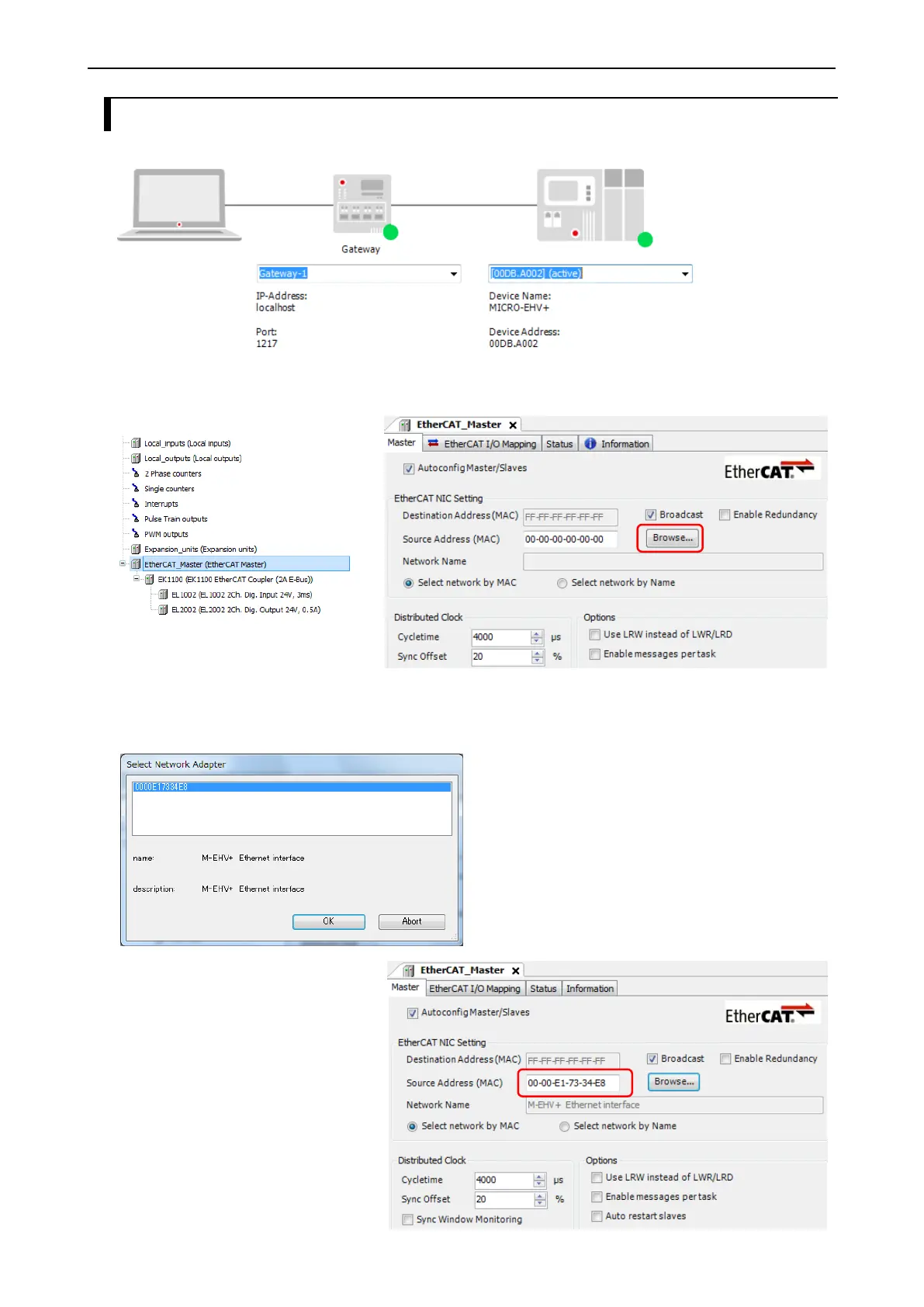

3.16.2 Online settings
Open communication to CPU according to the section 3.8 Communication settings.
Double click on EtherCAT_Master or right click and choose “Edit Object” to open EtherCAT_Master window.
Click “Browse” button.
If active path is correctly set, the CPU is detected in “Select Network Adapter” dialog box as below. Click [OK] to
set the MAC address of the CPU in “Source Address (MAC)” as below.
