Chapter 2 Specifications
2 – 9

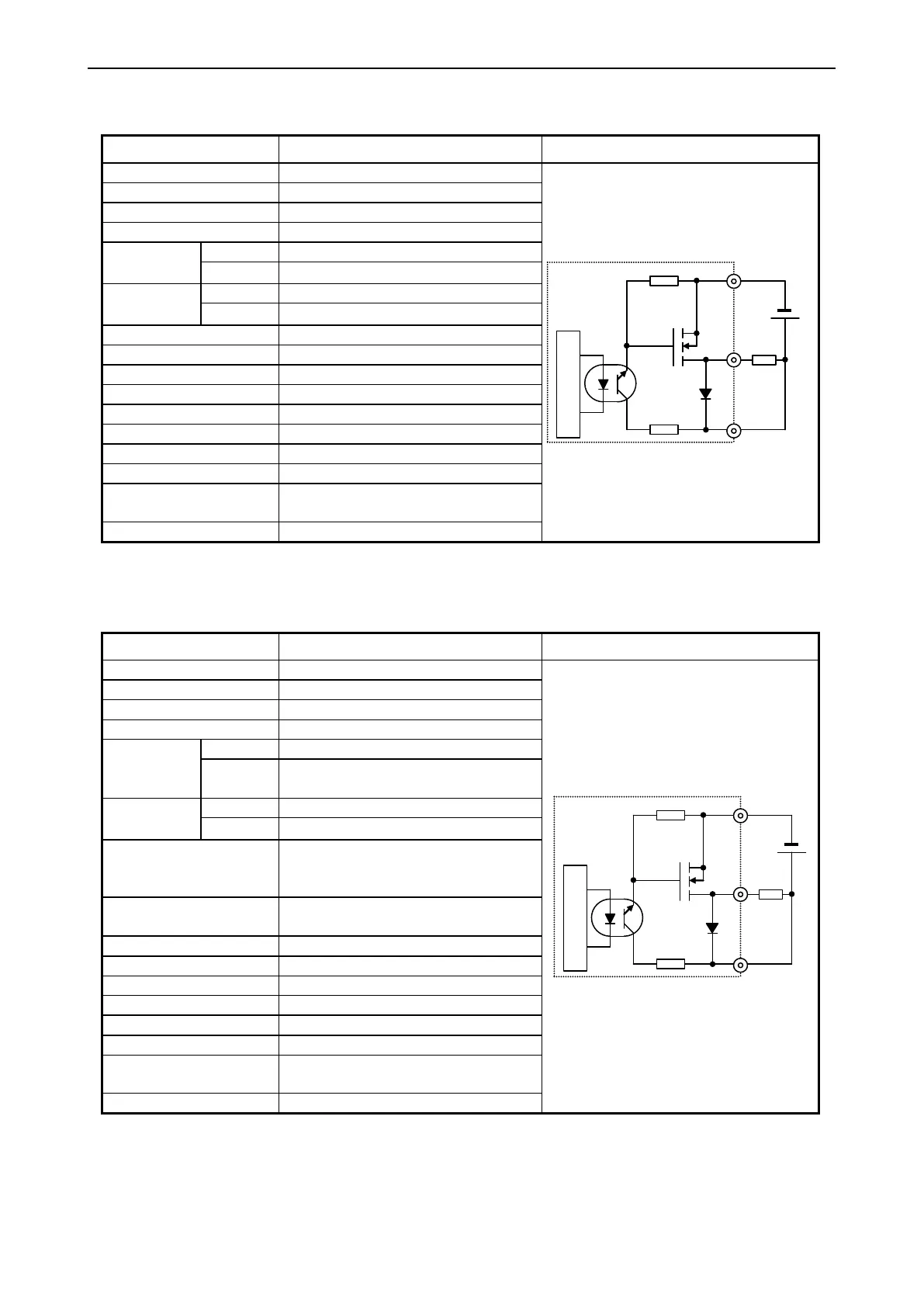

(2) DC output (Output 0 to 3 on MV-D64DT, MV-D40DT, MV-D20DT)
Item
Specifications
Internal circuit diagram
Output specifications
Transistor output (sink type)
Internal circuit
V10
0
C10
Rated load voltage
24 / 12 V DC (+10%, -15%)
Minimum switching current
10 mA
Leak current
0.1 mA (max.)
Maximum
Load current
1 circuit
0.5 A 24VDC, 0.3 A 12VDC
1 common
2 A
Output
response time
OFF → ON
5 μs (max.) 24 V DC 0.2 A
ON → OFF
5 μs (max.) 24 V DC 0.2 A
Number of outputs
4
Common
1
Surge removing circuit
None
Fuse
None
Insulation system
Photocoupler insulation
Output display
LED indication
External connection
Removable type screw terminal block (M3)
Externally supplied power *
12 to 30 V DC
Insulation
1,500 V or more (external-internal)
500 V or more (external-external)
Output voltage drop
0.3 V DC (max.)
*: It is required to supply 12 to 30V DC between the V and C terminal externally.
(3) DC output (Output 4 and over on MV-D64DT, MV-D40DT, MV-D20DT)
Item
Specifications
Internal circuit diagram
Output specifications
Transistor output (sink type)
Internal circuit
V
4
C
Rated load voltage
24 / 12 V DC (+10%, -15%)
Minimum switching current
10 mA
Leak current
0.1 mA (max.)
Maximum
Load current
1 circuit
0.5 A
1 common
64-point type: 3 A
20/40-point type: 5 A
Output
response time
OFF → ON
0.1 ms (max.) 24 V DC
ON → OFF
0.1 ms (max.) 24 V DC
Number of outputs
64-point type: 20
40-point type: 12
20-point type: 4
Common
64-point type: 3
20/40-point type: 1
Surge removing circuit
None
Fuse
None
Insulation system
Photocoupler insulation
Output display
LED indication
External connection
Removable type screw terminal block (M3)
Externally supplied power *
12 to 30 V DC
Insulation
1,500 V or more (external-internal)
500 V or more (external-external)
Output voltage drop
0.3 V DC (max.)
*: It is required to supply 12 to 30V DC between the V and C terminal externally.
