DRIVING THE MACHINE
4-1

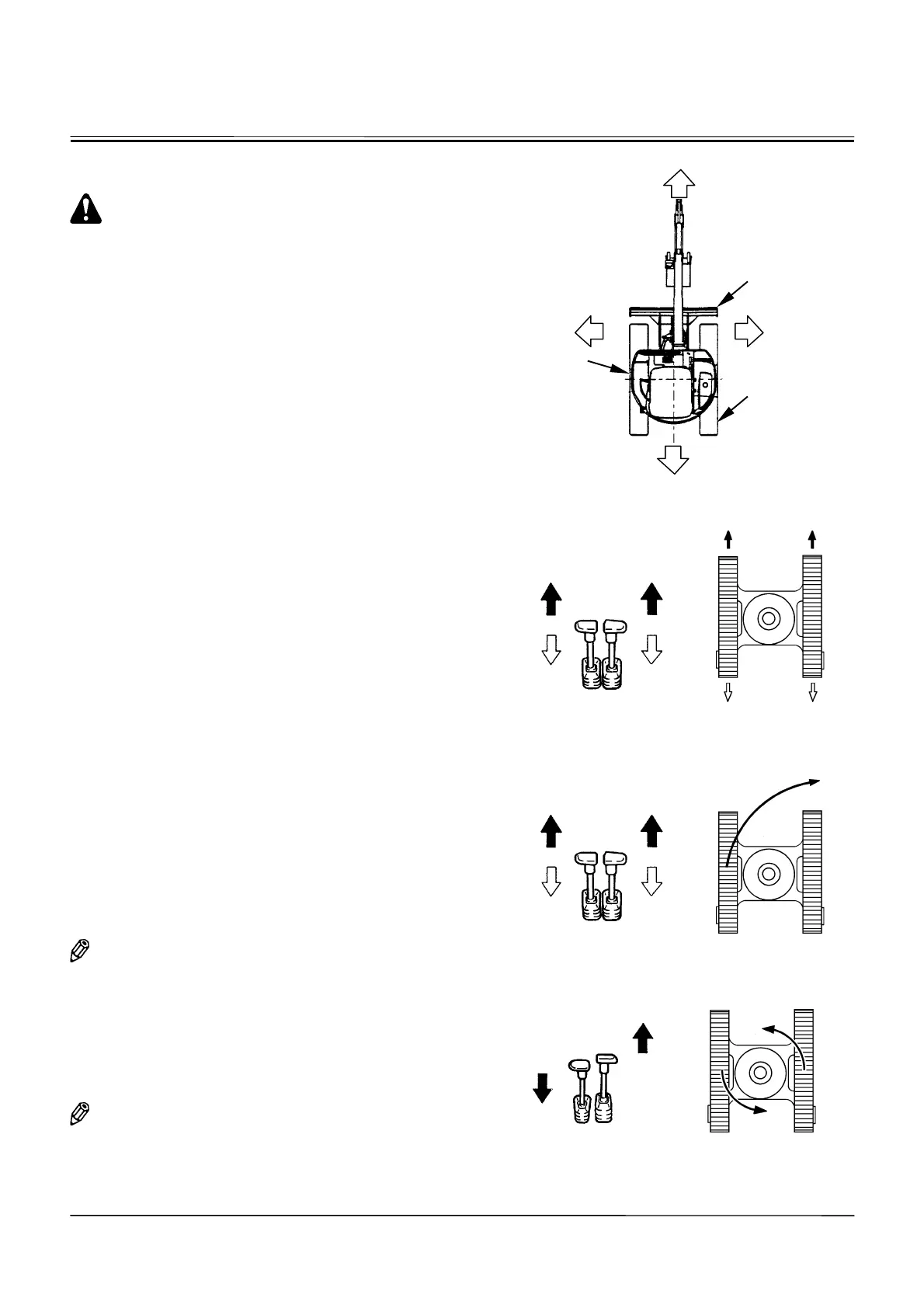

TRAVEL LEVERS
CAUTION: In the standard travelling position,
the blade is located in front of the operator’s seat
and the travel motors at the rear. If the travel
motors are positioned at the front of the machine,
the actions of the travel levers will be reversed.
Be sure to confirm the position of the travel mo-
tors before travelling.
1. Traveling in a Straight Line:
Move both levers forward together to travel forward.
Pull the levers back together to travel in reverse.
2. Pivot Turn:
Right Turn: Move left lever forward
Left Turn: Move right lever forward
3. Spin Turn (short turn):
Move one lever forward and pull the other back.
NOTE: When travel levers are in neutral the travel
brakes are applied automatically.
4. Traveling on Slopes:
(1) Maximum grade: 58% (30 degrees)
(2) When descending, operate the travel levers slowly
and with extra caution.
NOTE: Neutral position: Travel brakes will stop or hold
the machine.
M571-01-001
M104-04-003
M552-04-001
M104-04-005
M552-04-002
M104-04-007
M552-04-003
Blade
Travel Motor
Cab
[Forward and Reverse]
[Pivot Turn]
[Spin Turn]
