Hitachi EX40UR-2 - Group 08 SOLENOID VALVE; DISASSEMBLE AND ASSEMBLE TRAVEL SPEED CHANGE SOLENOID VALVE

1
UPPERSTRUCTURE / Solenoid Valve

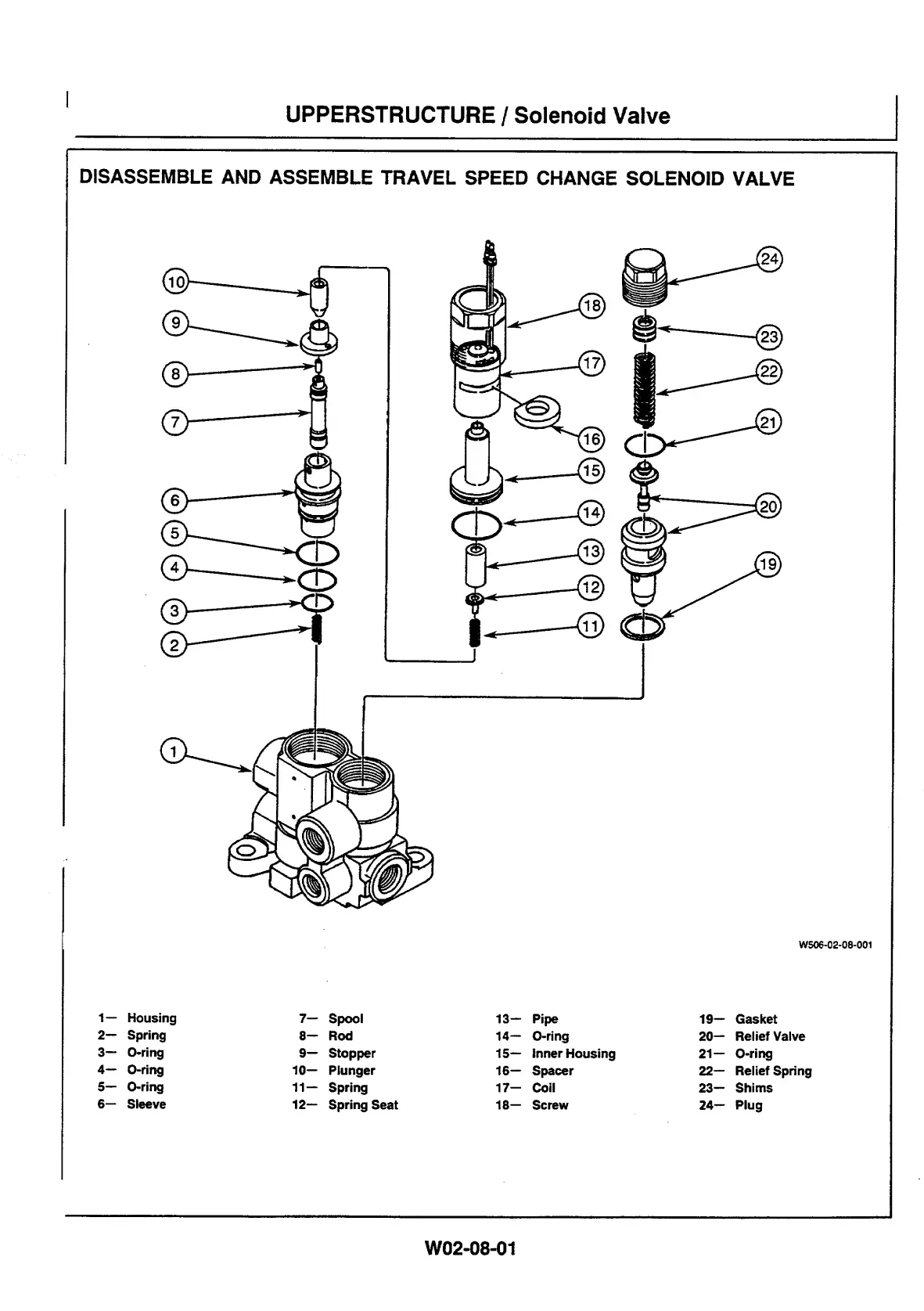

DISASSEMBLE AND ASSEMBLE TRAVEL SPEED CHANGE SOLENOID VALVE
W506-02-08-001
1— Housing 7— Spool
13— Pipe
19— Gasket
2— Spring 8— Rod
14—
0-ring
20—
Relief Valve
3— 0-ring 9— Stopper
15—
Inner Housing
21—
0-ring
4— 0-ring
10— Plunger
16— Spacer
22—
Relief Spring
5— 0-ring
11— Spring
17— Coil
23— Shims
6—
Sleeve
12— Spring Seat
18— Screw
24—
Plug
W02-08-01
