Hitachi EX40UR-2 - DISASSEMBLE AND ASSEMBLE PUMP DEVICE

UPPERSTRUCTURE / Pump Device

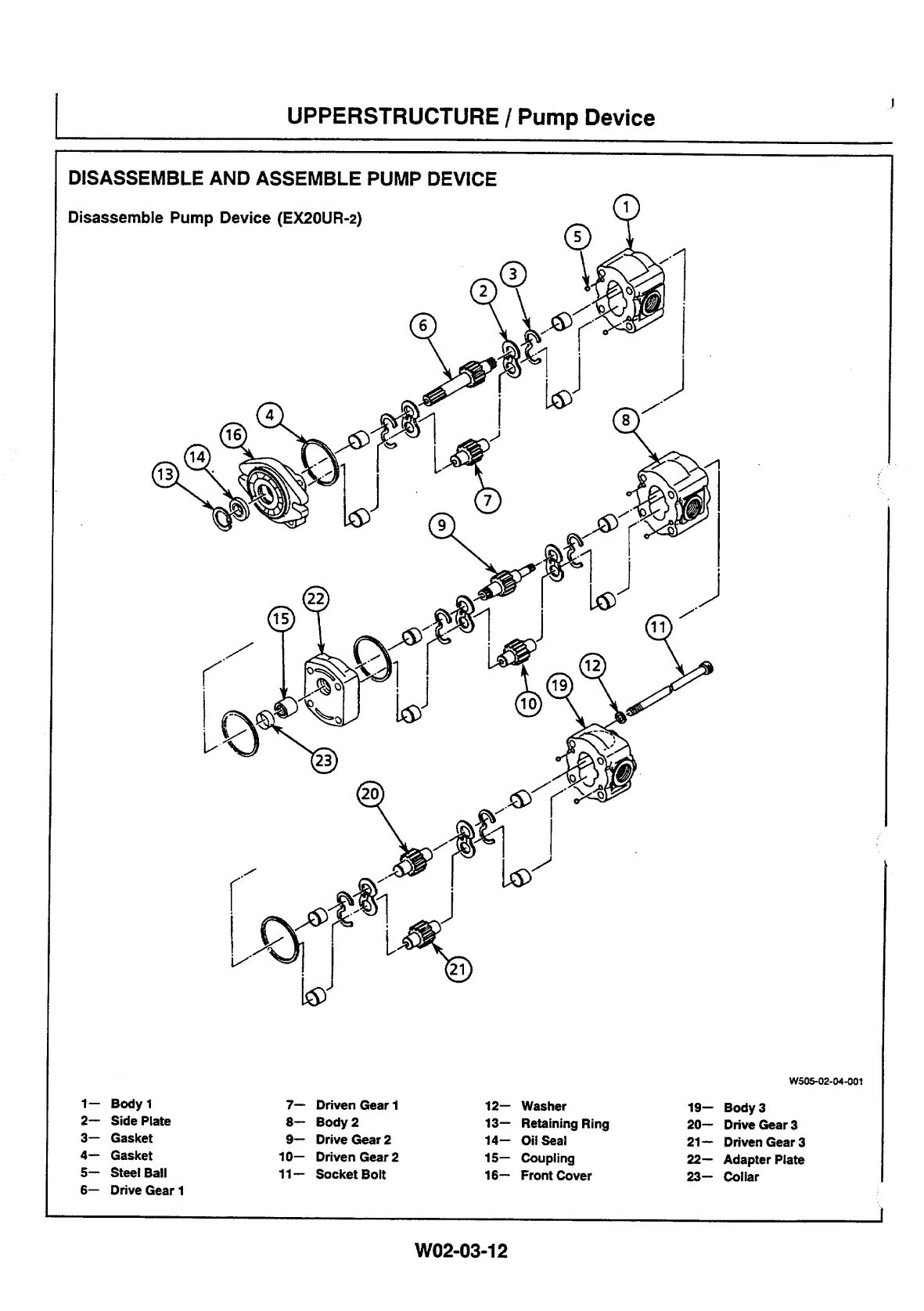

DISASSEMBLE AND ASSEMBLE PUMP DEVICE
Disassemble Pump Device (EX2OUR-2)
W505-02-04-001
1— Body 1 7— Driven Gear 1 12— Washer
19— Body 3
2—
Side Plate
8— Body 2
13— Retaining Ring
20— Drive Gear 3
3— Gasket
9— Drive Gear 2
14— Oil Seal
21—
Driven Gear 3
4— Gasket 10— Driven Gear 2
15—
Coupling
22—
Adapter Plate
5— Steel Ball 11— Socket Bolt 16— Front Cover
23— Collar
6—
Drive Gear 1
W02-03-12
