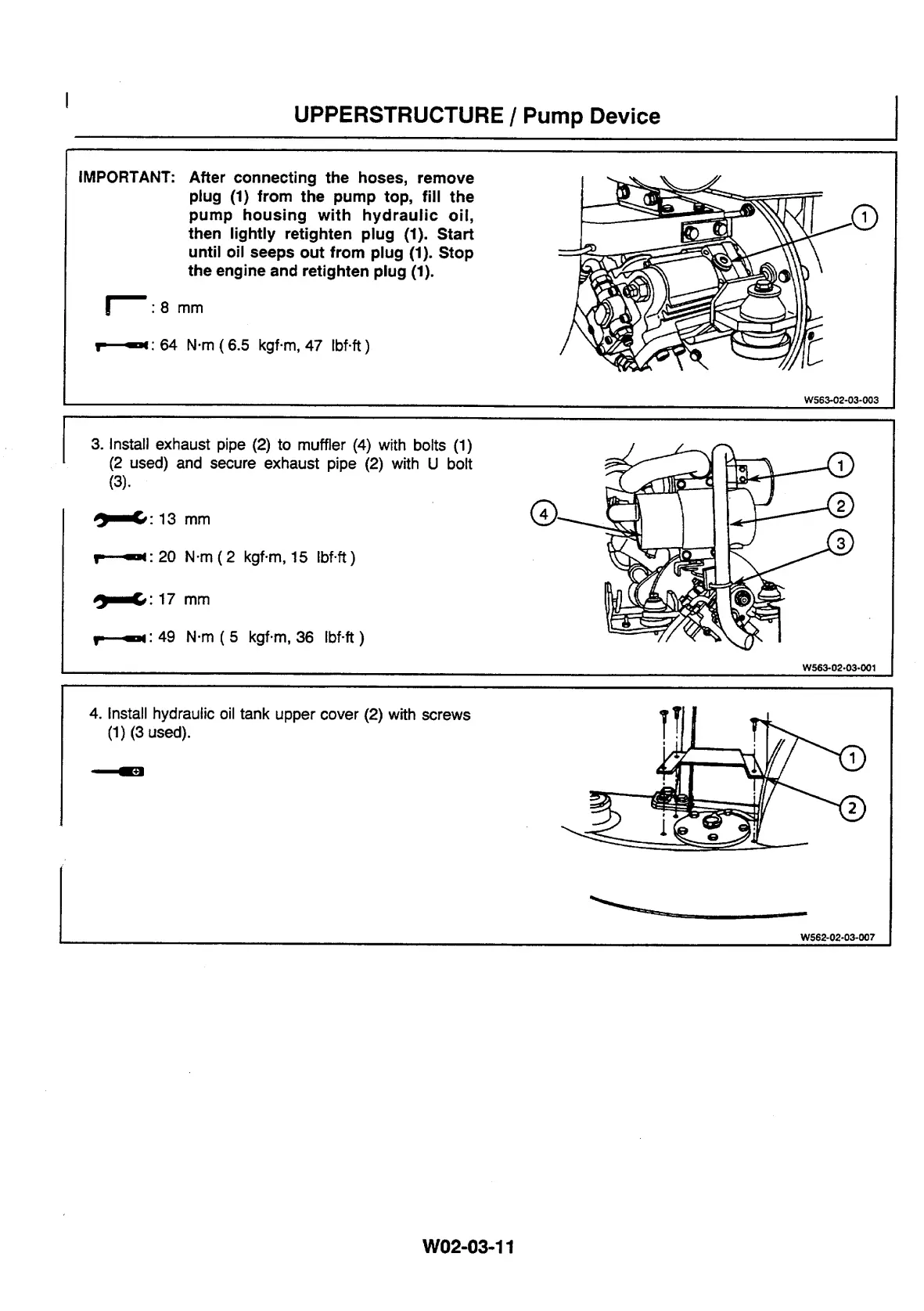

IMPORTANT: After connecting the hoses, remove
plug (1) from the pump top, fill the
pump housing with hydraulic oil,
then lightly retighten plug (1). Start
until oil seeps out from plug (1). Stop
the engine and retighten plug (1).
:
8 mm
tea: 64 N-rn ( 6.5 kgf-m, 47 lbf-ft )
W563-02-03-003
3.
Install exhaust pipe (2) to muffler (4) with bolts (1)
(2 used) and secure exhaust pipe (2) with U bolt
(
3
).
10=4.: 13 mm
r—sa : 20 N1-rn ( 2 kgf-m, 15 lbf-ft )
17 mm
r.--
■
31: 49 N-rn ( 5 kgf•m, 36 lbf-ft )
W563-02.03-001
4.
Install hydraulic oil tank upper cover (2) with screws
(1) (3 used).
W562-02.03-007
UPPERSTRUCTURE / Pump
Device
W02-03-11
To Next Page
