W05-02-05
[
ENGINE/Engine

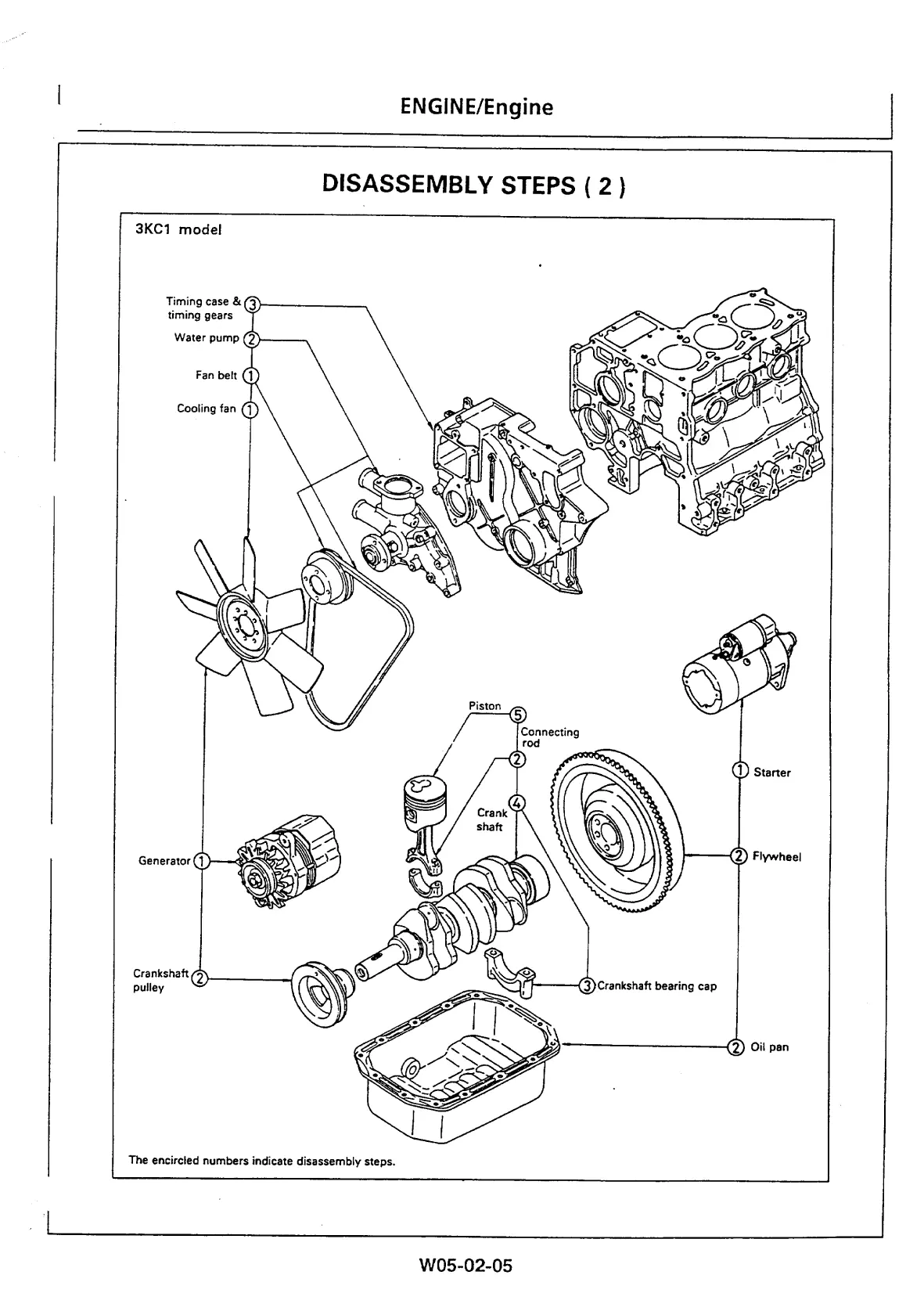

DISASSEMBLY STEPS ( 2 )
3KC1 model
Timing case &
timing gears
Water pump
Cooling fan
Connecting
rod
Crankshaft
pulley
The encircled numbers indicate disassembly steps.
