4-1. Selling Point Descriptions
(1) Ball and needle bearings employed for all bearings to ensure outstanding durability.
One ball bearing and one needle bearing at the spindle and two ball bearings at the armature are employed to
improve the durability appreciably.
(2) Nonskid large soft grip
Most of the conventional soft grips cover only the handle. The Model FDV 16VB2 is equipped with the nonskid
grip that largely covers both the handle and the housing (drill chuck side) to prevent slipping even if the
operator holds the Model FDV 16VB2 in various ways.
(3) Keyless chuck for quick and easy replacement of accessory tools
Adoption of a keyless chuck in place of a conventional chuck means that the bothersome chuck wrench is no
longer necessary, and that mounting and replacement of accessory tools is quicker and easier.
To mount or remove a bit from the keyless chuck, simply grasp the ring with one hand, and turn the sleeve
with the other hand.

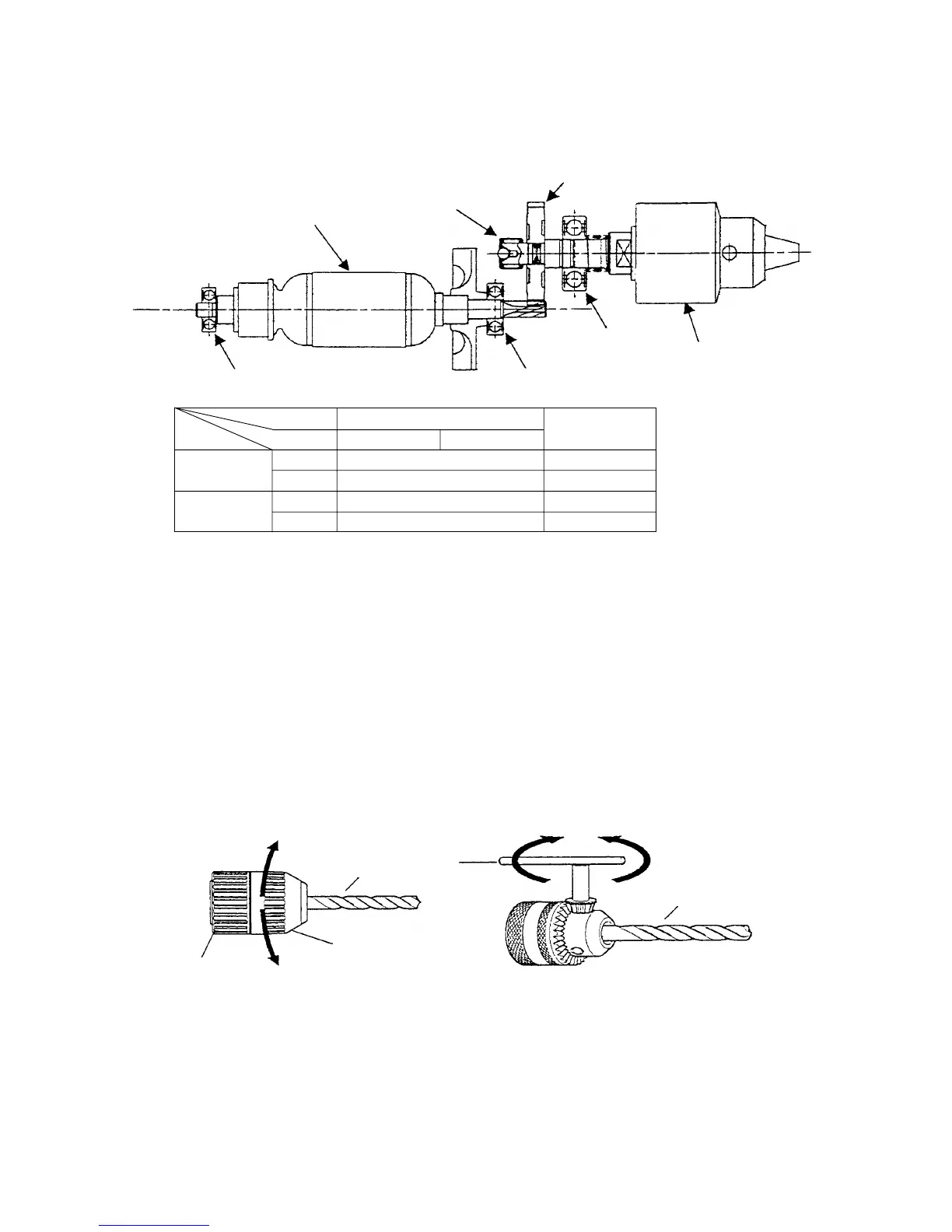

Armature
Gear
Drill chuck
d
c
a
b
Tighten
Bit
Sleeve
Ring
Tighten
Loosen
Bit
Chuck
wrench
Bearings
Maker
Armature's
bearing
Spindle's
bearing
Model
HITACHI
FDV 16VB2
FDV 16VB
C-1, C-2
Ball bearing
Needle bearing
Ball bearing
Ball bearing
Ball bearing
Metal bearing
Ball bearing
Ball bearing
a
d
c
b
