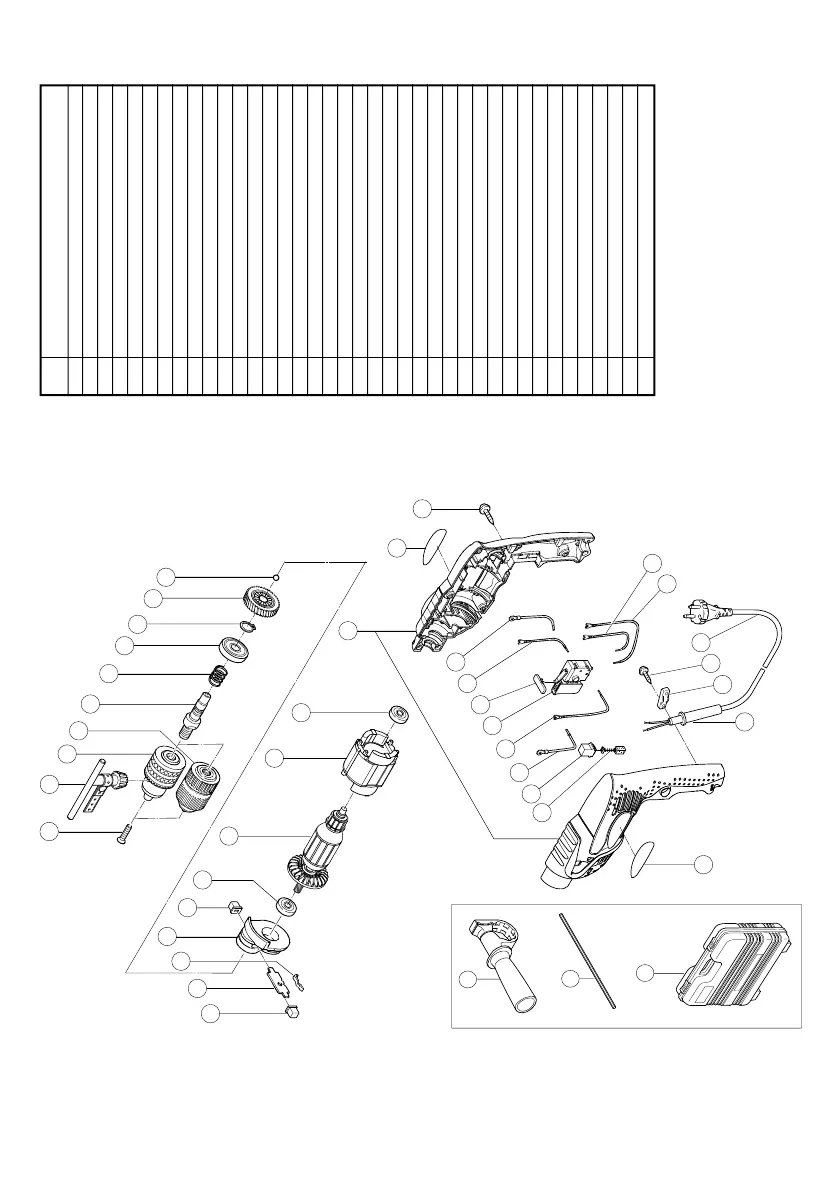

Hitachi FDV16VB2 - Parts List; Exploded View and Part Numbers

42
503
502
501
1
2
3
3
4
5
6
7
8
9
11
10
10
12
13
14
15
16
17
18
21
22
23
24
25
27
26
28
19
20
35
34
31
30
32
33
29
Item
Part Name
No.
1Flat Hd. Screw (A) (Left Hand) M6 × 25
2 Chuck Wrench For 13VLB-D, 13VLR-D
3 Drill Chuck 13VLRB-D
3Drill Chuck 13VLRC-N (W/O Chuck Wrench)
4Spindle
5 Spring
6 Ball Bearing (6201VVCMPS2S)
7 Retaining Ring For D12 Shaft
8 Gear
9Steel Ball D4.76
10 Change Knob
11 Change Plate
12 Spring (A)
13 Holder
14 Ball Bearing (608VVMC2EPS2L)
15 Armature
16 Stator
17 Ball Bearing (326VVMC2ERPS2S)
18 Housing (A), (B) Set
19 Nameplate
20 Tapping Screw (W/Flange) D4 × 20 21 Carbon Brush
22 Brush Holder
23 Choke Coil
24 Internal Wire (D)
25 Switch
26 Push Button
27 Internal Wire (C)
28 Choke Coil
29 HITACHI Label
30 Cord Armor
31 Cord Clip
32 Tapping Screw (W/Flange) D4 × 16
33 Cord
34 Internal Wire (B)
35 Internal Wire (A)
501 Side Handle 502 Depth Gauge
503 Case
