Number Item Description
3 ALM LED Red: Power supply unit can
be replaced.
Large form-factor drive tray (DBL/DBLE)
The following describes the physical specications of the large form-factor drive tray.
Name Model name Height
Number of
drive slots Drive type
DBL DW-F800-DBLC 2U (88.2 mm) 12 3.5 inch (LFF)
DBLE DW-F800-DBLE 2U (88.2 mm) 12 3.5 inch (LFF)

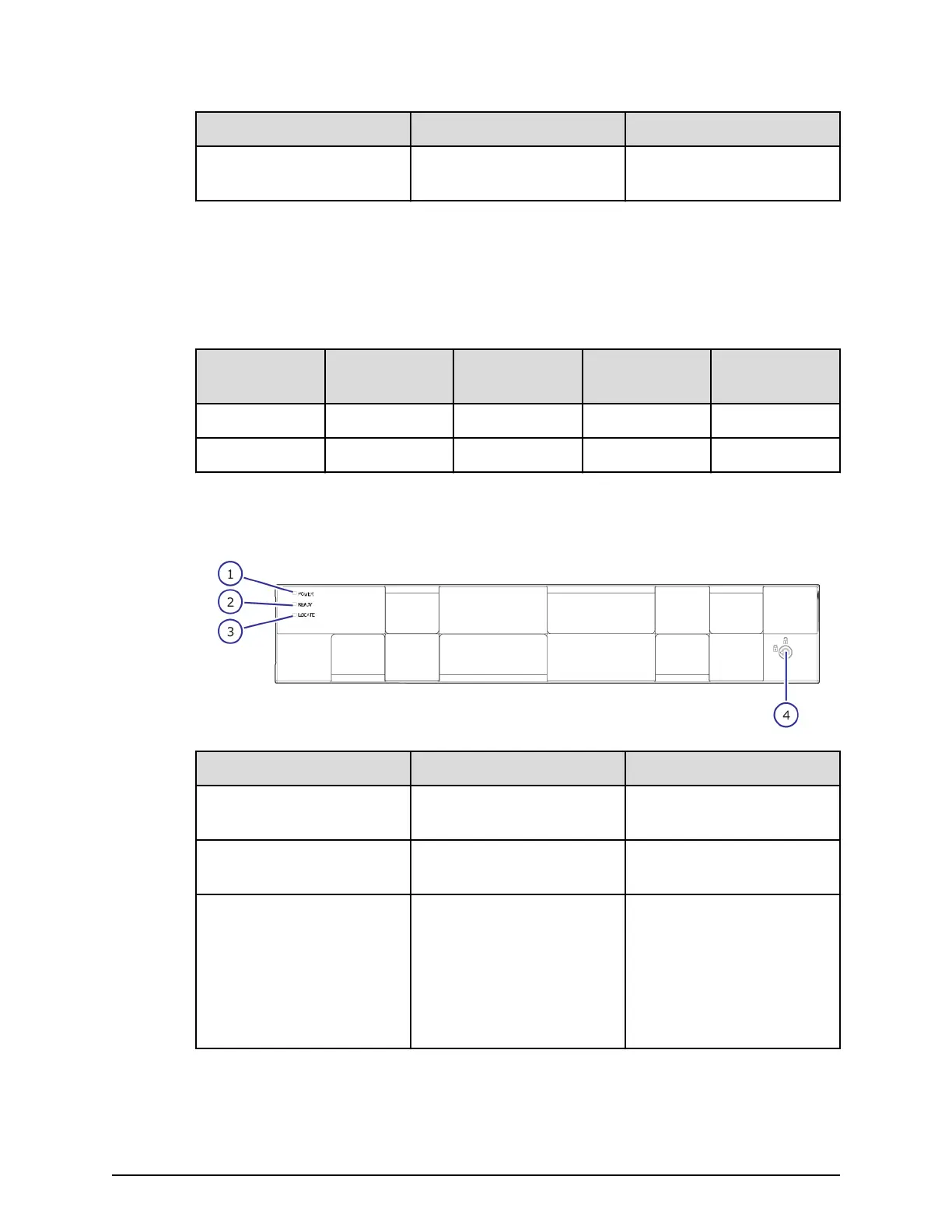

LFF with front panel bezel
Number Item Description
1 POWER LED Green: Drive tray is
powered on.
2 READY LED Green: Drive tray is
operational.
3 Locate LED Amber:
■
Indicates the location of
the chassis.
■
Can be turned on or
turned o by the
maintenance utility.
Large form-factor drive tray (DBL/DBLE)
Chapter 3: Drive trays
Hitachi Virtual Storage Platform G700 Hardware Reference Guide 31
