8-7. Tool Retainer

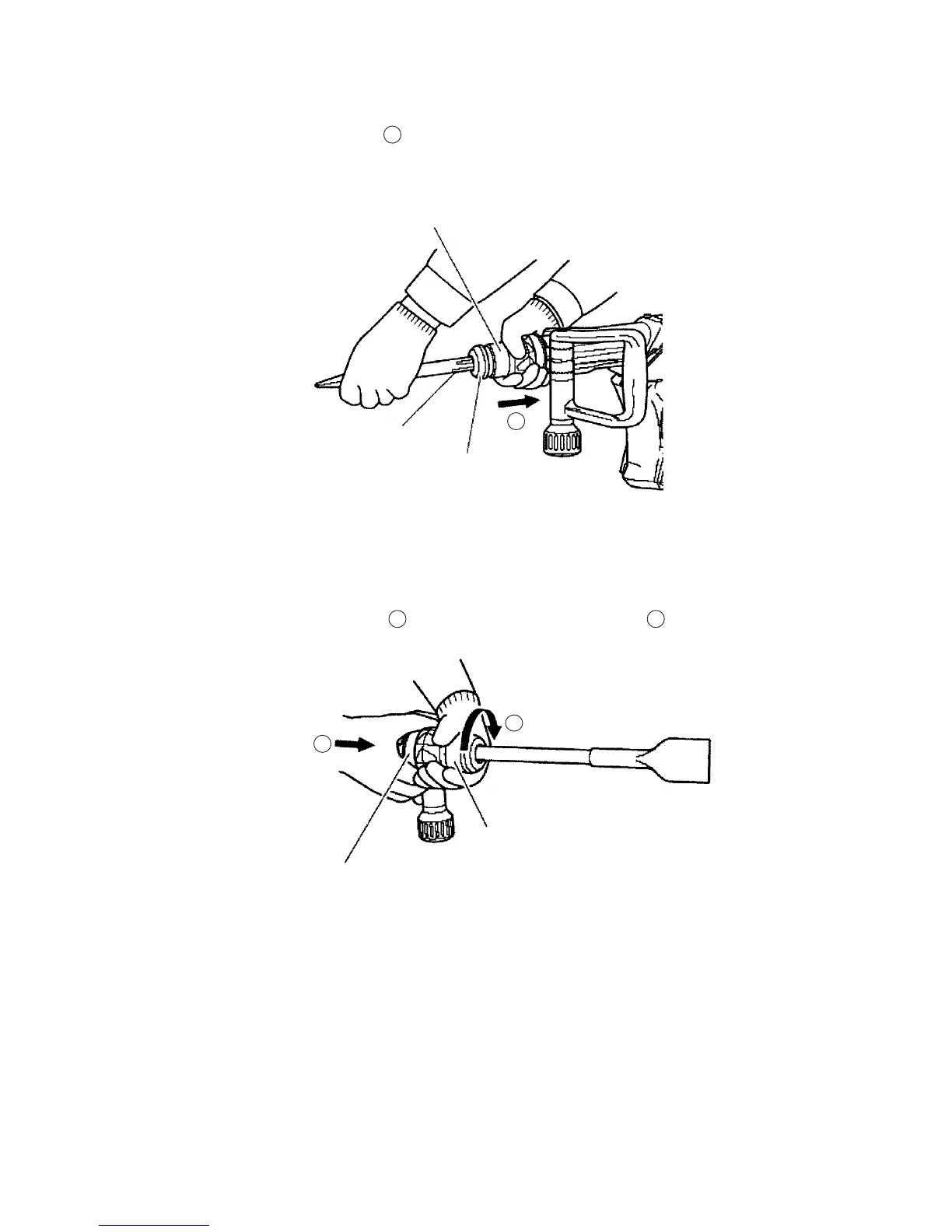

The Model H 45MRY is equipped with a slide-type tool retainer. Tools can be attached and detached just by
pulling grip (A). While pulling grip (A) in A direction, insert the tool in the hole of the front cap (Fig. 9). Adjust the
groove position by turning the tool and push it in to the end. Lock the tool by returning grip (A) back to the original
position.
Fig. 9
Grip (A)
Front cap
Tool shank
A
8-8. Adjusting Mechanism for the Tool Swivel Angle
The tool swivel angle can be easily changed in 12 steps. The tool swivel angle can be set freely to the desired
position by pushing out grip (B) ahead in A direction and then turning grip (A) in B (Fig. 11).
Fig. 10
Grip (A)
Grip (B)
B
A
