Mounting the fan guide

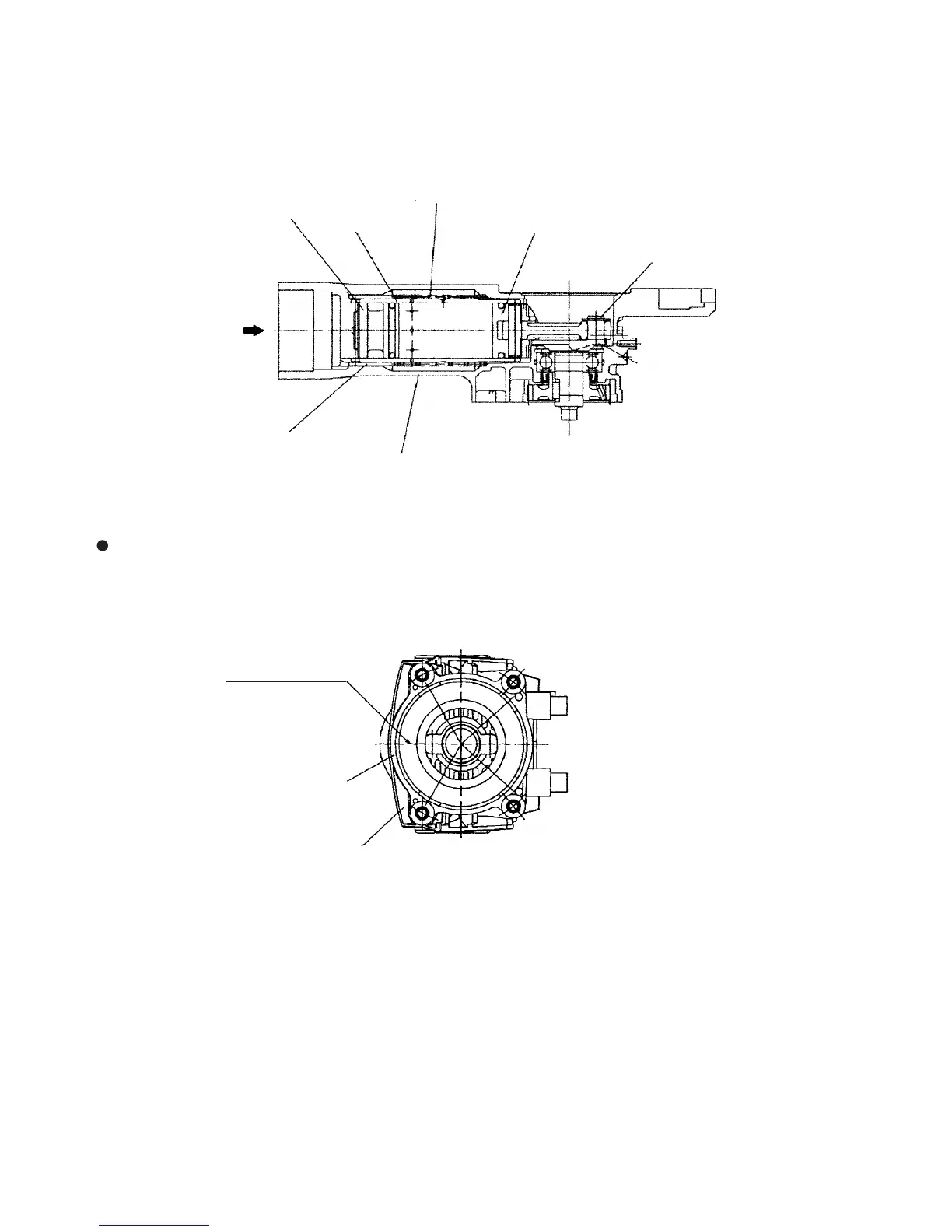

Mount the Fan Guide [106] to the Housing Ass'y [114] paying attention to the direction of the 0.05 convex line
(Fig. 23).
Fig. 23
Fan guide
Housing ass'y
Move the crank pin of the Crank Shaft [42] then move the Piston [35] to the top dead center. Insert Spring (B)
[32] into the cylinder case of the Cylinder Crank Case [47] then insert the assembly of the Cylinder [30], Slide
Sleeve [31] and Striker [28] into the Cylinder Crank Case [47] (Fig. 22).
Fig. 22
Cylinder
Crank shaft
Cylinder crank case
Striker
Spring (B)
Piston
Slide sleeve
Crank pin portion
0.05 convex line
