--- 27 ---
9-1-5. Internal wiring

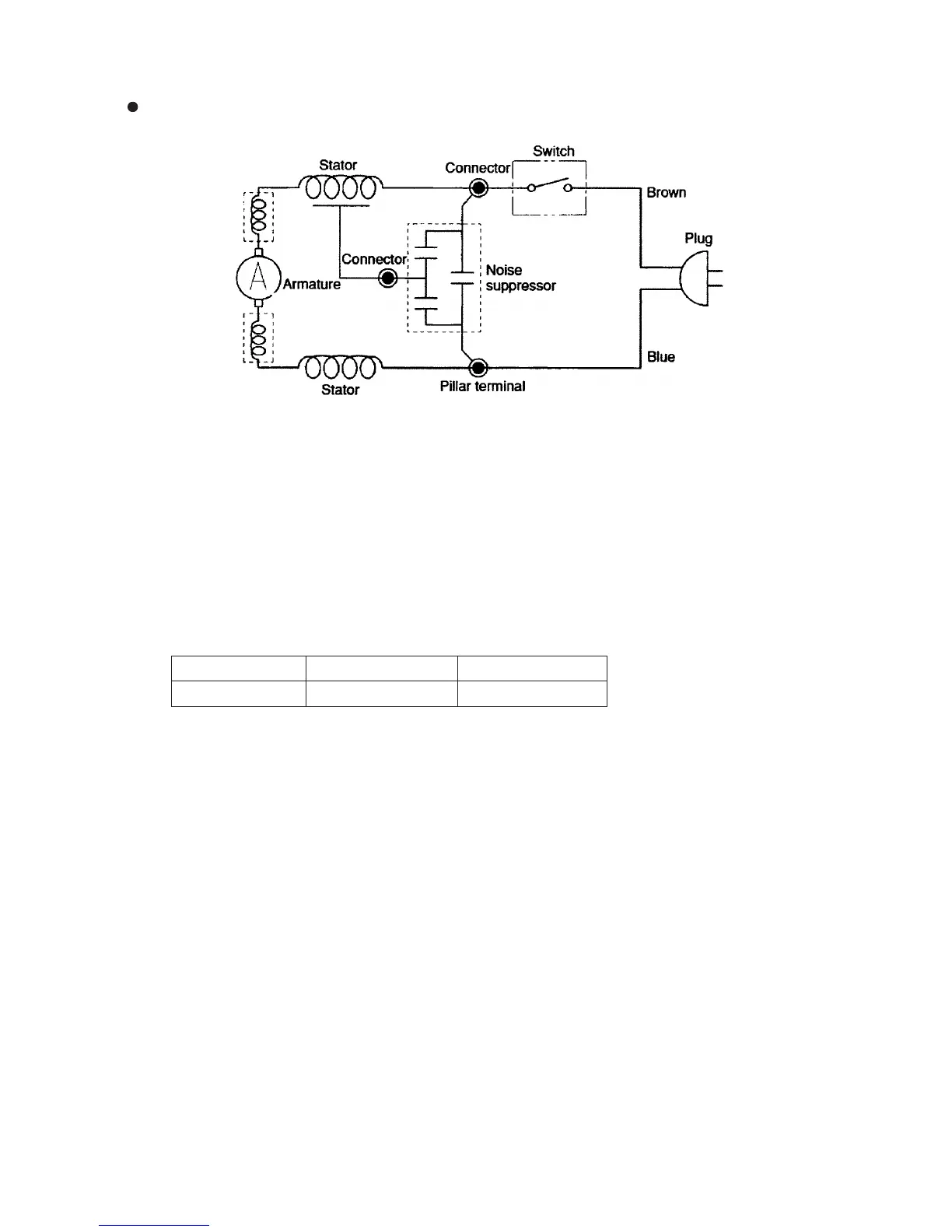

Wiring diagram for products with noise suppressor
Voltage (V)
Current (A) (Max.)
110
3.8
9-1-6. Insulation tests
On completion of disassembly and repair, measure the insulation resistance and the dielectric strength.
Insulation resistance: 7 M Ω or more with DC 500 V megohm tester
Dielectric strength: AC 4,000 V/1 minute, with no abnormalities
•••••••
220 V --- 240 V
(and 110 V for U.K. products)
9-1-7. No-load current value
After no-load operation for 30 minutes, the no-load current value should be as follows:
230
2.1
