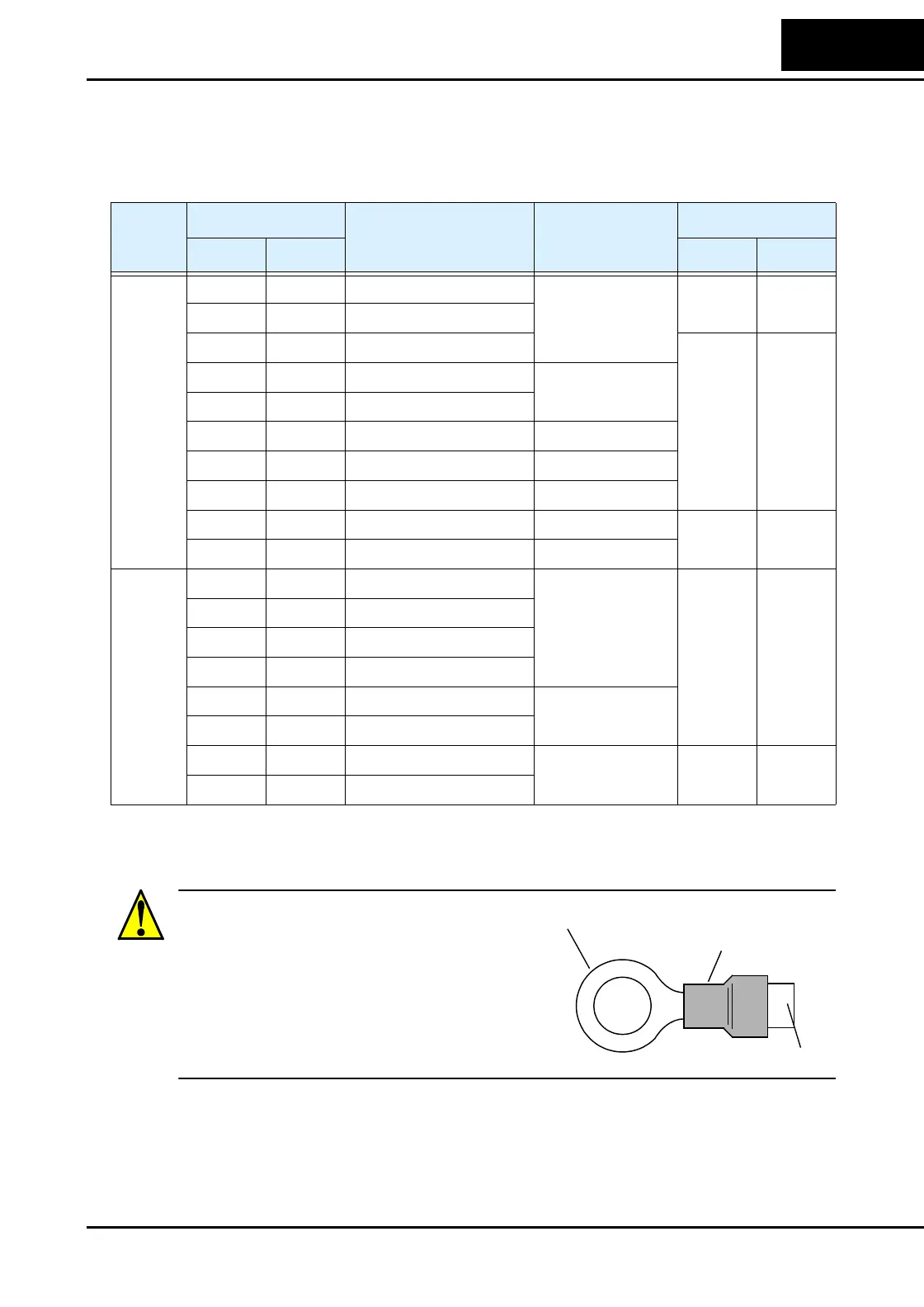

Terminal Tightening Torque and Wire Size
The wire size range and tightening torque for field wiring terminals are presented in the
table below.
Wire Connectors
WARNING: Field wiring connections must be
made by a UL Listed and CSA Certified ring lug
terminal connector sized for the wire gauge being
used. The connector must be fixed using the
crimping tool specified by the connector
manufacturer.
Input
Voltage
Motor Output
Inverter Model
Wiring Size
Range (AWG)
Torque
kW HP ft-lbs (N-m)
200V
0.2 1/4 L100-002NFE/NFU
16
0.6 0.8
0.4 1/2 L100-004NFE/NFU
0.55 3/4 L100-005NFE
0.9 1.2
0.75 1 L100-007NFE/NFU
14
1.1 1 1/2 L100-011NFE
1.5 2 L100-015NFE/NFU 12
2.2 3 L100-022NFE/NFU 10
3.7 5 L100-037LFU 12
5.5 7 1/2 L100-055LFU 10
1.5 2.0
7.5 10 L100-075LFU 8
400V
0.4 1/2 L100-004HFE/HFU
16
0.9 1.2
0.75 1 L100-007HFE/HFU
1.5 2 L100-015HFE/HFU
2.2 3 L100-022HFE/HFU
3.0 4 L100-030HFE
14
4.0 5 L100-040HFE/HFU
5.5 7 1/2 L100-055HFE/HFU
12 1.5 2.0
7.5 10 L100-075HFE/HFU
Cable
Terminal (ring lug)
Cable support
To Next Page
