PRODUCT SPECIFICATIONS (continued)

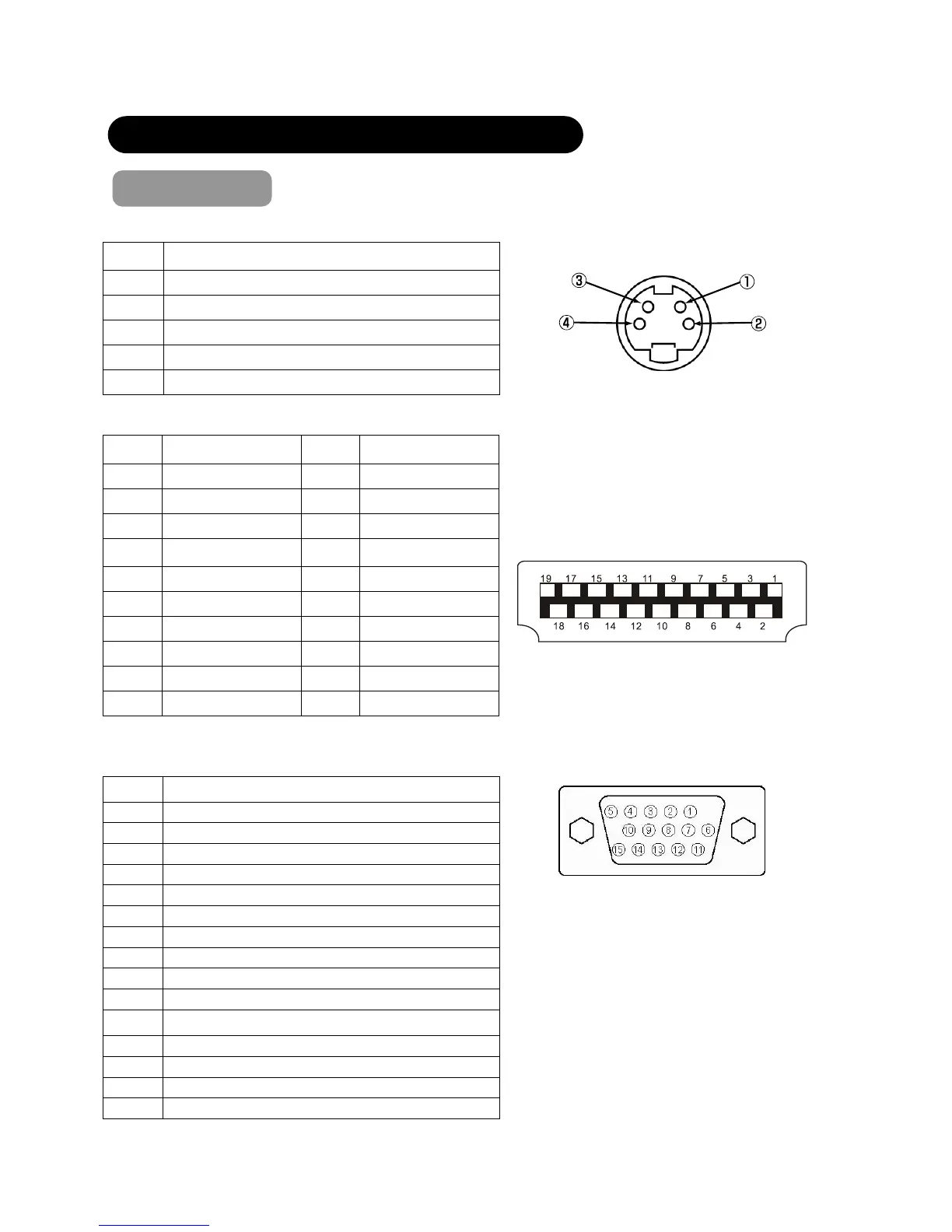

Signal Input
S-input connector pin specifications
Pin Input signal
1 Y
2 Y-GND
3 C
4 C-GND
Frame GND
HDMI connector Input pin specifications
Pin Input signal Pin Input signal
1 T.M.D.S. Data2+ 11 TMDS Clock Shield
2 T.M.D.S. Data2 12 TMDS Clock -
3 T.M.D.S. Data2- 13 CEC
4 T.M.D.S. Data1+ 14 Reserved (N.C.)
5 T.M.D.S. Data1 15 SCL
6 T.M.D.S. Data1- 16 SDA
7 T.M.D.S. Data0+ 17 DDC/CEC Ground
8 T.M.D.S. Data0 18 +5V Power
9 T.M.D.S. Data0- 19 Hot Plug Detect
10 T.M.D.S. Clock+
RGB terminal (D-sub 15-pin connector)
Pin Input signal
1 R
2 G
3 B
4 No connection
5 No connection
6 R.GND
7 G.GND
8 B.GND
9 No connection
10 GND
11 No connection
When different kinds of input signals are
simultaneously input to the television via a graphics
board or the like, the television only support H/V
separate sync signal.
12 [SDA]
13 H. sync
14 V.sync.
15 [SCL]
