FUNCTIONAL DESCRIPTION
NOTE:
The information contained in this Instruction Manual is designed to assist you in the
safe operation and maintenance of the power tool.
NEVER operate, or attempt any maintenance on the tool unless you have first read and
understood all safety instructions contained in this manual.
Some illustrations in this Instruction Manual may show details or attachments that differ
from those on your own power tool.

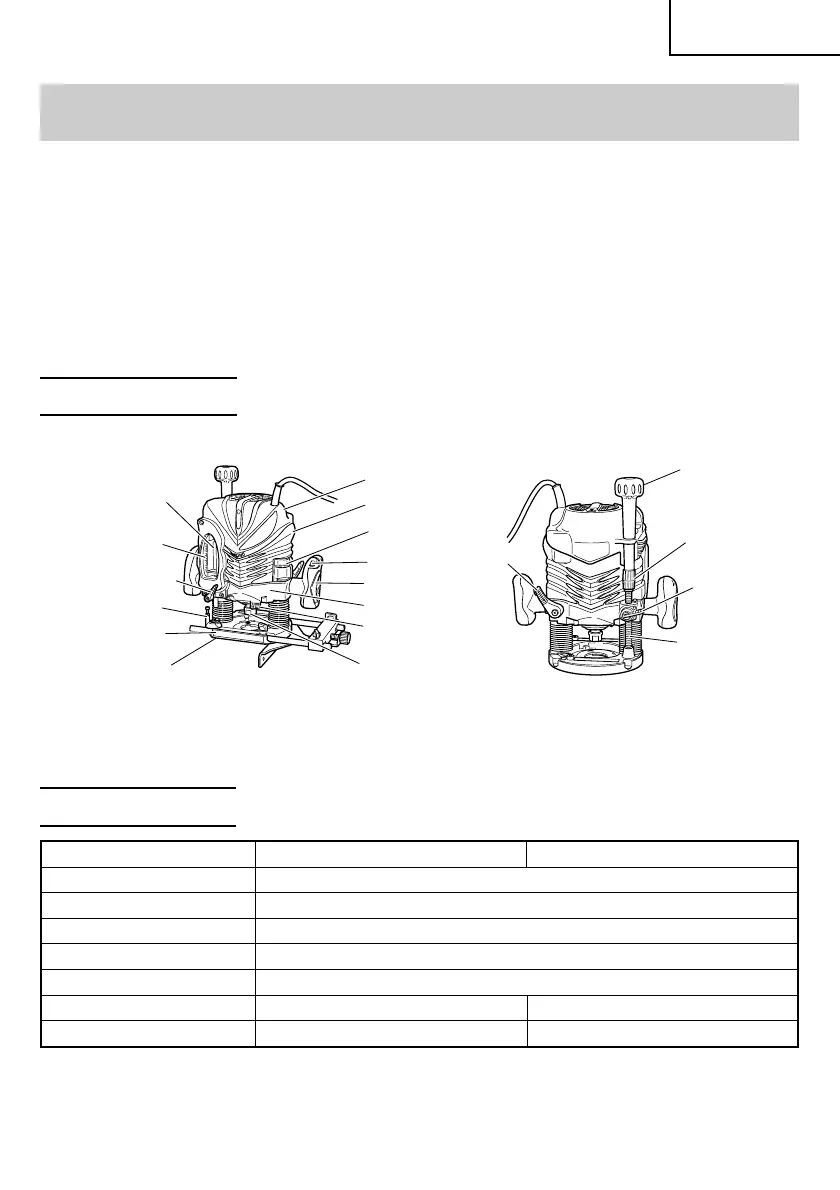

NAME OF PARTS
Fig. 1-1
Stopper pole
Scale
Pole lock knob
Stopper block
Base
Sub base
Head cover
Lock
lever
Knob
Fine adjustment
knob
Quick
adjustment
lever
Threaded
column
Housing
Lever
Dial
Handle
End bracket
Lock pin
Collet chuck
Fig. 1-2
SPECIFICATIONS
Model M12V2 M12SA2
Motor Single Phase, Series Commutator Motor
Power source Single Phase 120V AC 60 Hz
Collet chuck capacity 1/2” (12.7 mm), 1/4” (6.35 mm)
Main Body Stroke 2-9/16" (65mm)
Current 15 A
No-load speed 8,000/min – 22,000/min 22,000/min
Weight (without cord) 13.9 lbs (6.3 kg) 13.7 lbs (6.2 kg)

Hitachi M 12V2 Specifications

General

Input power	2000 W
Power source	AC
Soft grip	Yes
Product color	Black, Green
Collet capacity	12
Idle speed (max)	22000 RPM
Idle speed (min)	8000 RPM

Weight and Dimensions

Weight	6300 g
